Marine Double-row Medium Pressure Air-cooled Emergency Air Compressor

Marine Double-row Medium Pressure Air-cooled Emergency Air Compressor( 2ZFC-0.34/30-B )

The type of this marine air compressor is double-row, air-cooled and second stage compression piston type.The specified discharge pressure is 3.0 MPa.The displacement capacity is 0.34 m3/min(20.4 m3 / h).This kind of marine air compressor is especially suitable for making the ships operate reliably in emergency situations.It is necessary for ensuring that the ships¡¯ navigation is safe.The diesel-engine model is KM186F.

Product Features£º

HI-SEA marine air compressors has features of high efficiency,small volume,light weight,low noise and reliable operation,Meanwhile,the functions of manual or automatic stop,start,unloading and pressure relief are available.

The main engine of marine air compressor and the series products of CZC-20/30 type marine air compressor are general.It is equipped with a marine air-cooled diesel engine.The starting way is to pull the centrifugal clutch with hand.It is easy to operate.

Customers orders are available:

1. The two main engines¡¯ each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Specification:



Model

Displacement capacity

Specified
Pressure

Rotating
Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Weight

m3/h

m3/ min

MPa

r/min

kW

HP

mm

kg

2ZFC-0.34/30-B

20.4

0.34

3.0

600

Diesel-engine Model KM186F

1000¡Á500¡Á780

170

Starting way:pulling a centrifugal clutch by hand to start

(Note:More marine air compressors can be offered according to your special requests.)

Marine Double-row Medium Pressure Air-cooled Emergency Air Compressor

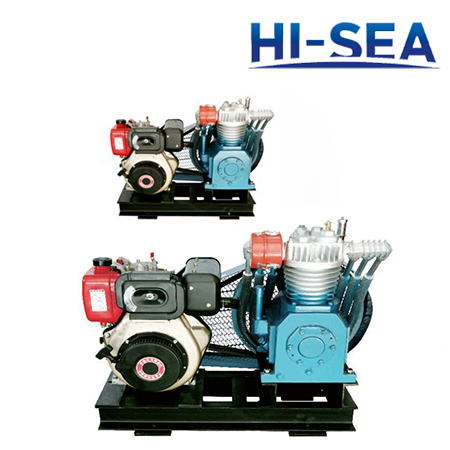

Picture of Marine Double-row Medium Pressure Air-cooled Emergency Air Compressor

Certificates:ABS,GL,NR,BV,CCS,etc. They can be offered along with marine air compressor.
