Marine Medium Pressure Air-cooled Series Air Compressor

Product Description:

Marine Medium Pressure Air-cooled Air Compressor is mainly used for starting the main engine of ships and vessels and various marine diesel engine.It has a single-row, double-row,V,W and the secondary compression piston type.Its displacement capacity is 5~60 m3/h.Its specified pressure is 3.0Mpa.Meanwhile,It has manual or automatic stop,start and unloading relief function.

HI-SEA offers you high quality marine middle pressure air compressors.Marine Medium Pressure Air-cooled Air Compressor can be customized according to customers¡¯ requirements.For any more information,welcome to contact us directly.Excellent service and is available.

You can find more Marine Medium Pressure Air-cooled Air Compressors:

Marine Single-row Medium Pressure Air-cooled Emergency Air Compressor

Marine Double-row Medium Pressure Air-cooled Emergency Air Compressor

Marine Single-row Medium Pressure Air-cooled Air Compressor

Marine Vertical Medium Pressure Air-cooled Air Compressor

Marine Horizontal Medium Pressure Air-cooled Air Compressor

Marine W-type Medium Pressure Air-cooled Air Compressor

Marine V-type Medium Pressure Air-cooled Air Compressor

Features of Marine Medium Pressure Air-cooled Air Compressor:

Its type has a single-row,double-row,V,W and the secondary compression piston type

With high efficiency,light weight,small volume, low noise, smooth operation

Displacement capacity: 5 ~ 60 m3 / h

The specified pressure: 3.0 MPa

With manual or automatic stop,start and unloading relief function

Fit for starting the main engine of ships and vessels and various marine diesel engine

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Main Techincal Specifications:



Model

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Weight

m3/h

m3/ min

MPa

r/min

kW

HP

mm

kg

CZ-5/30FZK

5

0.08

3.0

520

2.2

3

970¡Á480¡Á750

170

CZ-10/30FZK

10

0.17

500

3

4

970¡Á480¡Á750

175

CZ-20/30FZK

20

0.34

1000

5.5

7.5

970¡Á480¡Á750

200

2ZF-0.34/30-B

20.4

600

940¡Á500¡Á850

210

2ZF-0.34/30-B
(Vertical)

586¡Á520¡Á1020

185

CVF-30/30

30

0.5

500

7.5

10

1100¡Á650¡Á580

275

CVF-40/30

40

0.67

640

11

15

1100¡Á650¡Á580

300

CWF-60/30

60

1.0

650

15

20

1310¡Á714¡Á810

366

CZC-10/30F
£¨Emergency Air Compressor£©

10

0.17

500

Diesel-engine Model KM178F

970¡Á400¡Á700

140

Starting way:pulling a centrifugal clutch by hand to start

2ZFC-0.34/30-B
£¨Emergency Air Compressor£©

20.4

0.34

600

Diesel-engine Model KM186F

1000¡Á500¡Á780

170

Starting way:pulling a centrifugal clutch by hand to start

(Note: Marine medium pressure air cooling air compressors can be offered according to your special requests.)

Marine Medium Pressure Air-cooled Series Air Compressor Marine Medium Pressure Air-cooled Series Air Compressor

Marine Medium Pressure Air-cooled Series Air Compressor

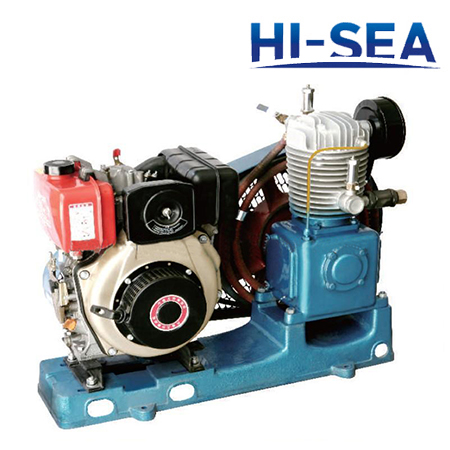

Marine Single-row Medium Pressure Air-cooled Emergency Air Compressor

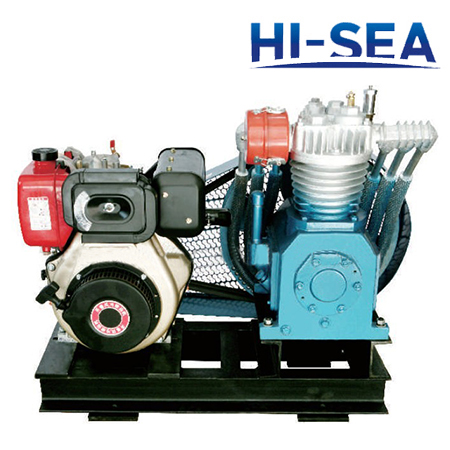

Marine Double-row Medium Pressure Air-cooled Emergency Air Compressor

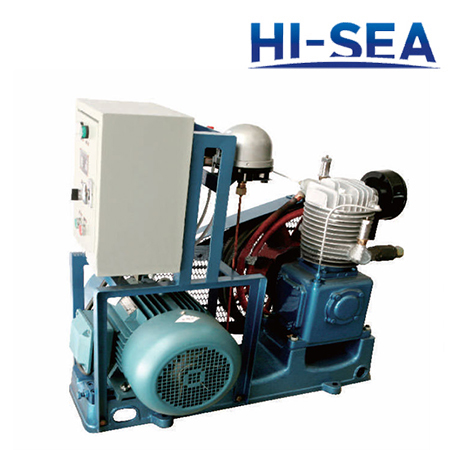

Marine Single-row Medium Pressure Air-cooled Air Compressor

Marine Medium Pressure Air-cooled Series Air Compressor Marine Medium Pressure Air-cooled Series Air Compressor Marine Medium Pressure Air-cooled Series Air Compressor

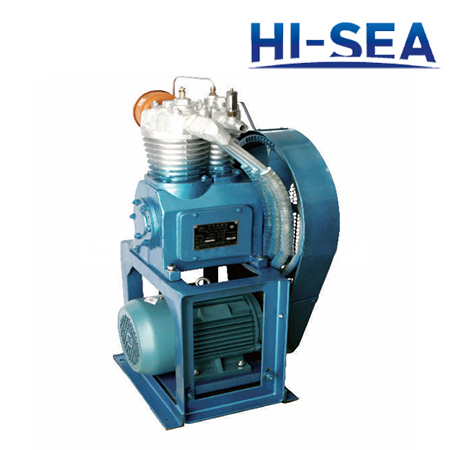

Marine Vertical Medium Pressure Air-cooled Air Compressor

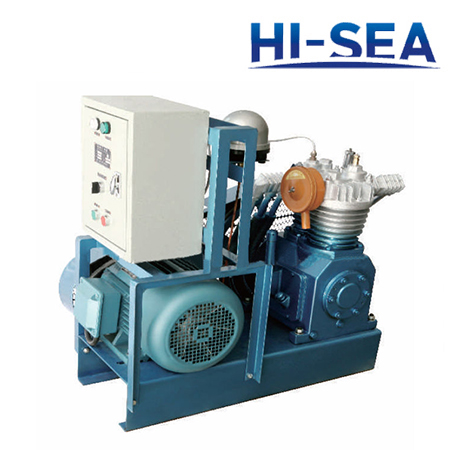

Marine Horizontal Medium Pressure Air-ccoled Air Compressor

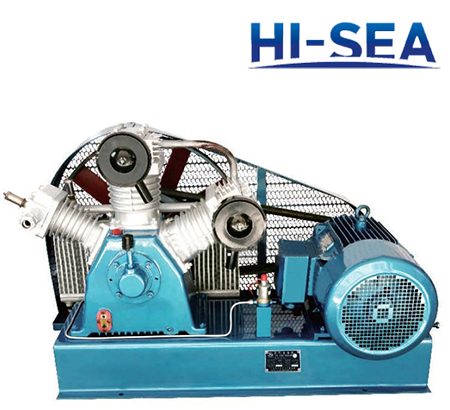

Marine W-type Medium Pressure Air-cooled Air Compressor

Marine Medium Pressure Air-cooled Series Air Compressor

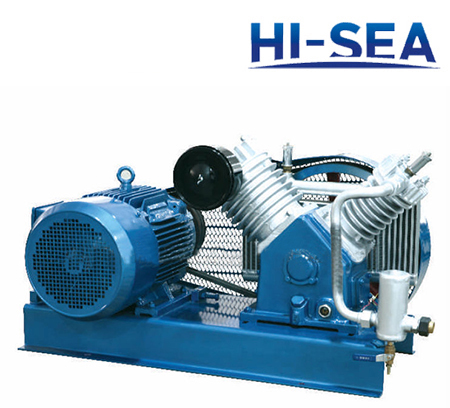

Marine V-type Medium Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,RINA,etc. They can be offered along with marine air compressor.
