Marine Medium Pressure Air Cooling Air Compressor CVF-43

Marine Medium Pressure Air Cooling Air Compressor CVF-43

CVF-43 marine air compressor is a kind of medium pressure air cooling air compressor.It is widely used for starting the engine of all kinds of ships.The displacement capacity is 30~44m3/h.The rotating speed is 1200~1800r/min.There are belt type and direct connection type.

We have professional technology and equipment.The design and manufacture are in accordance with the standard of ISO,IMO and various classification Societies.Classification Society Certificates are available,such as CCS,ABS,BV,RINA,GL,LR,etc.Therefore,HI-SEA can offer various marine air compressors,such as marine low pressure air-cooled air compressor,marine medium pressure air-cooled air compressor,marine medium pressure water-cooled air compressor,etc.

Our marine compressors can be available according to clients¡¯ specific requests.If you are interested in our marine compressors,please don not hesitate to contact us for any information.

Main Technical Specifications:



Model

Type

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Rotating Way

m3/h

MPa

r/min

kw

mm

CVF-43

V-type, air cooling,2 stage compression piston type

30

3.0

1200

7.5

1400¡Á700¡Á920

Belt or Direct Connection

36

1500

11

44

1800

11

(Note:It is suitable for ¨Q0.1¡«0.5m3 air bottle.The size of more marine medium pressure air cooling air compressors can be offered according to your special requests.)

Marine Medium Pressure Air Cooling Air Compressor CVF-43

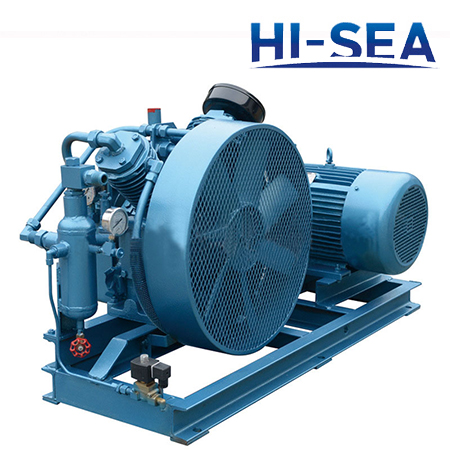

Direct Connection Type CVF-43 Marine Medium Pressure Air Cooling Air Compressor

Marine Medium Pressure Air Cooling Air Compressor CVF-43

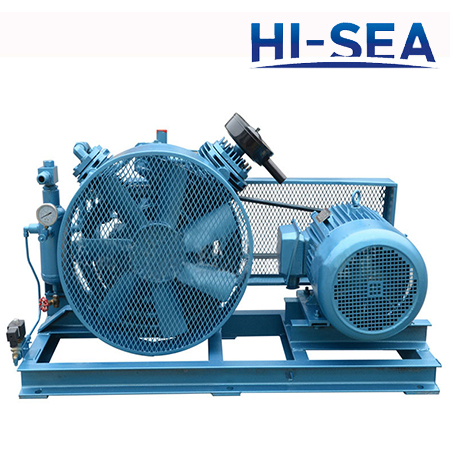

Belt Type CVF-43 Marine Medium Pressure Air Cooling Air Compressor(1)

Marine Medium Pressure Air Cooling Air Compressor CVF-43

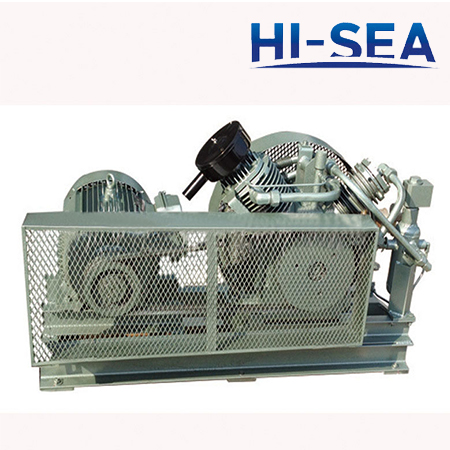

Belt Type CVF-43 Marine Medium Pressure Air Cooling Air Compressor(2)

Marine Medium Pressure Air Cooling Air Compressor CVF-43

Belt Type CVF-43 Marine Medium Pressure Air Cooling Air Compressor(3)

Certificates:ABS,GL,NK,BV,CCS,RINA,etc. They can be offered along with marine air compressor.
