CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor

[Search Related Products]

CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor

CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor

The displacement capacity of this marine air compressor is 40¡«60 m3/h.The rated pressure is 1.0 MPa. Its type is W,air cooled and two stage compression piston.This kind of marine air compressor has features of low noise,long service life and low energy consumption.It is fit for supplying air source for the ship whistle, oil and gas stove and auxiliary equipment.This marine air compressor is easy to repair.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Features:

Low noise,long service life,low energy consumption

Suitable for supplying air source for the ship whistle, oil and gas stove and auxiliary equipment,easy to repair
The product has a manual or automatic stop, start and unloading relief function

Main Technical Parameter:

Model

Displacement Capacity£¨m3/h£©

Specified
Pressure£¨MPa£©

Rotating
Speed£¨r/min£©

Motor Power

Dimension£¨L¡ÁW¡ÁH£©mm

Weight£¨kg£©

kW

HP

CWF¡ª40/1

40

1.0

780

5.5

7.5

1220¡Á560¡Á810

260

CWF¡ª60/1

60

720

11

15

1340¡Á660¡Á960

360

(Note:More marine air compressors can be offered according to your special requests.)

CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor

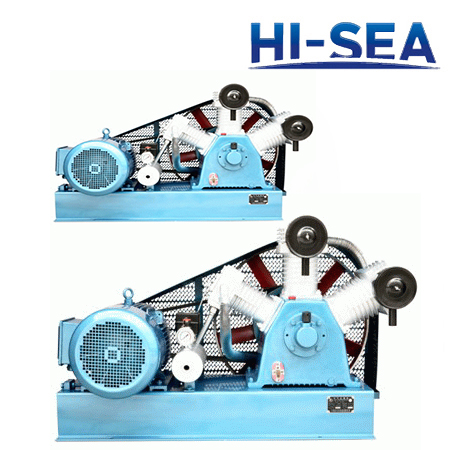

Picture of CWF-40/1 and CWF-60/1 Marine Low Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NR,BV,CCS,etc. They can be offered along with marine air compressor.
