CWF-20/1 Marine Low Pressure Air-cooled Air Compressor

[Search Related Products]

CWF-20/1 Marine Low Pressure Air-cooled Air Compressor

CWF-20/1 Marine Low Pressure Air-cooled Air Compressor

This kind of marine air compressor has features of low energy consumption,low noise and long service life.It is easy to repair.It is fit for supplying air source for the ship whistle, oil and gas stove and auxiliary equipment. Its displacement capacity is 20 m3/h.The rated pressure is 1.0 MPa.Its type is W,air cooled and two stage compression piston.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.

Features:

Low energy consumption,low noise,long service life

The product has a manual or automatic stop, start, and unloading relief function

Suitable for supplying air source for the ship whistle,oil and gas stove and auxiliary equipment,easy to repair


Main Technical Parameter:

Model

Displacement Capacity£¨m3/h£©

Specified
Pressure£¨MPa£©

Rotating
Speed£¨r/min£©

Motor Power

Dimension£¨L¡ÁW¡ÁH£©mm

Weight£¨kg£©

kW

HP

CWF¡ª20/1

20

1.0

720

3

4

900¡Á410¡Á665

138

(Note:More marine air compressors can be offered according to your special requests.)

CWF-20/1 Marine Low Pressure Air-cooled Air Compressor

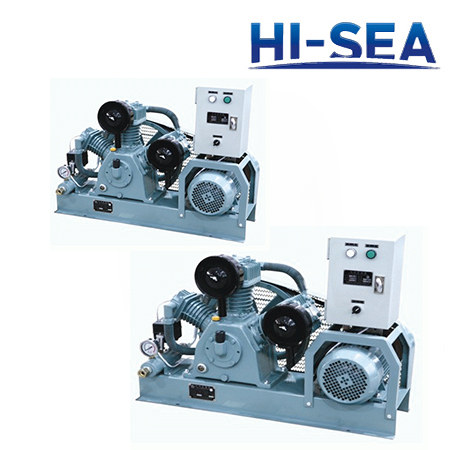

Picture of CWF-20/1 Marine Low Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
