CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor

[Search Related Products]
CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor

CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor

This type of this marine air compressor is W,air cooled and two stage compression piston.Its displacement capacity is 10 m3 / h.The rated pressure is 1.0 MPa.It is applicable to providing air source for the ship whistle, oil and gas stove and auxiliary equipment.

HI-SEA high-tech manufacture and considerate service will help decrease customers' operation and maintenance costs to reach the aim of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.

Features:

Small size

light weight

Low energy consumption

Low noise

Long service life

Easy to maintenance.


Main Technical Parameter:

Model

Displacement Capacity£¨m3/h£©

Specified
Pressure£¨MPa£©

Rotating
Speed£¨r/min£©

Motor Power

Dimension£¨L¡ÁW¡ÁH£©mm

Weight£¨kg£©

kW

HP

CWF¡ª10/1(Vertical type)

10

1.0Mpa

750

1.5

2

500¡Á400¡Á740

85

(Note:More marine air compressors can be offered according to your special requests.)

CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor

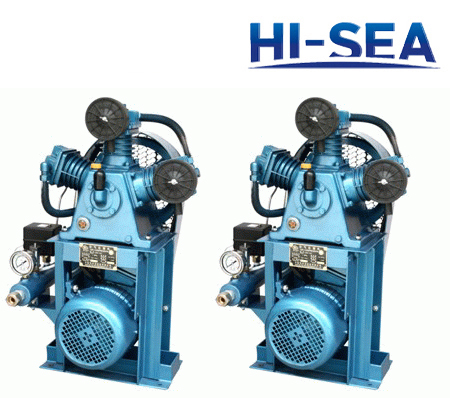

Picture of CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor. CWF-10/1 Marine Vertical Low Pressure Air-cooled Air Compressor
