LSHC Series Marine Air-cooled Air Compressor

[Search Related Products]

LSHC Series Marine Air-cooled Air Compressor


Product Description

LSHC Series Marine Air-cooled Air Compressor is mainly used for supplying air source for large ship emergency.Meanwhile,it is used for starting the main engine of small and medium size ships.Our LSHC series marine air compressor has features of high efficiency,compact structure,good cooling effect,light weight,small volume,low noise and reliable operation.


We are able to provide high quality marine air compressor.Our high-tech manufacture and considerate service will help minimize customers' operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection. If you are interested in our product,please feel free to contact us directly.


Certificates:BV,CCS,NK,GL,ABS,RINA,etc. They can be offered along with marine air compressor.


Main Technical Parameters:

Model

LSHC-20B

LSHC-30A

LSHC-40A

LSHC-50A

Type

Vertical,air-cooled,2stage compression

Number of cylinders

1

Cylinder diameter

One level(mm)

69.85

88.90

107.95

115

Second level(mm)

34.92

34.92

38.10

100

Piston stroke(mm)

50.80

76.20

76.20

76.20

Rated pressure(MPa)

3.0

Rotating speed(r/min)

1000

870

970

1170

1460

Elastic horizontal straight coupling drive unit

Direct drive or belt/strap drive

Capacity(m3/h)

5

(4.5)

13.5

(12)

20

(18)

25

30

36

45

Motor power(kw)

1.6

4.0

5.5

7.0

7.3

9.0

10.4

Dimension(mm)

670กม450กม470

1140กม520กม810

1020กม580กม900

1180กม680กม900

Weight(kg)

130

280

280

300

300

320

320

(Note:Our Marine Air Compressor can be customized according to clients' special requirements.)

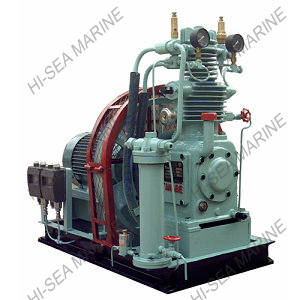

Picture of LSHC Series Marine Air-cooled Air Compressor



Certificates:LSHC Series Marine Air-cooled Air Compressor
