SHC-55A Marine Water Cooling Air Compressor

SHC-55A Marine Water Cooling Air Compressor

This series of marine air compressor is vertical, water-cooled and secondary compression type.This kind of marine air compressor has features of perfect cooling and balanced pressure.The pump pressure can be adjusted.The air compressor can reliably work under the specific marine conditions.

The automatic control system can be equipped according to the customers’ requirements.Automatic control functions are: automatic starting, automatic stop, automatic unloading, low oil pressure alarm, exhaust temperature ultra-high alarm, etc.

Our high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the goal of high efficiency, reliability,energy-saving and environmental protection. Please feel free to contact us directly if you are interested in our products.

Features:

Good balance

Little vibration

Low noise

Reliable operation

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.

Specifications:

Model	Type	Displacement capacity（m³/h）	Specified pressure(Mpa)	Rotating speed(r/min)	Motor power(kw)	Weight(kg)	Overall size (L*W*H)（mm）
SHC-55A	Vertical,water-cooled,2stage compression piston type	42	3.0	730	11	310	1200*680*1050
		50		870	15	330
		60		960	15	330

(Note:Apply to 0.5m³~1.0m³ air bottle.HI-SEA marine air compressor can be customized according to clients' special requirements.)

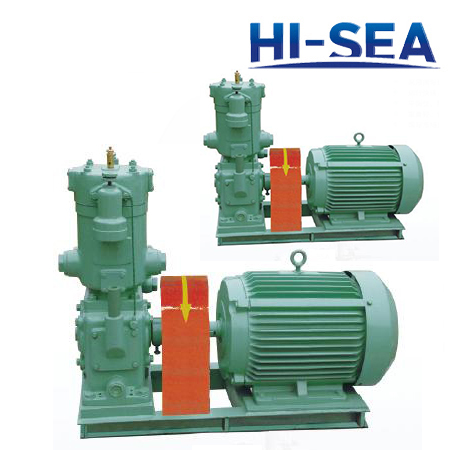

Picture of SHC-55A Marine Water Cooling Air Compressor

Certificates:
