Marine Single-row Medium Pressure Water-cooled Air Compressor

[Search Related Products]

Marine Single-row Medium Pressure Water-cooled Air Compressor

Marine Single-row Medium Pressure Water-cooled Air Compressor CZ-20/30SZK

CZ-20/30SZK marine water-cooled air compressor is mainly used for starting the main engine of ships and various medium-sized diesel engines.Its type is single-row,water-cooled and second stage compression piston type.The drive way is belt drive.Direct connection drive type is also available.The displacement capacity is 20 m3/h.The rated pressure is 3.0 Mpa. It is automatic control unit.

HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Product Features:

Low noise,simple structure,high efficiency,light weight

Small volume,reliable operation,low exhaust temperature

These functions as follow are available according to clients¡¯ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Main Technical Parameter:

Model

Displacement Capacity

Specified
Pressure£¨MPa£©

Rotating
Speed£¨r/min£©

Motor Power

Dimension£¨L¡ÁW¡ÁH£©mm

Weight£¨kg£©

m3/h

m3/ min

kW

HP

CZ¡ª20/30SZK(Direct connection)

20

0.34

3.0

960

5.5

7.5

900¡Á600¡Á850

250

CZ¡ª20/30SZK

1000

1070¡Á490¡Á810

225

(Note:More marine air compressors can be offered according to your special requests.)

Marine Single-row Medium Pressure Water-cooled Air Compressor

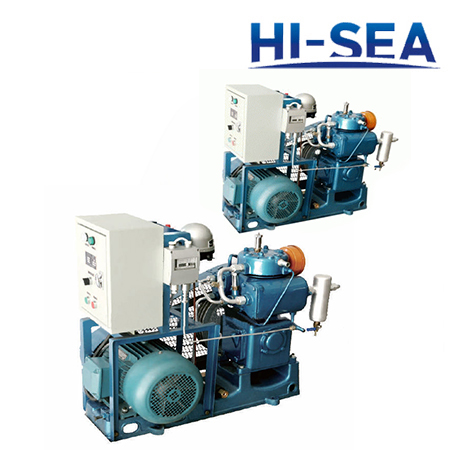

Picture of Marine Single-row Medium Pressure Water-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.

Marine Single-row Medium Pressure Water-cooled Air Compressor
