Marine Horizontal Medium Pressure Air-cooled Air Compressor

2ZF-0.34/30-B Marine Horizontal Medium Pressure Air-cooled Air Compressor

This marine medium pressure air-cooled air compressor is horizontal type.The model is 2ZF-0.34/30-B.It is mainly used for starting the main engine of the ships and various medium-sized diesel engine.It has features of smooth operation,low noise and high efficiency.

The type of this marine air compressor is double-row,air-cooled and 2 stage compression piston type.The displacement capacity is 0.34 m3/min(20.4 m3/h).The specified discharge pressure is 3.0 MPa.

HI-SEA offers you high quality marine middle pressure air compressors. For any more information,welcome to contact us directly.Wonderful service and is available.

Product features:

Smooth operation,high efficiency and low noise

Especially suitable for starting the main engine of ships and various medium-sized diesel engine

These functions as follow are available according to clients’ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Specification:

Model	Displacement capacity		Specified Pressure	Rotating Speed	Motor Power		Dimension（L×W×H）	Weight
Model	m3/h	m3/ min	MPa	r/min	kW	HP	mm	kg
2ZF-0.34/30-B	20.4	0.34	3.0	600	5.5	7.5	940×500×850	210

(Note:More marine air compressors can be offered according to your special requests.)

Marine Horizontal Medium Pressure Air-cooled Air Compressor

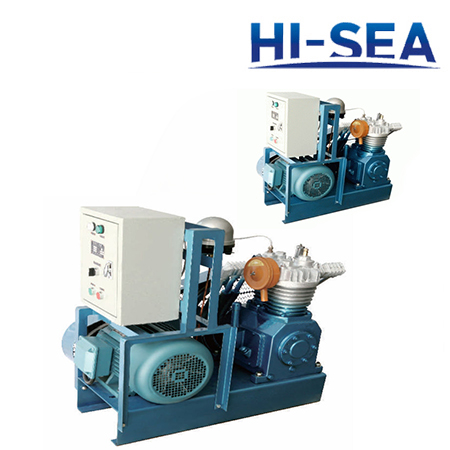

Picture of Marine Horizontal Medium Pressure Air-cooled Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
