Marine Piston Type Medium Pressure Air Cooling Air Compressor CVF-53

[Search Related Products]

Marine Piston Type Medium Pressure Air Cooling Air Compressor CVF-53

Marine Piston Type Medium Pressure Air Cooling Air Compressor CVF-53

CVF-53 marine piston type air compressor is also a kind of medium pressure air cooling air compressor.The type is V-type,air-cooled and secondary compression piston type.The displacement capacity is 60~88m3/h.The motor power is 15~18.5kw.There are direct connection type and belt type.It is widely used for starting the engine of all kinds of vessels.

Our company adopts professional technology and equipment.The design and manufacture conform to the standard of ISO,IMO and different classification Societies.Classification Society Certificates are available,such as CCS,ABS,BV,RINA,GL,LR,etc.Therefore,HI-SEA can offer marine low pressure air-cooled air compressor,marine medium pressure air-cooled air compressor,marine medium pressure water-cooled air compressor,etc.

Our marine compressors can be available according to clients¡¯ specific requests.For any more information,please don not hesitate to contact us directly.

Main Technical Specifications:



Model

Type

Displacement capacity

Specified Pressure

Rotating Speed

Motor Power


Dimension£¨L¡ÁW¡ÁH£©


Rotating Way

m3/h

MPa

r/min

kw

mm

CVF-53

V-type, air cooling,2 stage compression piston type

60

3.0

1200

15

1400¡Á700¡Á920

Belt rotation or Direct Connection rotation

74

1500

18.5

88

1800

18.5

(Note:It is suitable for ¨Q0.1¡«1.8m3 air bottle.The size of more marine medium pressure air cooling air compressors can be offered according to your specific requests.)

Marine Piston Type Medium Pressure Air Cooling Air Compressor CVF-53

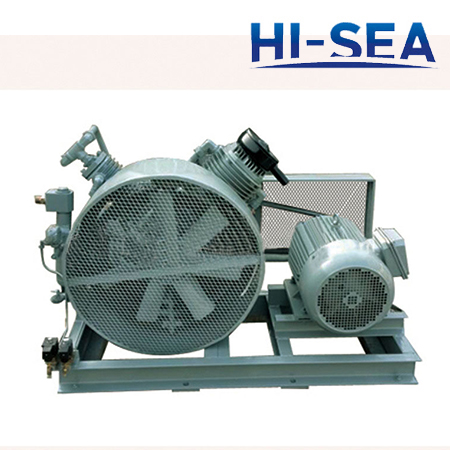

Direct Connection Type CVF-53 Marine Piston Type Medium Pressure Air Cooling Air Compressor

Marine Piston Type Medium Pressure Air Cooling Air Compressor CVF-53

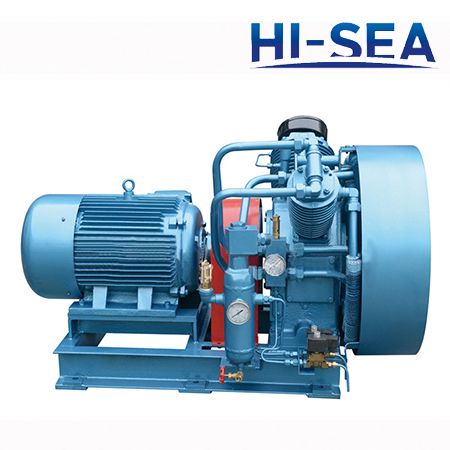

Belt Type CVF-53 Marine Piston Type Medium Pressure Air Cooling Air Compressor

Certificates:ABS,GL,NK,BV,CCS,RINA,etc. They can be offered along with marine air compressor.

Marine Piston Type Medium Pressure Air Cooling Air Compressor CVF-53
