HI-SEA provides marine air-cooled series air compressor and marine water-cooled series air compressor.Marine air compressor mainly includes two series.They are air-cooled series and water-cooled series.Their standard electric system is 50HZ,380V and 60HZ,440V.Our two series marine air compressor has reliable pressure lubrication system.Varieties of monitoring measures ensure the operation safety.

Our two series marine air compressor is approved by various classification societies,such as CCS, LRS,ABS, GL, BV and DNV,RINA,etc.Therefore,high quality products will be offered.Our products can be customized according to your special requests.For any more information,please do not hesitate to contact us directly.Excellent service is available.

Specifications of Air-cooled Series of Marine Air Compressor:

(50HZ,380V):

Model	Capacity (m3/h)	Discharge pressure (MPa)	Motor		Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
Model	Capacity (m3/h)	Discharge pressure (MPa)	Power(kw)	Voltage(V)	Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
WP18L	18	3.0	5.5	380	Direct coupling	Air cooling	845×640×564	66
WP25L	24.5	3.0	7.5	380	Direct coupling	Air cooling	870×640×632	67
WP32L	31.5	3.0	7.5	380	Direct coupling	Air cooling	884×640×632	67
WP250L	225	3.0	55	380	Direct coupling	Air cooling	1617×930×1085	924
WP80L	80	3.0	15	380	Direct coupling	Air cooling	1310×780×830	330
WP100L	99	3.0	20	380	Direct coupling	Air cooling	1362×880×1007	450

(60HZ,440V):

Model	Capacity (m3/h)	Discharge pressure(MPa)	Motor		Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
Model	Capacity (m3/h)	Discharge pressure(MPa)	Power(kw)	Voltage(V)	Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
WP18L	14.3	3.0	5.5	440	Direct coupling	Air cooling	845×640×564	66
WP25L	20.0	3.0	7.5	440	Direct coupling	Air cooling	870×640×632	67
WP32L	25.0	3.0	7.5	440	Direct coupling	Air cooling	884×640×632	67
WP250L	180	3.0	55	440	Direct coupling	Air cooling	1617×930×1085	924

Specifications of Water-cooled Series of Marine Air Compressor:

(50HZ,380V):

Model	Capacity (m3/h)	Discharge pressure (MPa)	Motor		Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
Model	Capacity (m3/h)	Discharge pressure (MPa)	Power(kw)	Voltage(V)	Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
WP60	84	3.0	18.5	380	Direct coupling	Water cooling	1322×671×1051	650
WP110	91	3.0	22	380	Direct coupling	Water cooling	1425×845×1370	970
WP135	118	3.0	30	380	Direct coupling	Water cooling	1465×840×1370	1000
WP160	141	3.0	30	380	Direct coupling	Water cooling	1520×920×1420	1010
WP185	162	3.0	37	380	Direct coupling	Water cooling	1520×920×1420	1000
WP220	191	3.0	45	380	Direct coupling	Water cooling	1975×951×1639	1400
WP270	248	3.0	55	380	Direct coupling	Water cooling	1975×850×1568	1400
WP320	294	3.0	63	380	Direct coupling	Water cooling	1975×951×1568	1400
WP370	344	3.0	75	380	Direct coupling	Water cooling	2120×985×1598	1400
1-0.433/60	26	6.0	11	380	Belt Rotation	Water cooling	1170×700×1220	670
CZ-60/30	60	3.0	18.5	380	Direct coupling	Water cooling	1500×535×1200	900

(60HZ,440V):

Model	Capacity (m3/h)	Discharge pressure(MPa)	Motor		Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
Model	Capacity (m3/h)	Discharge pressure(MPa)	Power(kw)	Voltage(V)	Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
WP60	68	3.0	18.5	440	Direct coupling	Water cooling	1282×671×1051	650
WP110	110	3.0	30	440	Direct coupling	Water cooling	1425×725×1458	970
WP135	142	3.0	30	440	Direct coupling	Water cooling	1465×725×1458	1000
WP160	170	3.0	37	440	Direct coupling	Water cooling	1465×840×1458	1100
WP185	195	3.0	45	440	Direct coupling	Water cooling	1465×840×1458	1100
WP220	230	3.0	55	440	Direct coupling	Water cooling	1975×910×1639	1400
WP270	300	3.0	63	440	Direct coupling	Water cooling	1975×910×1638	1400
WP320	355	3.0	75	440	Direct coupling	Water cooling	2120×910×1598	1400
WP370	415	3.0	90	440	Direct coupling	Water cooling	2120×910×1598	1400

(Note:The specifications above are for reference.For more marine air compressors,please feel free to contact us.)

Marine Air-cooled Series and Water-cooled Series Air Compressor

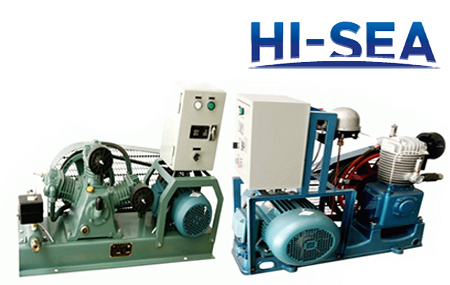

Air-cooled Series Marine Air Compressor

Marine Air-cooled Series and Water-cooled Series Air Compressor

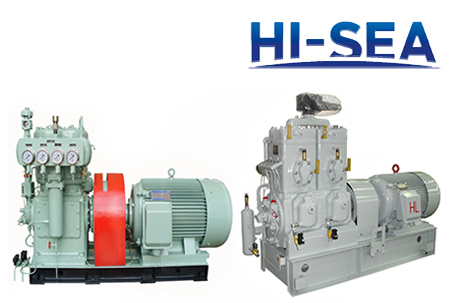

Water-cooled Series Marine Air Compressor

Certificates:
