Marine Single-row Medium Pressure Air-cooled Emergency Air Compressor

Marine Single-row Medium Pressure Air-cooled Emergency Air Compressor( CZC-10/30F )

The type of this marine air compressor is single-row, air-cooled and secondary compression piston type.The displacement capacity is 10 m3 / h.The specified discharge pressure is 3.0 MPa.This kind of marine air compressor is especially suitable for making the ships operate reliably in emergency situations.It is necessary for ensuring that the ships’ navigation is safe.The diesel-engine model is KM178F.

Product features:

The main engine of marine air compressor and the series products of CZC-20/30 type marine air compressor are general.It is equipped with a marine air-cooled diesel engine.The starting way is to pull the centrifugal clutch with hand.It is easy to operate.

HI-SEA marine air compressors has features of high efficiency,light weight,small volume,low noise and reliable operation,Meanwhile,the functions of manual or automatic stop,start,unloading and pressure relief are available.

Customers orders are available:

1. The two main engines’ each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Main Specification：

Model	Displacement capacity		Specified Pressure	Rotating Speed	Motor Power		Dimension（L×W×H）	Weight
	m3/h	m3/ min	MPa	r/min	kW	HP	mm	kg
CZC-10/30F	10	0.17	3.0	500	Diesel-engine Model KM178F		970×400×700	140
							Starting way:pulling a centrifugal clutch by hand to start

(Note:More marine air compressors can be offered according to your special requests.)

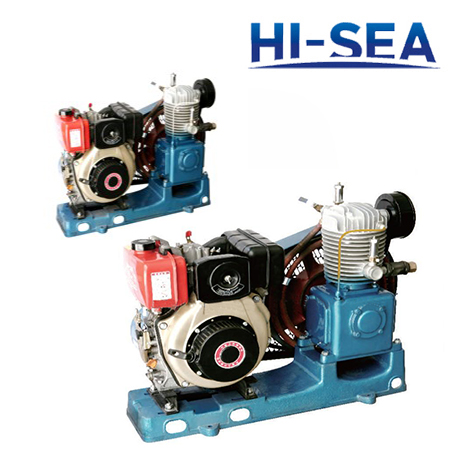

Picture of Marine Single-row Medium Pressure Air-cooled Emergency Air Compressor

Certificates:ABS,GL,NK,BV,CCS,etc. They can be offered along with marine air compressor.
