American Standard Steel Angles
American standard steel angles are a kind of steel sections. They are often used for good structural support, such as shipbuilding, shelves, brackets, trailers, carts... The steel angles are manufactured according to the requirements of American Society for Testing Material. We are capable of providing a full selection of steel grades and dimensions. If you have any specific requirements, we will try our best to satisfy you. We are professional supplier of marine equipment, including marine deck equipment, marine outfitting equipment, marine navigation equipment, marine kitchen equipment, marine steel... As for marine steel, we are able to provide marine steel plates certified by leading classification societies, marine steel sections, marine pipes. We provide one-stop service for you. If you are interested in our products, welcome to inquiry!
Features
• To meet the requirements of American Society for Testing Material
• Made of high quality steel
• A wide range of materials and dimensions
• Standard-sized, tiny tolerances, high reliability
• Suitable for structural support

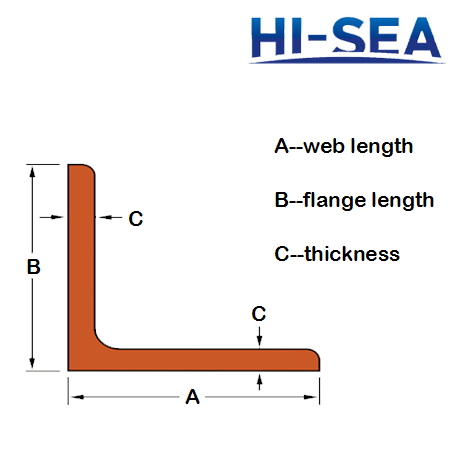

Profile of American Standard Steel Angles
Dimensions of American Standard Steel Angles
A Size In Inch |
B Size In Inch |
C Size In Inch |
Wt. In Lbs. Per Ft. |
3กม |
2กม |
3/16 1/4 5/16 3/8 |
3.07 4.10 5.00 5.90 |
3กม |
2 1/2กม |
3/16 1/4 5/16 3/8 |
3.30 4.50 5.60 6.60 |
3กม |
3กม |
3/16 1/4 5/16 3/8 1/2 |
3.70 4.90 6.10 7.20 9.40 |
3 1/2กม |
2 1/2กม |
1/4 5/16 3/8 |
4.90 6.10 7.20 |
3 1/2กม |
3กม |
1/4 5/16 3/8 1/2 |
5.40 6.60 7.90 10.20 |
3 1/2กม |
3 1/2กม |
1/4 5/16 3/8 1/2 |
5.80 7.20 8.50 11.10 |
4กม |
3กม |
1/4 5/16 3/8 1/2 |
5.80 7.20 8.50 11.10 |
4กม |
3 1/2กม |
1/4 5/16 3/8 1/2 |
6.20 7.70 9.10 11.90 |
4กม |
4กม |
1/4 5/16 3/8 1/2 |
6.60 8.20 9.80 12.80 |
5กม |
3กม |
1/4 5/16 3/8 1/2 |
6.60 8.20 9.80 12.80 |
5กม |
3 1/2กม |
1/4 5/16 3/8 1/2 |
7.0 8.7 10.4 13.6 |
5กม |
5กม |
5/16 3/8 1/2 |
9.8 11.7 15.3 |
6กม |
3 1/2กม |
5/16 3/8 1/2 |
9.8 11.7 15.3 |
6กม |
4กม |
5/16 3/8 1/2 5/8 3/4 |
10.3 12.3 16.2 20.0 23.6 |
6กม |
6กม |
5/16 3/8 1/2 5/8 3/4 1 |
12.4 14.9 19.6 24.2 28.7 37.4 |
7กม |
4กม |
3/8 1/2 3/4 |
13.6 17.9 26.2 |
8กม |
4กม |
1/2 3/4 |
19.6 28.7 |
8กม |
6กม |
1/2 3/4 1 |
23.0 33.8 44.2 |
8กม |
8กม |
1/2 5/8 3/4 1 |
26.4 32.7 38.9 51.0 |
Note |
If you want to know other dimensions, please contact us |
