Unequal Leg and Thickness Angles

[Search Related Products]

Unequal Leg and Thickness Angles

Unequal Leg and Thickness Angles

The unequal leg and thickness angles are a kind of special steel angles which are with unequal legs and different thickness of walls. They are also known as ¡°L-section steel¡±. They are often used for shipbuilding. Compared with bulb flats, the unequal leg and thickness angles have larger section modulus and rigidity. What¡¯s more, under the condition of same section modulus, the unequal leg and thickness angles can increase the loading and economic benefits. They are described by both leg length (longer first) and the both wall thickness (thinner first), eg. L250¡Á90¡Á9¡Á13. In addition to shipbuilding, the unequal leg and thickness angles can be used for bridges, power transmission towers, beams... We are capable of supplying a wide range of steel grades and dimensions of the angles. If you are interested in our unequal leg and thickness angles, welcome to contact us.

Features

• Made of structural steel

• Full selection of steel grades, such as grade A, B, D, E, Q235, Q275...

• In line with GB/T 706-2008 or JIS G3192-2008

• Standard-sized, well-shaped, reliable

• A wide range of dimensions

Unequal Leg and Thickness Angles

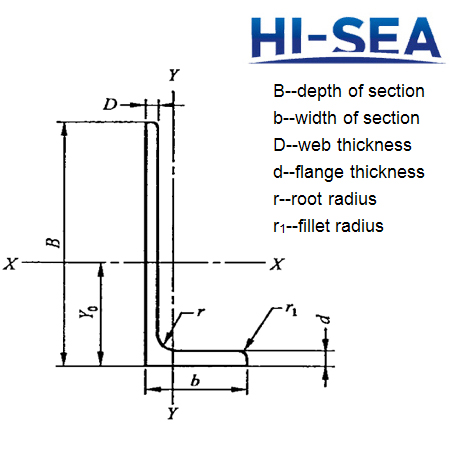

Profile of Unequal Leg and Thickness Angles

Dimensions of Unequal Leg and Thickness Angles

Type

Sectional Dimension (mm)

B

b

D

d

r

r1

L250¡Á90¡Á9¡Á13

250

90

9

13

15

7.5

L250¡Á90¡Á10.5¡Á15

10.5

15

L250¡Á90¡Á11.5¡Á16

11.5

16

L300¡Á100¡Á10.5¡Á15

300

100

10.5

15

L300¡Á100¡Á11.5¡Á16

11.5

16

L350¡Á120¡Á10.5¡Á16

350

120

10.5

16

20

10

L350¡Á120¡Á11.5¡Á18

11.5

18

L400¡Á120¡Á11.5¡Á23

400

120

11.5

23

L450¡Á120¡Á11.5¡Á25

450

120

11.5

25

L500¡Á120¡Á12.5¡Á33

500

120

12.5

33

L500¡Á120¡Á13.5¡Á35

13.5

35

Tolerance on Dimensions

Project

Allowable Deviation

Illustration

Width (B, b)

¡À4.0

Unequal Leg and Thickness Angles

Thickness

Thickness (D)

+1.6

-0.4

Thickness (d)

¡Ü20

+2.0

-0.4

>20~30

+2.0

-0.5

>30~35

+2.5

-0.6


Unequal Leg and Thickness Angles

Unequal Leg and Thickness Angles

Unequal Leg and Thickness Angles

Unequal Leg and Thickness Angles

Unequal Leg and Thickness Angles
