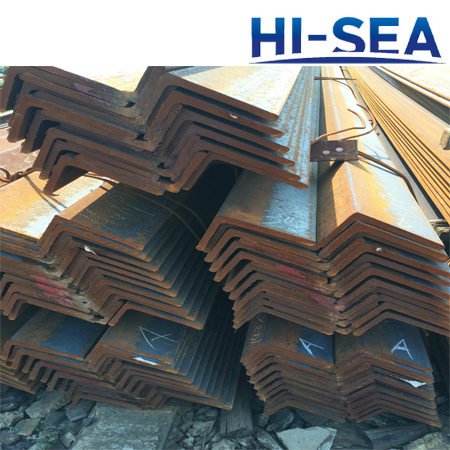

Steel angles are widely used for structural support, such as shipbuilding, bridges, brackets, trailers, carts... The steel angles are also known as “L-shapes”. There are three types of steel angles: equal leg angles, unequal leg angles, unequal and thickness angles. The Chinese standard unequal leg angles are a sort of unequal leg angles produced by Chinese top steel mills meeting the requirements of GB/T 706-2008. They can be made of following steel: CCSA, CCSB, CCSD, CCSE, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40, Q235, Q345... We provide you a wide range of dimensions. If you have any specific requirements, we are able to customize products for you. Besides, we provide other steel angles, such as stainless steel angles, galvanized steel angles, shipbuilding steel angles, American standard steel angles, European standard steel angles... More dteails, welcome to contact us!

Features of Chinese Standard Unequal Leg Angles

• High quality, trustworthy products

• A full selection of materials, such as marine steel, carbon structural steel, high strength low alloy structural steel...

• A wide range of dimensions,with the range of L2.5/1.6#~L20/12.5#

• Produced by excellent steel mills with strict quality management

• Precision-made, reliable, economical

Profile of Chinese Standard Unequal Leg Angles

Dimensions of Chinese Standard Unequal Leg Angles

Model	Sectional dimensions mm				Sectional Area cm2	Nominal Weight kg/m
Model	B	b	d	r	Sectional Area cm2	Nominal Weight kg/m
2.5/1.6	25	16	3	3.5	1.162	0.912
2.5/1.6	25	16	4		1.499	1.176
3.2/2	32	20	3		1.492	1.171
3.2/2	32	20	4		1.939	1.522
4/2.5	40	25	3	4	1.890	1.484
4/2.5	40	25	4	4	2.467	1.936
4.5/2.8	45	28	3	5	2.149	1.687
4.5/2.8	45	28	4	5	2.806	2.203
5/3.2	50	32	3	5.5	2.431	1.908
5/3.2	50	32	4	5.5	3.177	2.494
5.6/3.6	56	36	3	6	2.743	2.153
			4		3.590	2.818
			5		4.415	3.466
6.3/4	63	40	4	7	4.058	3.185
			5		4.993	3.920
			6		5.908	4.638
			7		6.802	5.339
7/4.5	70	45	4	7.5	4.547	3.570
			5		5.609	4.403
			6		6.647	5.218
			7		7.657	6.011
7.5/5	75	50	5	8	6.125	4.408
			6		7.260	5.699
			8		9.467	7.431
			10		11.590	9.098
8/5	80	50	5		6.375	5.005
			6		7.560	5.935
			7		8.724	6.848
			8		9.867	7.745
9/5.6	90	56	5	9	7.212	5.661
			6		8.557	6.717
			7		9.880	7.756
			8		11.183	8.779
10/6.3	100	63	6	10	9.617	7.550
			7		11.111	8.722
			8		12.534	9.878
			10		15.467	12.142
10/8	100	80	6		10.637	8.350
			7		12.301	9.656
			8		13.944	10.946
			10		17.167	13.467
11/7	110	70	6		10.637	8.350
			7		12.301	9.656
			8		13.944	10.946
			10		17.167	13.476
12.5/8	125	80	7	11	14.096	11.066
			8		15.989	12.551
			10		19.712	15.474
			12		23.351	18.330
14/9	140	90	8	12	18.038	14.160
			10		22.261	17.475
			12		26.400	20.724
			14		30.456	23.908
15/9	150	90	8		18.839	14.788
			10		23.261	18.260
			12		27.600	21.666
			14		31.856	25.007
			15		33.952	26.652
			16		36.027	28.281
16/10	160	100	10	13	25.315	19.872
			12		30.054	23.592
			14		34.709	27.247
			16		29.281	30.835
18/11	180	110	10	14	28.373	22.273
			12		33.712	26.440
			14		38.967	30.589
			16		44.139	34.649
20/12.5	200	125	12		37.912	29.761
			14		43.687	34.436
			16		49.739	39.045
			18		55.526	43.588
Note	The length of unequal angles can be customized. If you have any specific requirements, please contact us.
