Marine Steel Parallel Flange Channels
Steel channels are a kind of finished long steel products with a solid U-shaped metal section produced with various steel grades. The marine steel parallel flange channels are a kind of hot rolled steel channel. They are described by height, width and thickness, eg, 120กม53กม5.5. We provide the dimensions, shape and weight of the steel channels according to Chinese national standard GB/T 706-2008. The marine steel parallel flange channels good weldability, excellent riveting and comprehensive mechanical properties. The channels provided are high quality, standard-sized and well-shaped. Please contact us, if you have any specific requirements. And if you are interested in our marine steel parallel flange channels, welcome to contact us.
Features
• To be Manufactured in line with GB/T 706-2008
• To be made of high quality steel
• Full selection of steel grades
• Standard dimensions with marginal tolerances
• Well-shaped

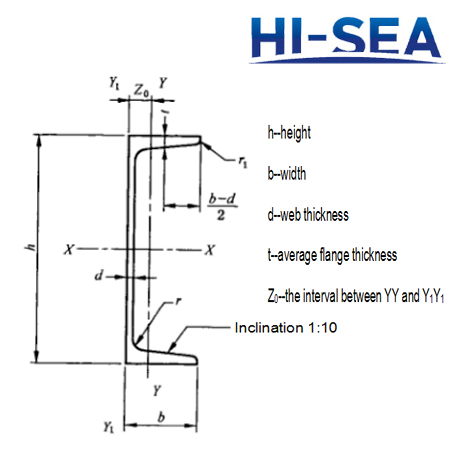

Profile of Marine Steel Parallel Flange Channels
Dimensions
Model |
Sectional Dimension (mm) |
Sectional Area (cm2) |
Theoretical Weight (kg/m) |
|||||
h |
b |
d |
t |
r |
r1 |
|||
5 |
50 |
37 |
4.5 |
7.0 |
7.0 |
3.5 |
6.928 |
5.438 |
6.3 |
63 |
40 |
4.8 |
7.5 |
7.5 |
3.8 |
8.451 |
6.634 |
6.5 |
65 |
40 |
4.3 |
7.5 |
7.5 |
3.8 |
8.547 |
6.709 |
8 |
80 |
43 |
5.0 |
8.0 |
8.0 |
4.0 |
10.248 |
8.045 |
10 |
100 |
48 |
5.3 |
8.5 |
8.5 |
4.2 |
12.748 |
10.007 |
12 |
120 |
53 |
5.5 |
9.0 |
9.0 |
4.5 |
15.362 |
12.059 |
12.6 |
126 |
53 |
5.5 |
9.0 |
9.0 |
4.5 |
15.692 |
12.318 |
14a |
140 |
58 |
6.0 |
9.5 |
9.5 |
4.8 |
18.516 |
14.535 |
14b |
60 |
8.0 |
21.316 |
16.733 |
||||
16a |
160 |
63 |
6.5 |
10.0 |
10.0 |
5.0 |
21.962 |
17.24 |
16b |
65 |
8.5 |
25.162 |
19.752 |
||||
18a |
180 |
68 |
7.0 |
10.5 |
10.5 |
5.2 |
25.699 |
20.174 |
18b |
70 |
9.0 |
29.299 |
23.000 |
||||
20a |
200 |
73 |
7.0 |
11.0 |
11.0 |
5.5 |
28.837 |
22.637 |
20b |
75 |
9.0 |
32.837 |
25.777 |
||||
22a |
220 |
77 |
7.0 |
11.5 |
11.5 |
5.8 |
31.846 |
24.999 |
22b |
79 |
9.0 |
36.246 |
28.453 |
||||
24a |
240 |
78 |
7.0 |
12.0 |
12.0 |
6.0 |
34.217 |
26.860 |
24b |
80 |
9.0 |
39.017 |
30.628 |
||||
24c |
82 |
11.0 |
43.817 |
34.396 |
||||
25a |
250 |
78 |
7.0 |
34.917 |
27.410 |
|||
25b |
80 |
9.0 |
39.917 |
31.335 |
||||
25c |
82 |
11.0 |
44.917 |
35.260 |
||||
27a |
270 |
82 |
7.5 |
12.5 |
12.5 |
6.2 |
39.284 |
30.838 |
27b |
84 |
9.5 |
44.684 |
35.077 |
||||
27c |
86 |
11.5 |
50.084 |
39.316 |
||||
28a |
280 |
82 |
7.5 |
40.034 |
31.427 |
|||
28b |
84 |
9.5 |
45.634 |
35.823 |
||||
28c |
86 |
11.5 |
51.234 |
40.219 |
||||
30a |
300 |
85 |
7.5 |
13.5 |
13.5 |
6.8 |
43.902 |
34.463 |
30b |
87 |
9.5 |
49.902 |
39.173 |
||||
30c |
89 |
11.5 |
55.902 |
43.883 |
||||
32a |
320 |
88 |
8.0 |
14.0 |
14.0 |
7.0 |
48.513 |
38.083 |
32b |
90 |
10.0 |
54.913 |
43.107 |
||||
32c |
92 |
12.0 |
61.313 |
48.131 |
||||
36a |
360 |
96 |
9.0 |
16.0 |
16.0 |
8.0 |
60.910 |
47.814 |
36b |
98 |
11.0 |
68.110 |
53.466 |
||||
36c |
100 |
13.0 |
75.310 |
59.118 |
||||
40a |
400 |
100 |
10.5 |
18.0 |
18.0 |
9.0 |
75.068 |
58.928 |
40b |
102 |
12.5 |
83.038 |
65.208 |
||||
40c |
104 |
14.5 |
91.068 |
71.488 |
||||
Note |
The data of r, r1 will not be as terms of delivery. |
