Welded Steel T-Sections for Shipbuilding
The T-sections we provided are a kind of welded steel section which are applied to ships and marine structures. T-sections are also known as ˇ°T-beamsˇ±. The welded steel T-sections for shipbuilding are manufactured under the standard GB/T 3433-2013. The T-section has advantages of high bending strength, light weight , cost and time savings. We are able to supply welded steel T-sections for shipbuilding made of various materials, such as Q235, Q345, CCSA... The mainly dimensional range is as following: height 100~600mm, width 50~200mm, web thickness 4~15mm, flange thickness 7~28mm. If you have any specific requirements, please contact us. We will try our best to fulfill your requirements.
Features
• In line with GB/T 3433-2013
• Used for shipbuilding and marine structures
• Full selection of materials and dimensions
• High quality
• Standard-sized, well-shaped and reliable

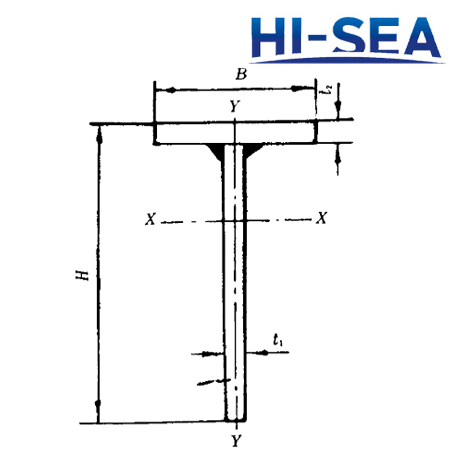

Profile of Welded Steel T-Sections for Shipbuilding
Dimensions
Model |
Sectional Dimension |
||||||
H |
B |
t1 |
t2 |
Inclination |
r |
||
10 |
b |
100 |
54 |
4 |
7 |
1:10 |
2.5 |
a |
100 |
55 |
5 |
||||
12 |
c |
120 |
60 |
4 |
5 |
-- |
|
b |
120 |
65 |
5 |
9 |
1:10 |
||
a |
120 |
66 |
6 |
||||
15 |
c |
150 |
75 |
4 |
6 |
-- |
|
b |
150 |
65 |
5 |
9 |
1:10 |
||
a |
150 |
67 |
7 |
||||
18 |
c |
180 |
90 |
5 |
7 |
-- |
3 |
b |
180 |
89 |
6 |
11 |
1:10 |
||
a |
180 |
90 |
7 |
||||
21 |
c |
210 |
100 |
6 |
8 |
-- |
|
b |
210 |
90 |
7 |
11 |
1:10 |
||
a |
210 |
91 |
8 |
||||
24 |
c |
240 |
120 |
7 |
9 |
-- |
3.5 |
b |
240 |
119 |
8 |
13 |
1:10 |
||
a |
270 |
120 |
9 |
||||
27 |
c |
270 |
130 |
7 |
10 |
-- |
|
b |
270 |
119 |
8 |
13 |
1:10 |
||
a |
300 |
121 |
10 |
||||
30 |
c |
300 |
150 |
8 |
12 |
-- |
4 |
b |
300 |
138 |
9 |
16 |
1:10 |
||
a |
350 |
140 |
11 |
||||
35 |
b |
350 |
139 |
10 |
|||
(a) |
350 |
141 |
12 |
||||
40 |
c |
400 |
180 |
8 |
12 |
-- |
5 |
b |
400 |
158 |
10 |
20 |
1:10 |
||
a |
400 |
160 |
12 |
||||
45(a) |
450 |
161 |
13 |
||||
50a |
500 |
180 |
14 |
24 |
6 |
||
55(a) |
550 |
181 |
15 |
||||
60a |
600 |
200 |
15 |
28 |
6 |
