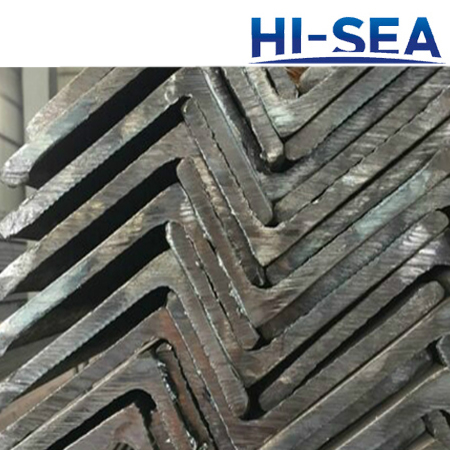

Japanese L-Section Steel
The Japanese L-section steel is a sort of steel angles. It is also known as ¡°unequal leg and thickness angles¡±, ¡°T-sections¡±. The difference between unequal-leg angles and L-section steel is that the unequal-leg angles have the same thick flanges, but L-section steel not. Compared with bulb flats, the Japanese L-section steel has larger section modulus and rigidity. What¡¯s more, under the condition of same section modulus, the Japanese L-section steel can increase the loading and economic benefits. It is described by both leg length (longer first) and the both wall thickness (thinner first), eg. L250¡Á90¡Á9¡Á12. It is often used for shipbuilding. In addition to shipbuilding, the Japanese L-section steel can be used for bridges, power transmission towers, beams... We are capable of supplying a wide range of steel grades and dimensions of the angles. If you are interested in our products, welcome to contact us.
Features
• Made of high quality steel
• Full selection of steel grades
• To meet the requirements of JIS G3192-2008
• Standard-sized, well-shaped, reliable
• A wide range of dimensions

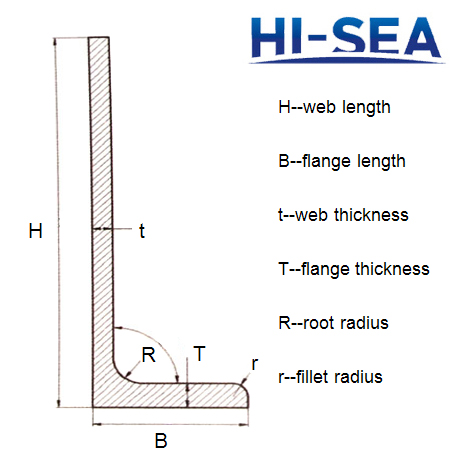

Profile of Japanese L-Section Steel
Dimensions of Japanese L-Section Steel
Type |
Nominal Weight M (kg/m) |
Sectional Area A (cm2)
|
Sectional Dimension |
|||||
H |
B |
t |
T |
R |
r |
|||
L200¡Á90¡Á9¡Á12 |
22.0 |
28.1 |
200 |
90 |
9 |
12 |
15 |
7.5 |
L225¡Á90¡Á9¡Á12 |
23.8 |
30.3 |
225 |
90 |
9 |
12 |
15 |
7.5 |
L250¡Á90¡Á9¡Á13 |
26.2 |
33.4 |
250 |
90 |
9 |
13 |
15 |
7.5 |
L250¡Á90¡Á10.5¡Á15 |
30.3 |
38.5 |
250 |
90 |
10.5 |
15 |
15 |
7.5 |
L250¡Á90¡Á11.5¡Á16 |
32.7 |
41.7 |
250 |
90 |
11.5 |
16 |
15 |
7.5 |
L275¡Á100¡Á10.5¡Á14 |
32.8 |
41.8 |
275 |
100 |
10.5 |
14 |
15 |
7.5 |
L300¡Á100¡Á10.5¡Á15 |
35.6 |
45.3 |
300 |
100 |
10.5 |
15 |
15 |
7.5 |
L300¡Á100¡Á11.5¡Á16 |
38.5 |
49.0 |
300 |
100 |
11.5 |
16 |
15 |
7.5 |
L325¡Á120¡Á10.5¡Á14 |
39.3 |
50.1 |
325 |
120 |
10.5 |
14 |
20 |
10 |
L325¡Á120¡Á11.5¡Á15 |
42.6 |
54.3 |
325 |
120 |
11.5 |
15 |
20 |
10 |
L350¡Á120¡Á10.5¡Á16 |
43.1 |
54.9 |
350 |
120 |
10.5 |
16 |
20 |
10 |
L350¡Á120¡Á11.5¡Á18 |
47.4 |
60.4 |
350 |
120 |
11.5 |
18 |
20 |
10 |
L375¡Á120¡Á10.5¡Á18 |
46.9 |
59.7 |
375 |
120 |
10.5 |
18 |
20 |
10 |
L375¡Á120¡Á11.5¡Á20 |
51.4 |
65.4 |
375 |
120 |
11.5 |
20 |
20 |
10 |
L400¡Á120¡Á11.5¡Á23 |
56.2 |
71.6 |
400 |
120 |
11.5 |
23 |
20 |
10 |
L425¡Á120¡Á11.5¡Á23 |
59.3 |
75.5 |
425 |
120 |
11.5 |
24 |
20 |
10 |
L450¡Á120¡Á11.5¡Á25 |
62.4 |
79.5 |
450 |
120 |
11.5 |
25 |
20 |
10 |
L475¡Á120¡Á11.5¡Á28 |
67.2 |
85.6 |
475 |
120 |
11.5 |
28 |
20 |
10 |
L475¡Á120¡Á12.5¡Á30 |
72.4 |
92.2 |
475 |
120 |
12.5 |
30 |
20 |
10 |
L500¡Á120¡Á12.5¡Á33 |
77.4 |
98.6 |
500 |
120 |
12.5 |
33 |
20 |
10 |
L500¡Á120¡Á13.5¡Á35 |
82.8 |
105 |
500 |
120 |
13.5 |
35 |
20 |
10 |
