Marine Flat Bars

Marine Flat Bars

Marine flat bars are a kind of section steel which are used to anywhere where a connection between two beams is required, especially for ship uses. They are used for base plates, end plates, stiffeners, gussets, splice plates and many more. The marine flat bars are described by its breadth and thickness. We can provide you the flat bars as following dimensions: thickness in the range of 3~60mm, breadth in the range of 10 to 400mm, and customized length. Besides, we also provide you full selection of steel grades Q235, Q345, A36, SS400... The flat bars feature little tolerance, well-shaped and light in weight. Please contact us if you have any specific requirements. If you are interested in our flat bars, please feel free to contact us. We will reply you soon.

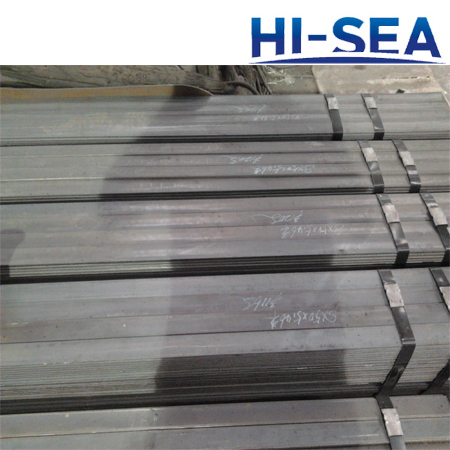

Marine Flat Bars

Drawing of Marine Flat Bars

Some Available Dimensions

Model

Nominal Dimensions

Breadth

Thickness

Radius

FS75

75

7~16

¨Q3

FS80

80

7~16

¨Q3

FS100

100

8~16

¨Q3

FS120

120

8~16

¨Q3

FS150

150

9~20

¨Q3

FS200

200

10~25

¨Q4

FS250

250

10~25

¨Q4

FS300

300

12~30

¨Q5

FS350

350

12~30

¨Q5

FS400

400

15~35

¨Q5

Measurement Allowance

Project

Tolerance

Thickness (mm)

t<6

-0.3~+1.0

6¨Qt<12

-0.3~+0.8

12¨Qt<15

-0.3~+0.5

t¨R15

¡À0.3

Breadth (mm)

b<100

¡À1.5

100¨Qb<150

¡À2.0

150¨Qb<300

¡À2.5

b¨R300

¡À3.5

Length (mm)

0~+80
