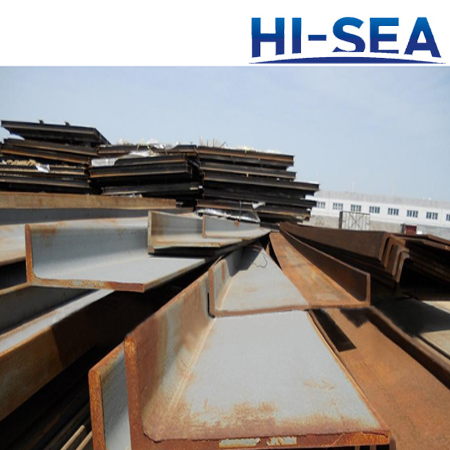

Inverted Angles
Inverted angles are a sort of steel angles. The inverted angles are also known as กฐL-section steelกฑ, กฐunequal leg and thickness anglesกฑ. They are often used for large vessels, suitable for both civil ships and warships. In addition to shipbuilding, the inverted angles are also used for building structures, bridges, power transmission towers... We are able to supply inverted angles made of various steel grades. Shipbuilding inverted angles, galvanized inverted angles, stainless inverted angles are all available. Besides, we also provide you full selection of dimensions. The inverted angles are produced by Chinese top steel mills in line with GB/T 706-2008 or JIS G3192-2008. If you have any specific requirements, please contact us. The inverted angles are hot-rolled, standard-sized, precision-made, reliable and economical. If you want to know more details, welcome to contact us.
Features of Inverted Angles
• In line with GB/T 706-2008 or JIS G3192-2008
• Multiple uses for shipbuilding, building structures, bridges, beams...
• A wide range of materials: A, B, D, E, AH32, DH32, Q235...
• Abundant stock
• Professional service

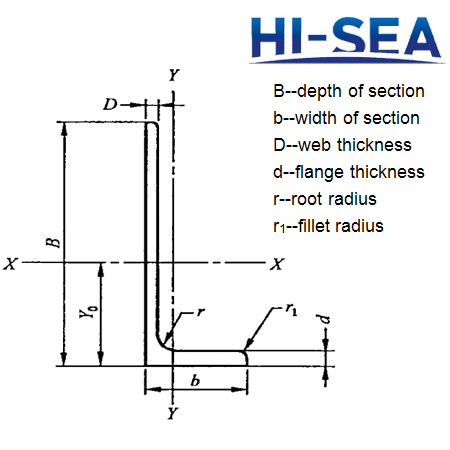

Profile of GB/T 706-2008 Inverted Angles
Dimensions of GB/T 706-2008 Inverted Angles
Type |
Sectional Dimension (mm) |
Sectional Area (cm2) |
Nominal Weight (kg/m) |
|||||
B |
b |
D |
d |
r |
r1 |
|||
L250กม90กม9กม13 |
250 |
90 |
9 |
13 |
15 |
7.5 |
33.4 |
26.2 |
L250กม90กม10.5กม15 |
10.5 |
15 |
38.5 |
30.3 |
||||
L250กม90กม11.5กม16 |
11.5 |
16 |
41.7 |
32.7 |
||||
L300กม100กม10.5กม15 |
300 |
100 |
10.5 |
15 |
45.3 |
35.6 |
||
L300กม100กม11.5กม16 |
11.5 |
16 |
49.0 |
38.5 |
||||
L350กม120กม10.5กม16 |
350 |
120 |
10.5 |
16 |
20 |
10 |
54.9 |
43.1 |
L350กม120กม11.5กม18 |
11.5 |
18 |
60.4 |
47.4 |
||||
L400กม120กม11.5กม23 |
400 |
120 |
11.5 |
23 |
71.6 |
56.2 |
||
L450กม120กม11.5กม25 |
450 |
120 |
11.5 |
25 |
79.5 |
62.4 |
||
L500กม120กม12.5กม33 |
500 |
120 |
12.5 |
33 |
98.6 |
77.4 |
||
L500กม120กม13.5กม35 |
13.5 |
35 |
105.0 |
82.8 |

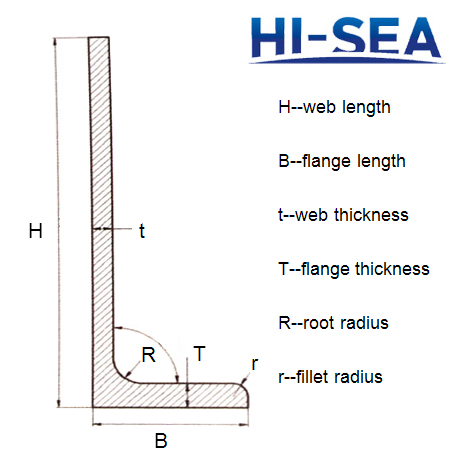

Profile of JIS G3192-2008 Inverted Angles
Dimensions of JIS G3192-2008 Inverted Angles
Type |
Nominal Weight M (kg/m) |
Sectional Area A (cm2)
|
Sectional Dimension |
|||||
H |
B |
t |
T |
R |
r |
|||
L200กม90กม9กม12 |
22.0 |
28.1 |
200 |
90 |
9 |
12 |
15 |
7.5 |
L225กม90กม9กม12 |
23.8 |
30.3 |
225 |
90 |
9 |
12 |
15 |
7.5 |
L250กม90กม9กม13 |
26.2 |
33.4 |
250 |
90 |
9 |
13 |
15 |
7.5 |
L250กม90กม10.5กม15 |
30.3 |
38.5 |
250 |
90 |
10.5 |
15 |
15 |
7.5 |
L250กม90กม11.5กม16 |
32.7 |
41.7 |
250 |
90 |
11.5 |
16 |
15 |
7.5 |
L275กม100กม10.5กม14 |
32.8 |
41.8 |
275 |
100 |
10.5 |
14 |
15 |
7.5 |
L300กม100กม10.5กม15 |
35.6 |
45.3 |
300 |
100 |
10.5 |
15 |
15 |
7.5 |
L300กม100กม11.5กม16 |
38.5 |
49.0 |
300 |
100 |
11.5 |
16 |
15 |
7.5 |
L325กม120กม10.5กม14 |
39.3 |
50.1 |
325 |
120 |
10.5 |
14 |
20 |
10 |
L325กม120กม11.5กม15 |
42.6 |
54.3 |
325 |
120 |
11.5 |
15 |
20 |
10 |
L350กม120กม10.5กม16 |
43.1 |
54.9 |
350 |
120 |
10.5 |
16 |
20 |
10 |
L350กม120กม11.5กม18 |
47.4 |
60.4 |
350 |
120 |
11.5 |
18 |
20 |
10 |
L375กม120กม10.5กม18 |
46.9 |
59.7 |
375 |
120 |
10.5 |
18 |
20 |
10 |
L375กม120กม11.5กม20 |
51.4 |
65.4 |
375 |
120 |
11.5 |
20 |
20 |
10 |
L400กม120กม11.5กม23 |
56.2 |
71.6 |
400 |
120 |
11.5 |
23 |
20 |
10 |
L425กม120กม11.5กม23 |
59.3 |
75.5 |
425 |
120 |
11.5 |
24 |
20 |
10 |
L450กม120กม11.5กม25 |
62.4 |
79.5 |
450 |
120 |
11.5 |
25 |
20 |
10 |
L475กม120กม11.5กม28 |
67.2 |
85.6 |
475 |
120 |
11.5 |
28 |
20 |
10 |
L475กม120กม12.5กม30 |
72.4 |
92.2 |
475 |
120 |
12.5 |
30 |
20 |
10 |
L500กม120กม12.5กม33 |
77.4 |
98.6 |
500 |
120 |
12.5 |
33 |
20 |
10 |
L500กม120กม13.5กม35 |
82.8 |
105 |
500 |
120 |
13.5 |
35 |
20 |
10 |
