L-Section Steel

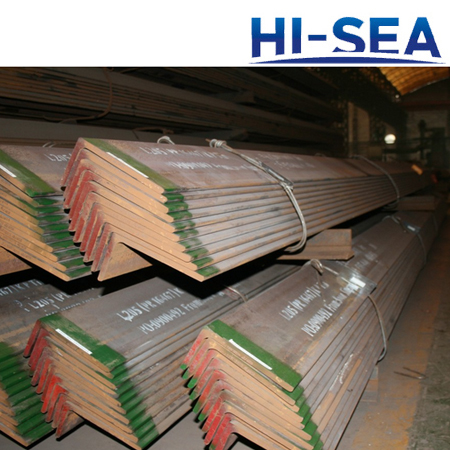

L-section steel is a sort of steel angles. The L-section steel is also known as ¡°inverted angles¡±, ¡°unequal leg and thickness angles¡±. It is often used for large vessels, suitable for both civil ships and warships. In addition to shipbuilding, the L-section steel is also used for building structures, bridges, power transmission towers... We are able to supply L-section steel made of various steel grades. Shipbuilding L-section steel, galvanized L-section steel, stainless L-section steel are all available. Besides, we also provide you full selection of dimensions. The L-section steel is produced by Chinese top steel mills in line with GB/T 706-2008 or JIS G3192-2008. If you have any specific requirements, please contact us. The L-section steel are hot-rolled, standard-sized, precision-made, reliable and economical. If you want to know more details, welcome to contact us.
Features of L-Section Steel
• In line with GB/T 706-2008 or JIS G3192-2008
• Multiple uses for shipbuilding, building structures, bridges, beams...
• A wide range of materials: A, B, D, E, AH32, DH32, Q235...
• Abundant stock
• Professional service

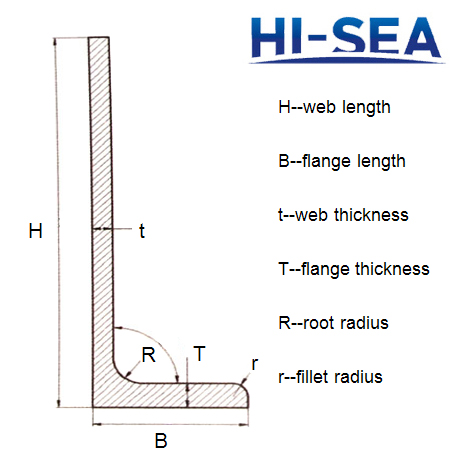

Profile of GB/T 706-2008 L-Section Steel
Dimensions of GB/T 706-2008 L-Section Steel
Type |
Sectional Dimension (mm) |
Sectional Area (cm2) |
Nominal Weight (kg/m) |
|||||
B |
b |
D |
d |
r |
r1 |
|||
L250¡Á90¡Á9¡Á13 |
250 |
90 |
9 |
13 |
15 |
7.5 |
33.4 |
26.2 |
L250¡Á90¡Á10.5¡Á15 |
10.5 |
15 |
38.5 |
30.3 |
||||
L250¡Á90¡Á11.5¡Á16 |
11.5 |
16 |
41.7 |
32.7 |
||||
L300¡Á100¡Á10.5¡Á15 |
300 |
100 |
10.5 |
15 |
45.3 |
35.6 |
||
L300¡Á100¡Á11.5¡Á16 |
11.5 |
16 |
49.0 |
38.5 |
||||
L350¡Á120¡Á10.5¡Á16 |
350 |
120 |
10.5 |
16 |
20 |
10 |
54.9 |
43.1 |
L350¡Á120¡Á11.5¡Á18 |
11.5 |
18 |
60.4 |
47.4 |
||||
L400¡Á120¡Á11.5¡Á23 |
400 |
120 |
11.5 |
23 |
71.6 |
56.2 |
||
L450¡Á120¡Á11.5¡Á25 |
450 |
120 |
11.5 |
25 |
79.5 |
62.4 |
||
L500¡Á120¡Á12.5¡Á33 |
500 |
120 |
12.5 |
33 |
98.6 |
77.4 |
||
L500¡Á120¡Á13.5¡Á35 |
13.5 |
35 |
105.0 |
82.8 |
Profile of JIS G3192-2008 L-Section Steel
Dimensions of JIS G3192-2008 L-Section Steel
Type |
Nominal Weight M (kg/m) |
Sectional Area A (cm2)
|
Sectional Dimension |
|||||
H |
B |
t |
T |
R |
r |
|||
L200¡Á90¡Á9¡Á12 |
22.0 |
28.1 |
200 |
90 |
9 |
12 |
15 |
7.5 |
L225¡Á90¡Á9¡Á12 |
23.8 |
30.3 |
225 |
90 |
9 |
12 |
15 |
7.5 |
L250¡Á90¡Á9¡Á13 |
26.2 |
33.4 |
250 |
90 |
9 |
13 |
15 |
7.5 |
L250¡Á90¡Á10.5¡Á15 |
30.3 |
38.5 |
250 |
90 |
10.5 |
15 |
15 |
7.5 |
L250¡Á90¡Á11.5¡Á16 |
32.7 |
41.7 |
250 |
90 |
11.5 |
16 |
15 |
7.5 |
L275¡Á100¡Á10.5¡Á14 |
32.8 |
41.8 |
275 |
100 |
10.5 |
14 |
15 |
7.5 |
L300¡Á100¡Á10.5¡Á15 |
35.6 |
45.3 |
300 |
100 |
10.5 |
15 |
15 |
7.5 |
L300¡Á100¡Á11.5¡Á16 |
38.5 |
49.0 |
300 |
100 |
11.5 |
16 |
15 |
7.5 |
L325¡Á120¡Á10.5¡Á14 |
39.3 |
50.1 |
325 |
120 |
10.5 |
14 |
20 |
10 |
L325¡Á120¡Á11.5¡Á15 |
42.6 |
54.3 |
325 |
120 |
11.5 |
15 |
20 |
10 |
L350¡Á120¡Á10.5¡Á16 |
43.1 |
54.9 |
350 |
120 |
10.5 |
16 |
20 |
10 |
L350¡Á120¡Á11.5¡Á18 |
47.4 |
60.4 |
350 |
120 |
11.5 |
18 |
20 |
10 |
L375¡Á120¡Á10.5¡Á18 |
46.9 |
59.7 |
375 |
120 |
10.5 |
18 |
20 |
10 |
L375¡Á120¡Á11.5¡Á20 |
51.4 |
65.4 |
375 |
120 |
11.5 |
20 |
20 |
10 |
L400¡Á120¡Á11.5¡Á23 |
56.2 |
71.6 |
400 |
120 |
11.5 |
23 |
20 |
10 |
L425¡Á120¡Á11.5¡Á23 |
59.3 |
75.5 |
425 |
120 |
11.5 |
24 |
20 |
10 |
L450¡Á120¡Á11.5¡Á25 |
62.4 |
79.5 |
450 |
120 |
11.5 |
25 |
20 |
10 |
L475¡Á120¡Á11.5¡Á28 |
67.2 |
85.6 |
475 |
120 |
11.5 |
28 |
20 |
10 |
L475¡Á120¡Á12.5¡Á30 |
72.4 |
92.2 |
475 |
120 |
12.5 |
30 |
20 |
10 |
L500¡Á120¡Á12.5¡Á33 |
77.4 |
98.6 |
500 |
120 |
12.5 |
33 |
20 |
10 |
L500¡Á120¡Á13.5¡Á35 |
82.8 |
105 |
500 |
120 |
13.5 |
35 |
20 |
10 |
