Japanese Standard Equal Leg Angles

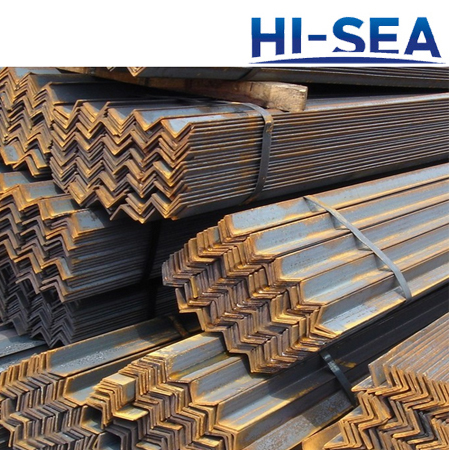

The equal leg angles are made of steel in accordance with JIS G3192-2008. They are described by both leg length and wall thickness, eg. 20กม20กม3. the equal leg angles are used for building and engineering structures, such as shipbuilding, bridges, industrial furnace, power transmission towers... The Japanese standard equal leg angles are reliable, precision-made, standard-sized, and economical. We are able to provide a wide range of steel grades and dimensions. The regular length of angles is in the range of 3~19m. If you have any specific requirements about materials and dimensions, please contact us. In addition to Japanese standard equal leg angles, we also provide Japanese standard unequal leg angles, Chinese standard steel angles, European standard steel angles, American standard steel angles... If you want to know more details, welcome to contact us!
Features of the Japanese Standard Equal Leg Angles
• In line with JIS G3192-2008
• High quality
The Japanese standard equal leg angles are made of high quality steel. They are produced by excellent steel mills which have strict quality management.
• A wide range of materials and dimensions
The material of angles are structural steel, such as KA, KB, KD, KE, KA32,KD32...
The dimension is from 20กม20กม3mm to 250กม250กม35mm.
Profile of Japanese Standard Equal Leg Angles
Dimensions of Japanese Standard Equal Leg Angles
Type |
Unit Mass kg/m |
Sectional Area cm2 |
Sectional Dimension |
||
A mm |
t mm |
r1 mm |
|||
20กม20กม3 |
0.882 |
1.12 |
20 |
3 |
3.5 |
25กม25กม3 |
1.12 |
1.42 |
25 |
3 |
3.5 |
25กม25กม4 |
1.45 |
1.85 |
25 |
4 |
3.5 |
30กม30กม3 |
1.36 |
1.74 |
30 |
3 |
5 |
30กม30กม4 |
1.78 |
2.27 |
30 |
4 |
5 |
35กม35กม4 |
2.09 |
2.67 |
35 |
4 |
5 |
35กม35กม5 |
2.57 |
3.28 |
35 |
5 |
5 |
40กม40กม3 |
1.84 |
2.35 |
40 |
3 |
6 |
40กม40กม4 |
2.42 |
3.08 |
40 |
4 |
6 |
40กม40กม5 |
2.97 |
3.79 |
40 |
5 |
6 |
45กม45กม4 |
2.74 |
3.49 |
45 |
4 |
7 |
45กม45กม5 |
3.38 |
4.30 |
45 |
5 |
7 |
50กม50กม4 |
3.06 |
3.89 |
50 |
4 |
7 |
50กม50กม5 |
3.77 |
4.80 |
50 |
5 |
7 |
50กม50กม6 |
4.47 |
5.69 |
50 |
6 |
7 |
60กม60กม5 |
4.57 |
5.82 |
60 |
5 |
8 |
60กม60กม6 |
5.42 |
6.91 |
60 |
6 |
8 |
60กม60กม8 |
7.09 |
9.03 |
60 |
8 |
8 |
65กม65กม6 |
5.91 |
7.53 |
65 |
6 |
9 |
65กม65กม8 |
7.73 |
9.85 |
65 |
8 |
9 |
70กม70กม6 |
6.38 |
8.13 |
70 |
6 |
9 |
70กม70กม7 |
7.38 |
9.40 |
70 |
7 |
9 |
75กม75กม6 |
6.85 |
8.73 |
75 |
6 |
9 |
75กม75กม8 |
8.99 |
11.4 |
75 |
8 |
9 |
80กม80กม6 |
7.34 |
9.35 |
75 |
6 |
10 |
80กม80กม8 |
9.63 |
12.3 |
80 |
8 |
10 |
80กม80กม10 |
11.9 |
15.1 |
80 |
10 |
10 |
90กม90กม7 |
9.61 |
12.2 |
90 |
7 |
11 |
90กม90กม8 |
10.9 |
13.9 |
90 |
8 |
11 |
90กม90กม9 |
12.2 |
15.5 |
90 |
9 |
11 |
90กม90กม10 |
15.0 |
17.1 |
90 |
10 |
11 |
100กม100กม8 |
12.2 |
15.5 |
100 |
8 |
12 |
100กม100กม10 |
15.0 |
19.2 |
100 |
10 |
12 |
100กม100กม12 |
17.8 |
22.7 |
100 |
12 |
12 |
120กม120กม8 |
14.7 |
18.7 |
120 |
8 |
13 |
120กม120กม10 |
18.2 |
23.2 |
120 |
10 |
13 |
120กม120กม12 |
21.6 |
27.5 |
120 |
12 |
13 |
125กม125กม8 |
15.3 |
19.5 |
125 |
8 |
13 |
125กม125กม10 |
19.0 |
24.2 |
125 |
10 |
13 |
125กม125กม12 |
22.6 |
28.7 |
125 |
12 |
13 |
150กม150กม10 |
23.0 |
29.3 |
150 |
10 |
16 |
150กม150กม12 |
27.3 |
34.8 |
150 |
12 |
16 |
150กม150กม15 |
33.8 |
43.0 |
150 |
15 |
16 |
180กม180กม15 |
40.9 |
52.1 |
180 |
15 |
18 |
180กม180กม18 |
48.6 |
61.9 |
180 |
18 |
18 |
200กม200กม16 |
48.5 |
61.8 |
200 |
16 |
18 |
200กม200กม20 |
59.9 |
76.3 |
200 |
20 |
18 |
200กม200กม24 |
71.1 |
90.6 |
200 |
24 |
18 |
250กม250กม28 |
104 |
133 |
250 |
28 |
18 |
250กม250กม35 |
128 |
163 |
250 |
35 |
18 |
