Steel W-Type I-Beams
Steel W-type I-beams are a kind of hot rolled section steel. They are also known as ¡°H-sections¡±, ¡°universal columns¡±, ¡°wide flange beams¡±, or ¡°W-section I beams¡±. The steel W-type I-beams are widely used in building structures, bridges, ships... The section of W-type I-beams is a very efficient form for carrying both bending and shear loads in the plane of web. The application of steel W-type I-beams will reduce the final products¡¯ weight and cut down expenditure. We are capable of supplying steel W-type I-beams which are manufactured under different standards. The standards are: GB/T 12263-2010, ASTM A6/A6M, JIS G3192, JIS G 3106, JIS G 3101, JIS G 3106, KS D 3503, KS D 3502, EN 10025, EN10034. We provide you full selection of dimensions and steel grades. All steel W-type I-beams are manufactured by top steel mills with highest quality standards. If you are interested in our steel W-type I-beams, welcome to contact us. We will try our best to fulfill your requirements.
Why choose us?
• Excellent quality products from top steel mills
• A wide range of steel grades and dimensions
• Various applicable standards
• Good service to fulfill customers¡¯ demands
• Rich experience in import and export trade

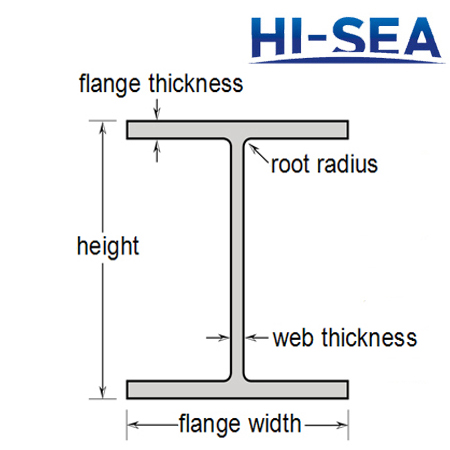

Profile of Steel W-Type I-Beams
Steel W-Type I-Beams Offered
Adopted Standard |
Data |
||
Chinese Standard |
GB/T 12263-2010 |
Steel Grades |
Q235A, Q235B, Q235C, Q235D Q345A, Q345B, Q345C, Q345D Q390A, Q390B, Q390C |
Dimensions h¡Áb (mm) |
HW 100¡Á100~400¡Á400 HM 150¡Á100~600¡Á300 HN 150¡Á75~900¡Á300 |
||
Length (m) |
6~18m or as per customer¡¯s requirements |
||
American Standard |
ASTM A6/A6M |
Steel Grades |
GR50, GR55, GR60, GR65 A36, A43, D36, DH36 |
Designation (in.) |
W12 |
||
British Standard |
BS 4-1 BS4360 EN 10034 |
Steel Grades |
40B, 50B, 50C, 55C, S450J0 |
Designation (mm) |
UC 152¡Á152¡Á23~UC 356¡Á406¡Á634 |
||
European Standard |
EN 10034 EN 10025 |
Steel Grades |
S235J0, S235J2, S235JR S275J0, S275J2, S275JR S355J0, S355J2, S355JR, S355J2+N |
Designation (mm) |
HE 100~500 IPE 140~500 HP 305 |
||
Japanese Standard |
JIS G3101 JIS G3106 JIS G3136 JIS G3192 |
Steel Grades |
SS400, SS490, SM490, SN490 |
Dimensions h¡Áb (mm) |
HW 100¡Á100~400¡Á400 HM 150¡Á100~600¡Á300 HN 150¡Á75~900¡Á300 |
||
South Korean Standard |
KS D3503 KS D3502 |
Steel Grade |
SS400 |
Dimensions h¡Áb (mm) |
HW 100¡Á100~400¡Á400 HM 150¡Á100~600¡Á300 HN 150¡Á75~900¡Á300 |
||
NOTE |
If you have any specific requirements, welcome to contact us. |
