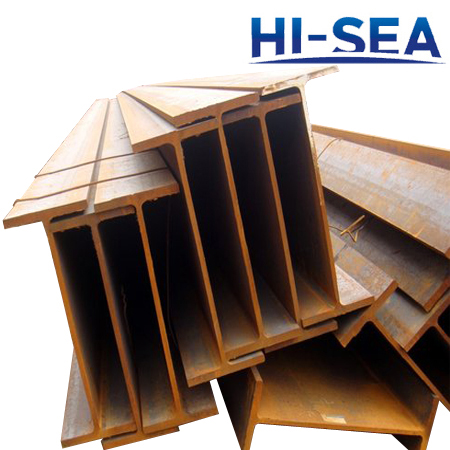

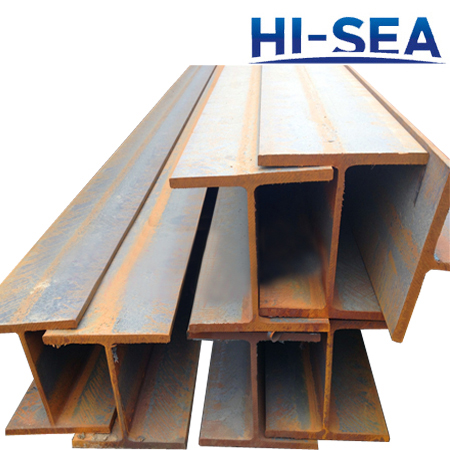

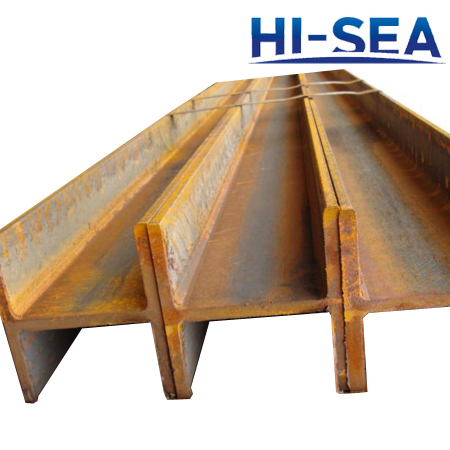

Hot Rolled H Beams
H beams are used across a wide range of structural applications from big buildings, bridges to ships because they feature good mechanical properties, rational profiles, and less internal stress. They are cost and material savings. Besides, the hot rolled H beams offered are standard-sized, well-shaped and reliable. We are capable of supplying hot rolled H beams which are manufactured under different standards. We are able to provide you a full selection of beam dimensions. All H beams provided are from Chinese top steel mills with high quality management standard. If you have any specific requirements or want to know more details, please contact us. We will try our best to fulfill your requirements.
Features
• to meet different countries¡¯ requirements, such as America, Britain, Japan...
• Hot rolled, standard-sized, high reliability
• The economical H section which helps to reduce the workload of welding and riveting
• A large range of dimensions
• High cost performance

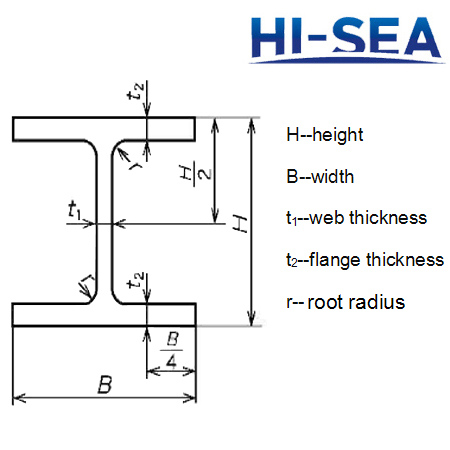

Profile of Hot Rolled H Beams
Hot Rolled H Beams Offered
Adopted Standard |
Data |
||
Chinese Standard |
GB/T 12263-2010
|
Steel Grades |
Q235A, Q235B, Q235C, Q235D Q345A, Q345B, Q345C, Q345D Q390A, Q390B, Q390C |
Dimensions h¡Áb (mm) |
HW 100¡Á100~400¡Á400 HM 150¡Á100~600¡Á300 HN 150¡Á75~900¡Á300 |
||
Length (m) |
6~18m or as per customer¡¯s requirements |
||
American Standard |
ASTM A6/A6M
|
Steel Grades |
GR50, GR55, GR60, GR65 A36, A43, D36, DH36 |
Designation (in.) |
W12 |
||
British Standard |
BS 4-1 BS4360 EN 10034
|
Steel Grades |
40B, 50B, 50C, 55C, S450J0 |
Designation (mm) |
UC 152¡Á152¡Á23~UC 356¡Á406¡Á634 |
||
European Standard |
EN 10034 EN 10025
|
Steel Grades |
S235J0, S235J2, S235JR S275J0, S275J2, S275JR S355J0, S355J2, S355JR, S355J2+N |
Designation (mm) |
HE 100~500 IPE 140~500 HP 305 |
||
Japanese Standard |
JIS G3101 JIS G3106 JIS G3136 JIS G3192
|
Steel Grades |
SS400, SS490, SM490, SN490 |
Dimensions h¡Áb (mm) |
HW 100¡Á100~400¡Á400 HM 150¡Á100~600¡Á300 HN 150¡Á75~900¡Á300 |
||
South Korean Standard |
KS D3503 KS D3502
|
Steel Grade |
SS400 |
Dimensions h¡Áb (mm) |
HW 100¡Á100~400¡Á400 HM 150¡Á100~600¡Á300 HN 150¡Á75~900¡Á300 |
||
NOTE |
If you have any specific requirements, welcome to contact us. |
