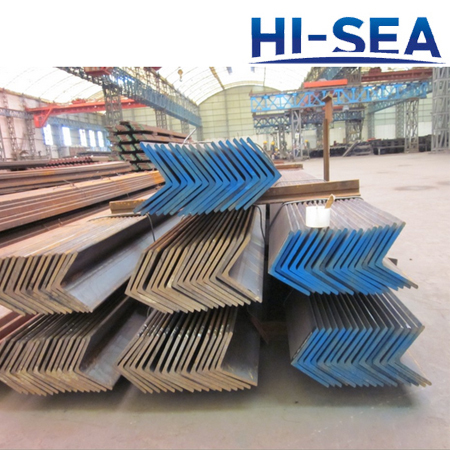

European Standard Equal Leg Angles
The equal leg angle is the angle with the same leg length. Equal leg angles are described by giving both leg length and the wall thickness (all in mm), eg. 25กม25กม3. The European standard equal leg angles are made of structural steel and engineering steel, including following steel grades: S185, S235, S275, S355, S450, E295,E355, E360... They are produced by Chinese excellent steel mills according to European standard EN 10056. We provide you a full selection of dimensions. If you have any specific requirements, welcome to contact us. The European standard equal leg angles can be used for shipbuilding, bridges, large buildings, power transmission towers... In addition to the European standard equal leg angles, we also supply European standard unequal leg angles, Chinese standard steel angles, Japanese standard steel angles, American standard steel angles, stainless steel angles, galvanized steel angles... If you want to know more details, please contact us!
Features of European Standard Equal Leg Angles
• To comply with EN 10025 and EN 10056
• Made of structural steel, engineering steel or marine steel
• A wide range of dimensions
• Fast delivery
• Precision-made, reliable and economical

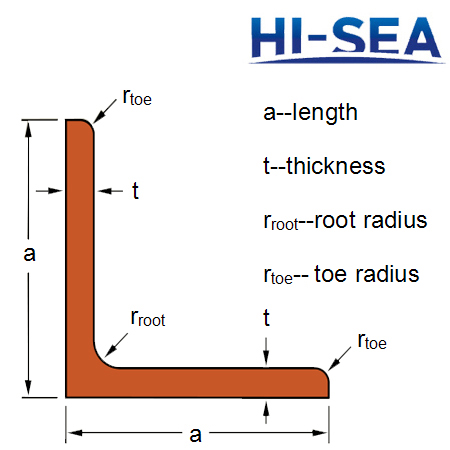

Profile of European Standard Equal Leg Angles
Dimensions of European Standard Equal Leg Angles
Designation |
Mass kg/m |
Sectional Area cm2 |
Dimensions |
||
a mm |
t mm |
rroot mm |
|||
20กม20กม3 |
0.882 |
1.12 |
20 |
3 |
3.5 |
25กม25กม3 |
1.12 |
1.42 |
25 |
3 |
3.5 |
25กม25กม4 |
1.45 |
1.85 |
25 |
4 |
3.5 |
30กม30กม3 |
1.36 |
1.74 |
30 |
3 |
5 |
30กม30กม4 |
1.78 |
2.27 |
30 |
4 |
5 |
35กม35กม4 |
2.09 |
2.67 |
35 |
4 |
5 |
40กม40กม4 |
2.42 |
3.08 |
40 |
4 |
6 |
40กม40กม5 |
2.97 |
3.79 |
40 |
5 |
6 |
45กม45กม4.5 |
3.06 |
3.90 |
45 |
4.5 |
7 |
50กม50กม4 |
3.06 |
3.89 |
50 |
4 |
7 |
50กม50กม5 |
3.77 |
4.80 |
50 |
5 |
7 |
50กม50กม6 |
4.47 |
5.69 |
50 |
6 |
7 |
60กม60กม5 |
4.57 |
5.82 |
60 |
5 |
8 |
60กม60กม6 |
5.42 |
6.91 |
60 |
6 |
8 |
60กม60กม8 |
7.09 |
9.03 |
60 |
8 |
8 |
65กม65กม7 |
6.83 |
8.7 |
65 |
7 |
9 |
70กม70กม6 |
6.38 |
8.13 |
70 |
6 |
9 |
70กม70กม7 |
7.38 |
9.40 |
70 |
7 |
9 |
75กม75กม6 |
6.85 |
8.73 |
75 |
6 |
9 |
75กม75กม8 |
8.99 |
11.4 |
75 |
8 |
9 |
80กม80กม8 |
9.63 |
12.3 |
80 |
8 |
10 |
80กม80กม10 |
11.9 |
15.1 |
80 |
10 |
10 |
90กม90กม7 |
9.61 |
12.2 |
90 |
7 |
11 |
90กม90กม8 |
10.9 |
13.9 |
90 |
8 |
11 |
90กม90กม9 |
12.2 |
15.5 |
90 |
9 |
11 |
90กม90กม10 |
13.4 |
17.1 |
90 |
10 |
11 |
100กม100กม8 |
12.2 |
15.5 |
100 |
8 |
12 |
100กม100กม10 |
15.0 |
19.2 |
100 |
10 |
12 |
100กม100กม12 |
17.8 |
22.7 |
100 |
12 |
12 |
120กม120กม10 |
18.2 |
23.2 |
120 |
10 |
13 |
120กม120กม12 |
21.6 |
27.5 |
120 |
12 |
13 |
130กม130กม12 |
23.6 |
30.0 |
130 |
12 |
14 |
150กม150กม10 |
23.0 |
29.3 |
150 |
10 |
16 |
150กม150กม12 |
27.3 |
34.8 |
150 |
12 |
16 |
150กม150กม15 |
33.8 |
43.0 |
150 |
15 |
16 |
160กม160กม15 |
36.2 |
46.1 |
160 |
15 |
17 |
180กม180กม16 |
43.5 |
55.4 |
18. |
16 |
18 |
180กม180กม18 |
48.6 |
61.9 |
180 |
18 |
18 |
200กม200กม16 |
48.5 |
61.8 |
200 |
16 |
18 |
200กม200กม18 |
54.3 |
69.1 |
200 |
18 |
18 |
200กม200กม20 |
59.9 |
76.3 |
200 |
20 |
18 |
200กม200กม24 |
71.1 |
90.6 |
200 |
24 |
18 |
250กม250กม28 |
104 |
133 |
250 |
28 |
18 |
250กม250กม35 |
128 |
163 |
250 |
35 |
18 |
Note |
The length of angles can be customized. |
