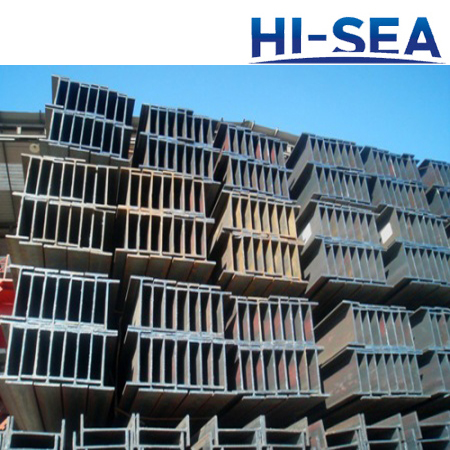

Japanese H Sections
H sections are used across a wide range of structural applications from big buildings, bridges to ships because they feature good mechanical properties, rational profiles, and less internal stress. Besides, they are cost and material savings. The Japanese H sections provided meet the standards JIS G3101, JIS G3106, JIS G3136 and JIS G3192. The available materials are: SS400, SS490, SM490, SN490. The dimension range of the H sections is as following: height in the range of 100~918mm, width in the range of 75~303mm, web thickness in the range of 5~19mm, and flange thickness in the range of 7~37mm. The H sections offered are hot rolled, standard-sized, well-shaped and reliable. If you have any specific requirements or want to know more details, please contact us. We will serve you whole-heartedly.
Features
• In line with JIS G3101, JIS G3106, JIS G3136 and JIS G3192
• Hot rolled, standard-sized, high reliability
• The economical H section which helps to reduce the workload of welding and riveting
• A large range of dimensions
• High cost performance

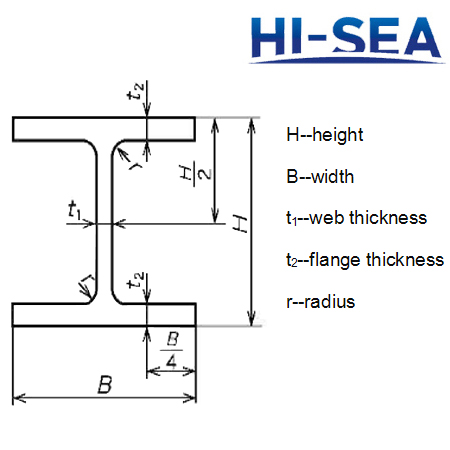

Profile of Japanese H Sections
Dimensions
Model (HกมB) |
Sectional Dimension (mm) |
Sectional Area (cm2) |
Theoretical Weight (kg/m) |
|||
HกมB |
t1 |
t2 |
r |
|||
100กม50 |
100กม50 |
5 |
7 |
8 |
11.85 |
9.30 |
100กม100 |
100กม100 |
6 |
8 |
8 |
21.59 |
16.9 |
125กม60 |
125กม60 |
6 |
8 |
8 |
16.69 |
13.1 |
125กม125 |
125กม125 |
6.5 |
9 |
8 |
30.00 |
23.6 |
150กม75 |
150กม75 |
5 |
7 |
8 |
17.85 |
14.0 |
150กม100 |
148กม100 |
6 |
9 |
8 |
26.35 |
20.7 |
150กม150 |
150กม150 |
7 |
10 |
8 |
39.65 |
31.1 |
175กม90 |
175กม90 |
5 |
8 |
8 |
22.90 |
18.0 |
175กม175 |
175กม175 |
7.5 |
11 |
13 |
51.42 |
40.4 |
200กม100 |
*198กม99 |
4.5 |
7 |
8 |
22.69 |
17.8 |
200กม100 |
5.5 |
8 |
8 |
26.67 |
20.9 |
|
200กม150 |
194กม150 |
6 |
9 |
8 |
38.11 |
29.9 |
200กม200 |
200กม200 |
8 |
12 |
13 |
63.53 |
49.9 |
250กม125 |
*248กม124 |
5 |
8 |
8 |
31.99 |
25.1 |
250กม125 |
6 |
9 |
8 |
36.97 |
29.0 |
|
250กม175 |
244กม175 |
7 |
11 |
13 |
55.49 |
43.6 |
250กม250 |
250กม250 |
9 |
14 |
13 |
91.43 |
71.8 |
300กม150 |
*298กม149 |
5.5 |
8 |
13 |
40.80 |
32.0 |
300กม150 |
6.5 |
9 |
13 |
46.78 |
36.7 |
|
300กม200 |
294กม200 |
8 |
12 |
13 |
71.05 |
55.8 |
300กม300 |
300กม300 |
10 |
15 |
13 |
118.4 |
93.0 |
350กม175 |
*346กม174 |
6 |
9 |
13 |
52.45 |
41.2 |
350กม175 |
7 |
11 |
13 |
62.91 |
49.4 |
|
350กม250 |
340กม250 |
9 |
14 |
13 |
99.53 |
78.1 |
350กม350 |
350กม350 |
12 |
19 |
13 |
171.9 |
135 |
400กม200 |
*396กม199 |
7 |
11 |
13 |
71.41 |
56.1 |
400กม200 |
8 |
13 |
13 |
83.37 |
65.4 |
|
400กม300 |
390กม300 |
10 |
16 |
13 |
133.2 |
105 |
400กม400 |
400กม400 |
13 |
21 |
22 |
218.7 |
172 |
*414กม405 |
18 |
28 |
22 |
295.4 |
232 |
|
*428กม407 |
20 |
35 |
22 |
360.7 |
283 |
|
*458กม417 |
30 |
50 |
22 |
528.6 |
415 |
|
*498กม432 |
45 |
70 |
22 |
770.1 |
605 |
|
450กม200 |
*446กม199 |
8 |
12 |
13 |
82.97 |
65.1 |
450กม200 |
9 |
14 |
13 |
95.43 |
74.9 |
|
450กม300 |
440กม300 |
11 |
18 |
13 |
153.9 |
121 |
500กม200 |
*496กม199 |
9 |
14 |
13 |
99.29 |
77.9 |
500กม200 |
10 |
16 |
13 |
112.2 |
88.2 |
|
500กม300 |
*482กม300 |
11 |
15 |
13 |
141.2 |
111 |
488กม300 |
11 |
18 |
13 |
159.2 |
125 |
|
600กม200 |
*596กม199 |
10 |
15 |
13 |
117.8 |
92.5 |
600กม200 |
11 |
17 |
13 |
131.7 |
1.3 |
|
600กม300 |
*582กม300 |
12 |
17 |
13 |
169.2 |
133 |
588กม300 |
12 |
20 |
13 |
187.2 |
147 |
|
*594กม302 |
14 |
23 |
13 |
217.1 |
170 |
|
700กม300 |
*692กม300 |
13 |
20 |
18 |
207.5 |
163 |
700กม300 |
13 |
24 |
18 |
231.5 |
182 |
|
800กม300 |
*792กม300 |
14 |
22 |
18 |
239.5 |
188 |
800กม300 |
14 |
26 |
18 |
263.5 |
207 |
|
900กม300 |
*890กม299 |
15 |
23 |
18 |
266.9 |
210 |
900กม300 |
16 |
28 |
18 |
305.8 |
240 |
|
*912กม302 |
18 |
34 |
18 |
360.1 |
283 |
|
*918กม303 |
19 |
37 |
18 |
387.4 |
304 |
|
Note |
Excepting dimensions with กฐ*กฑ, the other dimensions are general. |
