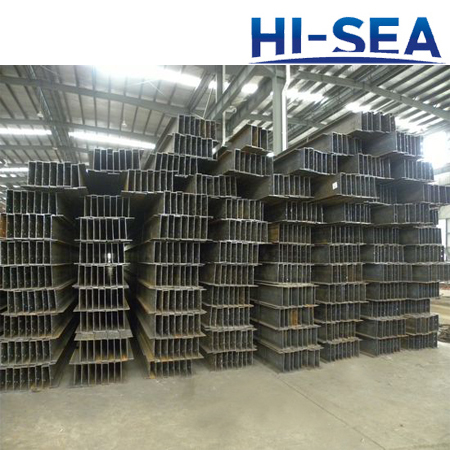

IPE-European I Beams
The IPE-European I beams we provided are a kind of hot rolled sections which are manufactured according to European standards EN 10034 and EN10025. IPE-European I beams are also called ˇ°H-beamsˇ±, ˇ°H-sectionsˇ±, ˇ°steel W section I-beamsˇ± and ˇ°wide flange sectionsˇ±. They are used across a wide range of structural applications from big buildings to ships. IPE-European I beams feature excellent mechanical properties, rational profiles, and less internal stress. Besides, they are standard-sized, well shaped and reliable. We are capable of supplying the beam height in the range of 140~500mm. The available steel grades are S235J0, S235J2, S235JR, S275JR, S275J0, S275J2, S355J0, S355J2, S355JR, S355J2+N. If you have any specific requirements or want to know more details, welcome to contact us. We will try our best to fulfill your requirements.
Features
• To meet European standard EN 10034
• Hot rolled structural steel
• Standard dimensions with little tolerances
• Rational shapes which help to reduce cost and end-product weight
• Full selection of dimensions
• High quality
Profile of IPE-European I Beams
Dimensions
Product |
Dimensions |
||||
Designation |
G kg/m |
h mm |
b mm |
tw mm |
tf mm |
IPE AAAA 140 |
8.1 |
134 |
73 |
3.3 |
4.1 |
IPE AAA 140 |
9.4 |
136 |
73 |
3.5 |
5 |
IPE AA 140 |
9.9 |
136.6 |
73 |
3.8 |
5.2 |
IPE A 140 |
10.4 |
137.4 |
73 |
3.8 |
5.6 |
IPE 140 |
12.8 |
140 |
73 |
4.7 |
6.9 |
IPE AAAA 160 |
9.9 |
154 |
82 |
3.6 |
4.3 |
IPE AAA 160 |
11.4 |
156 |
82 |
3.7 |
5.4 |
IPE AA 160 |
12.0 |
156.4 |
82 |
4 |
5.6 |
IPE A 160 |
12.4 |
157 |
82 |
4 |
5.9 |
IPE 160 |
15.5 |
160 |
82 |
5 |
7.4 |
IPE AAAA 180 |
12.3 |
174 |
91 |
3.9 |
4.9 |
IPE AAA 180 |
13.9 |
176 |
91 |
3.9 |
6 |
IPE AA 180 |
14.7 |
176.4 |
91 |
4.3 |
6.2 |
IPE A 180 |
15.1 |
177 |
91 |
4.3 |
6.5 |
IPE 180 |
18.6 |
180 |
91 |
5.3 |
8 |
IPE O 180 |
21.1 |
182 |
92 |
6 |
9 |
IPE AAAA 200 |
14.3 |
193 |
100 |
4.1 |
5.2 |
IPE AAA 200 |
16.4 |
196 |
100 |
4.1 |
6.5 |
IPE AA 200 |
17.3 |
196.4 |
100 |
4.5 |
6.7 |
IPE A 200 |
17.8 |
197 |
100 |
4.5 |
7 |
IPE 200 |
21.8 |
200 |
100 |
5.6 |
8.5 |
IPE O 200 |
24.6 |
202 |
102 |
6.2 |
9.5 |
IPE AA 220 |
20.6 |
216 |
110 |
4.7 |
7.4 |
IPE A 220 |
21.6 |
217 |
110 |
5 |
7.7 |
IPE 200 |
25.7 |
220 |
110 |
5.9 |
9.2 |
IPE O 220 |
29.0 |
222 |
112 |
6.6 |
10.2 |
IPE AA 240 |
23.9 |
236.4 |
120 |
4.8 |
8 |
IPE A 240 |
25.1 |
237 |
120 |
5.2 |
8.3 |
IPE 240 |
29.8 |
240 |
120 |
6.2 |
9.8 |
IPE O 240 |
33.5 |
242 |
122 |
7 |
10.8 |
IPE A 270 |
29.8 |
267 |
135 |
5.5 |
8.7 |
IPE 270 |
35.2 |
270 |
135 |
6.6 |
10.2 |
IPE O 270 |
41.6 |
274 |
136 |
7.5 |
12.2 |
IPE A 300 |
35.7 |
297 |
150 |
6.1 |
9.2 |
IPE 300 |
41.5 |
300 |
150 |
7.1 |
10.7 |
IPE O 300 |
48.7 |
304 |
152 |
8 |
12.7 |
IPE A 330 |
41.6 |
327 |
160 |
6.5 |
10 |
IPE 330 |
47.9 |
330 |
160 |
7.5 |
11.5 |
IPE O 330 |
55.9 |
334 |
162 |
8.5 |
13.5 |
IPE A 360 |
49.0 |
357.6 |
17. |
6.6 |
11.5 |
IPE 360 |
56.0 |
360 |
170 |
8 |
12.7 |
IPE O 360 |
65.1 |
364 |
172 |
9.2 |
14.7 |
IPE A 400 |
55.5 |
397 |
180 |
7 |
12 |
IPE 400 |
64.6 |
400 |
180 |
8.6 |
13.5 |
IPE O 400 |
74.1
|
404 |
182 |
9.7 |
15.5 |
IPE A 450 |
65.4 |
447 |
190 |
7.6 |
13.1 |
IPE 450 |
76.1 |
450 |
190 |
9.4 |
14.6 |
IPE O 450 |
91.1 |
456 |
192 |
11 |
17.6 |
IPE A 500 |
77.9 |
497 |
200 |
8.4 |
14.5 |
IPE 500 |
89.4 |
500 |
200 |
10.2 |
16 |
IPE O 500 |
106.4 |
506 |
202 |
12 |
19 |
