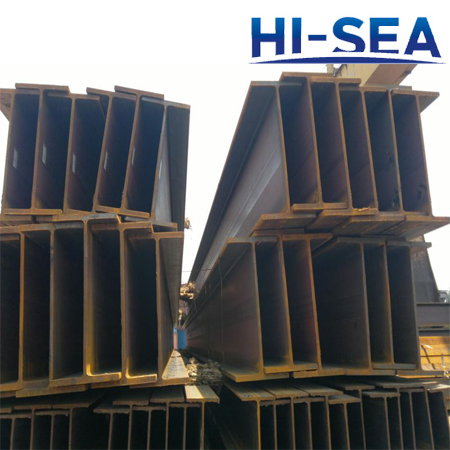

HE-European Wide Flange Beams
The wide flange beam we provided is a kind of hot rolled section which is manufactured according to European standards EN 10034 and EN10025. Wide flange beams are also called ˇ°H-beamsˇ±, ˇ°H-sectionsˇ±, ˇ°steel W section I-beamsˇ±. They are used across a wide range of structural applications from big buildings to ships. HE-European wide flange beams feature excellent mechanical properties, rational profiles, and less internal stress. Besides, they are standard-sized, well shaped and reliable. We are capable of supplying the beam height in the range of 100~500mm. The available steel grades are S235J0, S235J2, S235JR, S275J0, S275J2, S275JR, S355J0, S355J2, S355JR, S355J2+N. If you have any specific requirements or want to know more details, welcome to contact us. We will try our best to fulfill your requirements.
Features
• To meet European standard EN 10034
• Hot rolled structural steel
• Standard dimensions with little tolerances
• Rational shapes which help to reduce cost and end-product weight
• Full selection of dimensions
• High quality
Profile of HE-European Wide Flange Beams
Some Available Dimensions
Product |
Dimensions |
||||
Designation |
G Kg/m |
h mm |
b mm |
tw mm |
tf mm |
HE 140AA |
17.5 |
128 |
140 |
4.3 |
6 |
HE 140A |
24.2 |
133 |
140 |
5.5 |
8.5 |
HE 140B |
33.4 |
140 |
140 |
7 |
12 |
HE 140 M |
63.5 |
160 |
146 |
13 |
22 |
HE 160AA |
22.8 |
148 |
160 |
4.5 |
7 |
HE 160A |
29.5 |
152 |
160 |
4.5 |
7 |
HE 160B |
41.9 |
160 |
160 |
8 |
13 |
HE 160M |
76.1 |
180 |
166 |
14 |
23 |
HE 180AA |
27.7 |
167 |
180 |
5 |
7.5 |
HE 180A |
34.7 |
171 |
180 |
6 |
9.5 |
HE 180B |
50.7 |
180 |
180 |
8.5 |
14 |
HE 180M |
89.1 |
200 |
186 |
14.5 |
24 |
HE 200AA |
33.1 |
186 |
200 |
5.5 |
8 |
HE 200A |
40.9 |
190 |
200 |
6.5 |
10 |
HE 200B |
60.3 |
200 |
200 |
9 |
15 |
HE 200M |
102.8 |
220 |
206 |
15 |
25 |
HE 220AA |
39 |
205 |
220 |
6 |
8.5 |
HE 220A |
49.3 |
210 |
220 |
7 |
11 |
HE 220B |
70.6 |
220 |
220 |
9.5 |
16 |
HE 220M |
117.4 |
240 |
226 |
15.5 |
26 |
HE 240AA |
45.3 |
224 |
240 |
6.5 |
9 |
HE 240A |
58.5 |
230 |
240 |
7.5 |
12 |
HE 240B |
81.8 |
240 |
240 |
10 |
17 |
HE 240M |
159.7 |
270 |
248 |
18 |
32 |
HE 260AA |
51.2 |
244 |
260 |
6.5 |
9.5 |
HE 260A |
65.5 |
250 |
260 |
7.5 |
12.5 |
HE 260B |
90.8 |
260 |
260 |
10 |
17.5 |
HE 260M |
171.8 |
290 |
268 |
18 |
32.5 |
HE 280AA |
58.5 |
264 |
280 |
7 |
10 |
HE 280A |
73.9 |
270 |
280 |
8 |
13 |
HE 280B |
101.2 |
280 |
280 |
10.5 |
18 |
HE 280M |
188.2 |
310 |
288 |
18.5 |
33 |
HE 300AA |
66.1 |
283 |
300 |
7.5 |
18.5 |
HE 300A |
85 |
290 |
300 |
8.5 |
14 |
HE 300B |
114.3 |
300 |
300 |
11 |
19 |
Note |
The available dimensions provided are in the range of HE140AA~HE 500M. As space is limited, some dimensions are not described. More details, please contact us. |
