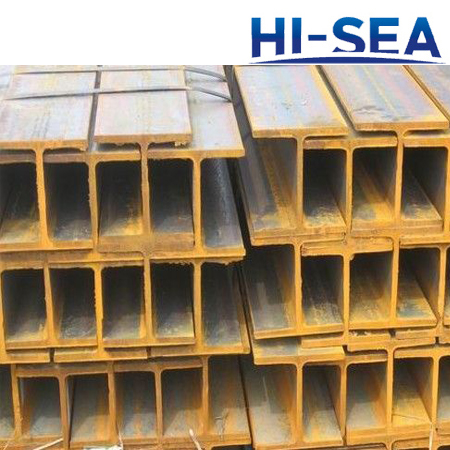

British Universal Columns
Universal columns are also called ¡°I-sections¡±, ¡°H-sections¡±, ¡°H-beams¡±, and ¡°wide flange beams¡±. They are the most often used section for structural steel purposes, such as big buildings, bridges, ships... British universal columns provided are manufactured according to British standard BS 4-1, BS4360 and EN10034. The British universal columns feature that their width is roughly equal to their depth. They have excellent mechanical properties, rational profiles, and less internal stress. Besides, they are standard-sized, well shaped and reliable. The British universal column can be described as 152¡Á152¡Á23, which means that its depth and width is 152mm and the mass per metre is 23 kilograms. We provide you full selection of UC dimensions. The available steel grades are 40B, 50B, 50C, 55C, S450J0. If you have any specific requirements or want to know more details, welcome to contact us. We will try our best to fulfill your requirements.
Features
• In line with British standard BS 4-1, BS4360 and European standard EN10034
• To be made of 40B, 50B, 50C, 55C, S450J0
• Hot-rolled structural steel sections
• Full selection of dimensions
• Excellent mechanical properties, Well-shaped and reliable

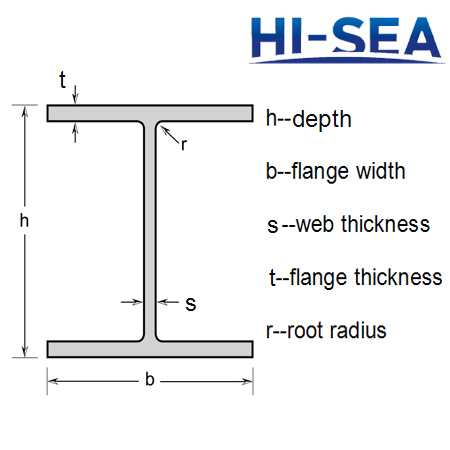

Profile of British Universal Columns
Dimensions
Section Designation |
Mass per Unit Length kg/m |
Depth h mm |
Width b mm |
Web s mm |
Flange t mm |
Root Radius r mm |
UC 152¡Á152¡Á23 |
23.0 |
152.4 |
152.2 |
5.8 |
6.8 |
7.6 |
UC 152¡Á152¡Á30 |
30.0 |
157.6 |
152.9 |
6.5 |
9.4 |
7.6 |
UC 152¡Á152¡Á37 |
37.0 |
161.8 |
154.4 |
8.0 |
11.5 |
7.6 |
UC 203¡Á203¡Á46 |
46.1 |
203.2 |
203.6 |
7.2 |
11.0 |
10.2 |
UC 203¡Á203¡Á52 |
52.0 |
206.2 |
204.3 |
7.9 |
12.5 |
10.2 |
UC 203¡Á203¡Á60 |
60.0 |
209.6 |
205.8 |
9.4 |
14.2 |
10.2 |
UC 203¡Á203¡Á71 |
71.0 |
215.8 |
206.4 |
10.0 |
17.3 |
10.2 |
UC 203¡Á203¡Á86 |
86.1 |
222.2 |
209.1 |
12.7 |
20.5 |
10.2 |
UC 254¡Á254¡Á73 |
73.1 |
254.1 |
254.6 |
8.6 |
14.2 |
12.7 |
UC 254¡Á254¡Á89 |
88.9 |
260.3 |
256.3 |
10.3 |
17.3 |
12.7 |
UC 254¡Á254¡Á107 |
107.1 |
266.7 |
258.8 |
12.8 |
20.5 |
12.7 |
UC 254¡Á254¡Á132 |
132.0 |
276.3 |
261.3 |
15.3 |
25.3 |
12.7 |
UC 254¡Á254¡Á167 |
167.1 |
289.1 |
265.2 |
19.2 |
31.7 |
12.7 |
UC 305¡Á305¡Á97 |
96.9 |
307.9 |
305.3 |
9.9 |
15.4 |
15.2 |
UC 305¡Á305¡Á118 |
117.9 |
314.5 |
307.4 |
12.0 |
18.7 |
15.2 |
UC 305¡Á305¡Á137 |
136.9 |
320.5 |
309.2 |
13.8 |
21.7 |
15.2 |
UC 305¡Á305¡Á158 |
158.1 |
327.1 |
311.2 |
15.8 |
25.0 |
15.2 |
UC 305¡Á305¡Á198 |
198.1 |
339.9 |
314.5 |
19.1 |
31.4 |
15.2 |
UC 305¡Á305¡Á240 |
240.0 |
352.5 |
318.4 |
23.0 |
37.7 |
15.2 |
UC 305¡Á305¡Á283 |
282.9 |
365.3 |
322.2 |
26.8 |
44.1 |
15.2 |
UC 356¡Á368¡Á129 |
129.0 |
355.6 |
368.6 |
10.4 |
17.5 |
15.2 |
UC 356¡Á368¡Á153 |
152.9 |
362.0 |
370.5 |
12.3 |
20.7 |
15.2 |
UC 356¡Á368¡Á177 |
177.0 |
368.2 |
372.6 |
14.4 |
23.8 |
15.2 |
UC 356¡Á368¡Á202 |
201.9 |
374.6 |
374.7 |
16.5 |
27.0 |
15.2 |
UC 356¡Á406¡Á235 |
235.1 |
381.0 |
394.8 |
18.4 |
30.2 |
15.2 |
UC 356¡Á406¡Á287 |
287.1 |
393.6 |
399.0 |
22.6 |
36.5 |
15.2 |
UC 356¡Á406¡Á340 |
339.9 |
406.4 |
403.0 |
26.6 |
42.9 |
15.2 |
UC 356¡Á406¡Á393 |
393.0 |
419.0 |
407.0 |
30.6 |
49.2 |
15.2 |
UC 356¡Á406¡Á467 |
467.0 |
436.6 |
412.2 |
35.8 |
58.0 |
15.2 |
UC 356¡Á406¡Á551 |
551.0 |
455.6 |
418.5 |
42.1 |
67.5 |
15.2 |
UC 356¡Á406¡Á634 |
633.9 |
474.6 |
424.0 |
47.6 |
77.0 |
15.2 |
Note |
The masses per metre are calculated from the cross-sectional area on the basis of 0.785kg/cm2 per metre run. |
