European Standard Unequal Leg Angles
The unequal leg angle is the angle with different leg length. Unequal leg angles are described by giving both leg length (longer first) and the wall thickness (all in mm), eg. 40กม20กม4. The European standard unequal leg angles are made of structural steel and engineering steel, including following steel grades: S185, S235, S275, S355, S450, E295,E355, E360... They are produced by Chinese excellent steel mills according to European standard EN 10056. We provide you a full selection of dimensions. If you have any specific requirements, welcome to contact us. The European standard unequal leg angles can be used for shipbuilding, bridges, large buildings, power transmission towers... In addition to the European standard unequal leg angles, we also supply European standard equal leg angles, Chinese standard steel angles, Japanese standard steel angles, American standard steel angles, stainless steel angles, galvanized steel angles... If you want to know more details, please contact us!
Features of European Standard Unequal Leg Angles
• To comply with EN 10025 and EN 10056
• Made of structural steel, engineering steel or marine steel
• A wide range of dimensions
• Fast delivery
• Precision-made, reliable and economical

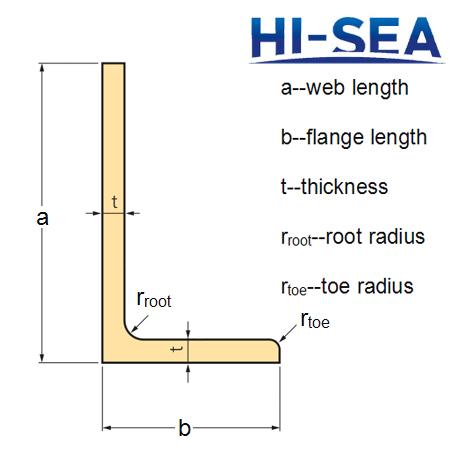

Profile of European Standard Unequal Leg Angles
Dimensions of European Standard Unequal Leg Angles
Designation |
Mass kg/m |
Sectional Area cm2 |
Dimensions |
|||
a mm |
b mm |
t mm |
rroot mm |
|||
30กม20กม3 |
1.12 |
1.43 |
30 |
20 |
3 |
4 |
30กม20กม4 |
1.46 |
1.86 |
30 |
20 |
4 |
4 |
40กม20กม4 |
1.77 |
2.26 |
40 |
20 |
4 |
4 |
40กม25กม4 |
1.93 |
2.46 |
40 |
25 |
4 |
4 |
45กม30กม4 |
2.25 |
2.87 |
45 |
30 |
4 |
4.5 |
50กม30กม5 |
2.96 |
3.78 |
50 |
30 |
5 |
5 |
60กม30กม5 |
3.36 |
4.28 |
60 |
30 |
5 |
5 |
60กม40กม5 |
3.76 |
4.79 |
60 |
40 |
5 |
6 |
60กม40กม6 |
4.46 |
5.68 |
60 |
40 |
6 |
6 |
65กม50กม5 |
4.35 |
5.54 |
65 |
50 |
5 |
6 |
70กม50กม6 |
5.41 |
6.89 |
70 |
50 |
6 |
7 |
75กม50กม6 |
5.65 |
7.19 |
75 |
50 |
6 |
7 |
75กม50กม8 |
7.39 |
9.41 |
75 |
50 |
8 |
7 |
80กม40กม6 |
5.41 |
6.89 |
80 |
40 |
6 |
7 |
80กม40กม8 |
7.07 |
9.01 |
80 |
40 |
8 |
7 |
100กม50กม6 |
6.84 |
8.71 |
100 |
50 |
6 |
8 |
100กม50กม8 |
8.97 |
11.4 |
100 |
50 |
8 |
8 |
100กม65กม7 |
8.77 |
11.2 |
100 |
65 |
7 |
10 |
100กม65กม8 |
9.94 |
12.7 |
100 |
65 |
8 |
10 |
100กม65กม10 |
12.3 |
15.6 |
100 |
65 |
10 |
10 |
100กม75กม8 |
10.6 |
13.5 |
100 |
75 |
8 |
10 |
100กม75กม10 |
13.0 |
16.6 |
100 |
75 |
10 |
10 |
100กม75กม12 |
15.4 |
19.7 |
100 |
75 |
12 |
10 |
120กม80กม8 |
12.2 |
15.5 |
120 |
80 |
8 |
11 |
120กม80กม10 |
15.0 |
19.1 |
120 |
80 |
10 |
11 |
120กม80กม12 |
17.8 |
22.7 |
120 |
80 |
12 |
11 |
125กม75กม8 |
12.2 |
15.5 |
125 |
75 |
8 |
11 |
125กม75กม10 |
15.0 |
19.1 |
125 |
75 |
10 |
11 |
125กม75กม12 |
17.8 |
22.7 |
125 |
75 |
12 |
11 |
135กม65กม8 |
12.2 |
15.5 |
135 |
65 |
8 |
11 |
135กม65กม10 |
15.0 |
19.1 |
135 |
65 |
10 |
11 |
150กม75กม9 |
15.4 |
19.6 |
150 |
75 |
9 |
12 |
150กม75กม10 |
17.0 |
21.7 |
150 |
75 |
10 |
12 |
150กม75กม12 |
20.2 |
25.7 |
150 |
75 |
12 |
12 |
150กม75กม15 |
24.8 |
31.7 |
150 |
75 |
15 |
12 |
150กม90กม10 |
18.2 |
23.2 |
150 |
90 |
10 |
12 |
150กม90กม12 |
21.6 |
27.5 |
150 |
90 |
12 |
12 |
150กม90กม15 |
26.6 |
33.9 |
150 |
90 |
15 |
12 |
150กม100กม10 |
19.0 |
24.2 |
150 |
100 |
10 |
12 |
150กม100กม12 |
22.5 |
28.7 |
150 |
100 |
12 |
12 |
200กม100กม10 |
23.0 |
29.2 |
200 |
100 |
10 |
15 |
200กม100กม12 |
27.3 |
34.8 |
200 |
100 |
12 |
15 |
200กม100กม15 |
33.75 |
43.0 |
200 |
100 |
15 |
15 |
200กม150กม12 |
32.0 |
40.8 |
200 |
150 |
12 |
15 |
200กม150กม15 |
39.6 |
50.5 |
200 |
150 |
15 |
15 |
Note |
The length of the unequal leg angles can be customized. |
