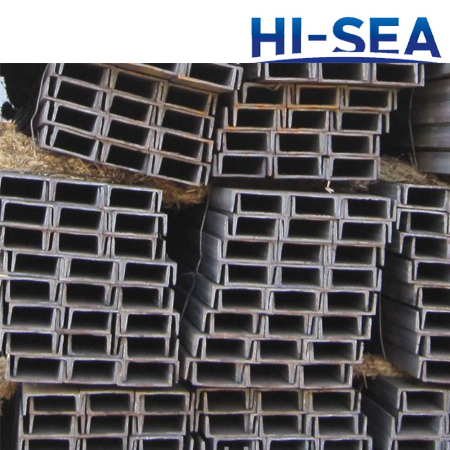

Steel Channels for Shipbuilding
The steel channels are hot rolled which are mainly used for shipbuilding. The steel channels also are called U-shaped sections. They are hot-rolled, high quality, standard-sized and well-shaped. The steel channels are described by their height, width and thickness, eg. 120¡Á53¡Á5.5. The mainly size range is as following: height in the range of 30~400mm, flange width in the range of 15~110mm, the web thickness in the range of 4~15mm. We are capable of supplying steel channels in line with various standards, such as Chinese Standard GB/T 706-2008, American Standard, European Standard... The steel grades of channels for shipbuilding can be customized as your requirement. If you are interested in our products, welcome to contact us! We will reply you soon.
Features
• Standard specifications, with marginal tolerances
• Wide range of steel grades and dimensions
• Excellent riveting and weldability
• Cost and time savings by eliminating the need for fabrication work and multiple handing
• To reduce finished products¡¯ weight
American Standard Dimensions of Steel Channels for Shipbuilding
Sizes In Inches |
Wt. In Lbs. Per Ft. |
Depth In Inches |
Flange Width In Inches |
Flange Thick. In Inches |
Web. Thick. In Inches |
Est. Wt. In Lbs. Stock Length |
|
20¡¯ |
40¡¯ |
||||||
C3¡Á |
4.1 |
3 |
13/8 |
1/4 |
3/16 |
82 |
164 |
5.0 |
3 |
11/2 |
1/4 |
1/4 |
100 |
200 |
|
6.0 |
3 |
15/8 |
1/4 |
3/8 |
120 |
240 |
|
C4¡Á |
5.4 |
4 |
15/8 |
5/16 |
3/16 |
108 |
216 |
7.25 |
4 |
13/4 |
5/16 |
5/16 |
145 |
290 |
|
C5¡Á |
6.7 |
5 |
13/4 |
5/16 |
3/16 |
134 |
268 |
9.0 |
5 |
17/8 |
5/16 |
5/16 |
180 |
360 |
|
C6¡Á |
8.2 |
6 |
17/8 |
5/16 |
3/16 |
164 |
328 |
10.5 |
6 |
2 |
5/16 |
5/16 |
210 |
420 |
|
13.0 |
6 |
21/8 |
5/16 |
7/16 |
260 |
520 |
|
C7¡Á |
9.8 |
7 |
21/8 |
3/8 |
3/16 |
196 |
392 |
12.25 |
7 |
21/4 |
3/8 |
5/16 |
245 |
490 |
|
14.75 |
7 |
21/4 |
3/8 |
7/16 |
295 |
590 |
|
C8¡Á |
11.5 |
8 |
21/4 |
3/8 |
1/4 |
230 |
460 |
13.75 |
8 |
23/8 |
3/8 |
5/16 |
275 |
550 |
|
18.75 |
8 |
21/2 |
3/8 |
1/2 |
375 |
750 |
|
C9¡Á |
13.4 |
9 |
23/8 |
7/16 |
1/4 |
268 |
536 |
15.0 |
9 |
21/2 |
7/16 |
5/16 |
300 |
600 |
|
20.0 |
9 |
25/8 |
7/16 |
7/16 |
400 |
800 |
|
C10¡Á |
15.3 |
10 |
25/8 |
7/16 |
1/4 |
306 |
612 |
20.0 |
10 |
23/4 |
7/16 |
3/8 |
400 |
800 |
|
25.0 |
10 |
27/8 |
7/16 |
1/2 |
500 |
1000 |
|
30.0 |
10 |
3 |
7/16 |
11/16 |
600 |
1200 |
|
C12¡Á |
20.7 |
12 |
3 |
1/2 |
5/16 |
414 |
828 |
25.0 |
12 |
3 |
1/2 |
3/8 |
500 |
1000 |
|
30.0 |
12 |
31/8 |
1/2 |
1/2 |
600 |
1200 |
|
C15¡Á |
33.9 |
15 |
33/8 |
5/8 |
3/8 |
678 |
1356 |
40.0 |
15 |
31/2 |
5/8 |
1/2 |
800 |
1600 |
|
50.0 |
15 |
33/4 |
5/8 |
11/16 |
1000 |
2000 |
