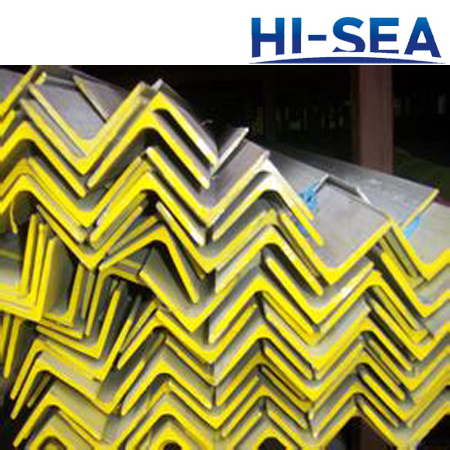

European Standard Steel Angles
The steel angles are a sort of steel sections which are used for shipbuilding, bridges, buildings and so on. The steel angles are also called กฐL shapesกฑ. We are able to provide three types of steel angles: equal leg angles, unequal leg angles and unequal leg and thickness angles. The materials of the steel angles include BVA, BVB, BVD, BVE, BV AH32, S185, S235JR, S235J0, S235J2, S275, S355JR... For the steel angles made of marine steel, we are able to provide the certificates from leading classification societies. We provide a wide range of materials and dimensions, and if you have any specific requirements, we will try our best to fulfill you. excepting European Standard Steel Angles, we also supply Chinese standard steel angles, Japanese standard steel angles, American standard steel angles, stainless steel angles, galvanized steel angles, marine steel angles, hot rolled steel angles... If you are interested in our products, welcome to contact us!
Features of European Standard Steel Angles
• To meet the requirements of EN10056, EN10025
• A full selection of steel grades and dimensions
• High reliability and excellent mechanical properties
• high cost performance, standard-sized with tiny tolerances

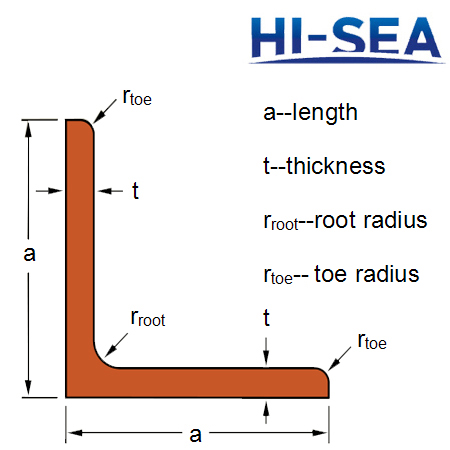

Profile of European Standard Equal Leg Angles
Dimensions of European Standard Equal Leg Angles
Designation |
Mass kg/m |
Sectional Area cm2 |
Dimensions |
||
a mm |
t mm |
rroot mm |
|||
20กม20กม3 |
0.882 |
1.12 |
20 |
3 |
3.5 |
25กม25กม3 |
1.12 |
1.42 |
25 |
3 |
3.5 |
25กม25กม4 |
1.45 |
1.85 |
25 |
4 |
3.5 |
30กม30กม3 |
1.36 |
1.74 |
30 |
3 |
5 |
30กม30กม4 |
1.78 |
2.27 |
30 |
4 |
5 |
35กม35กม4 |
2.09 |
2.67 |
35 |
4 |
5 |
40กม40กม4 |
2.42 |
3.08 |
40 |
4 |
6 |
40กม40กม5 |
2.97 |
3.79 |
40 |
5 |
6 |
45กม45กม4.5 |
3.06 |
3.90 |
45 |
4.5 |
7 |
50กม50กม4 |
3.06 |
3.89 |
50 |
4 |
7 |
50กม50กม5 |
3.77 |
4.80 |
50 |
5 |
7 |
50กม50กม6 |
4.47 |
5.69 |
50 |
6 |
7 |
60กม60กม5 |
4.57 |
5.82 |
60 |
5 |
8 |
60กม60กม6 |
5.42 |
6.91 |
60 |
6 |
8 |
60กม60กม8 |
7.09 |
9.03 |
60 |
8 |
8 |
65กม65กม7 |
6.83 |
8.7 |
65 |
7 |
9 |
70กม70กม6 |
6.38 |
8.13 |
70 |
6 |
9 |
70กม70กม7 |
7.38 |
9.40 |
70 |
7 |
9 |
75กม75กม6 |
6.85 |
8.73 |
75 |
6 |
9 |
75กม75กม8 |
8.99 |
11.4 |
75 |
8 |
9 |
80กม80กม8 |
9.63 |
12.3 |
80 |
8 |
10 |
80กม80กม10 |
11.9 |
15.1 |
80 |
10 |
10 |
90กม90กม7 |
9.61 |
12.2 |
90 |
7 |
11 |
90กม90กม8 |
10.9 |
13.9 |
90 |
8 |
11 |
90กม90กม9 |
12.2 |
15.5 |
90 |
9 |
11 |
90กม90กม10 |
13.4 |
17.1 |
90 |
10 |
11 |
More Dimensions of European Standard Equal Leg Angles

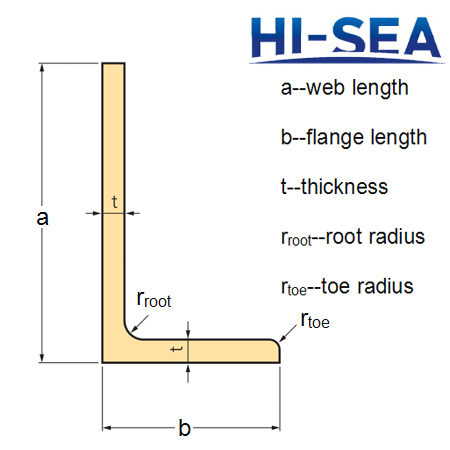

Profile of European Standard Unequal Leg Angles
Dimensions of European Standard Unequal Leg Angles
Designation |
Mass kg/m |
Sectional Area cm2 |
Dimensions |
|||
a mm |
b mm |
t mm |
rroot mm |
|||
30กม20กม3 |
1.12 |
1.43 |
30 |
20 |
3 |
4 |
30กม20กม4 |
1.46 |
1.86 |
30 |
20 |
4 |
4 |
40กม20กม4 |
1.77 |
2.26 |
40 |
20 |
4 |
4 |
40กม25กม4 |
1.93 |
2.46 |
40 |
25 |
4 |
4 |
45กม30กม4 |
2.25 |
2.87 |
45 |
30 |
4 |
4.5 |
50กม30กม5 |
2.96 |
3.78 |
50 |
30 |
5 |
5 |
60กม30กม5 |
3.36 |
4.28 |
60 |
30 |
5 |
5 |
60กม40กม5 |
3.76 |
4.79 |
60 |
40 |
5 |
6 |
60กม40กม6 |
4.46 |
5.68 |
60 |
40 |
6 |
6 |
65กม50กม5 |
4.35 |
5.54 |
65 |
50 |
5 |
6 |
70กม50กม6 |
5.41 |
6.89 |
70 |
50 |
6 |
7 |
75กม50กม6 |
5.65 |
7.19 |
75 |
50 |
6 |
7 |
75กม50กม8 |
7.39 |
9.41 |
75 |
50 |
8 |
7 |
80กม40กม6 |
5.41 |
6.89 |
80 |
40 |
6 |
7 |
80กม40กม8 |
7.07 |
9.01 |
80 |
40 |
8 |
7 |
100กม50กม6 |
6.84 |
8.71 |
100 |
50 |
6 |
8 |
100กม50กม8 |
8.97 |
11.4 |
100 |
50 |
8 |
8 |
100กม65กม7 |
8.77 |
11.2 |
100 |
65 |
7 |
10 |
More Dimensions of European Standard Unequal Leg Angles
