Shipbuilding L-Section Steel
The shipbuilding L-section steel is a sort of steel angles used for shipbuilding. The shipbuilding L-section steel is suitable for both civil ships and warships. We are capable of supplying shipbuilding L-section steel made of CCS A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40 or other equivalent steel grades certified by leading classification societies. We provide you full selection of dimensions. If you have any specific requirements, we can customize products for you. The shipbuilding L-section steel is produced by Chinese top steel mills in accordance with GB/T 706-2008 or JIS G3192-2008. The L-section steel features excellent mechanical properties, good weldability, high reliablity and long service life. If you are interested in our shipbuilding L-section steel, welcome to contact us for more details. We will try our best to fulfill your requirements.
Reasons for Choosing Hi-Sea:
• High quality products certified by leading classification societies, such as CCS, ABS, BV, LR, NK, KR...
• A wide range of marine goods, satisfying your different requirements
• Abundant stock
• Enthusiastic service
• Fast delivery
• Rich experience in import and export trade
Dimensions of Chinese Shipbuilding L-Section Steel
Type |
Sectional Dimension (mm) |
Sectional Area (cm2) |
Nominal Weight (kg/m) |
|||||
B |
b |
D |
d |
r |
r1 |
|||
L250กม90กม9กม13 |
250 |
90 |
9 |
13 |
15 |
7.5 |
33.4 |
26.2 |
L250กม90กม10.5กม15 |
10.5 |
15 |
38.5 |
30.3 |
||||
L250กม90กม11.5กม16 |
11.5 |
16 |
41.7 |
32.7 |
||||
L300กม100กม10.5กม15 |
300 |
100 |
10.5 |
15 |
45.3 |
35.6 |
||
L300กม100กม11.5กม16 |
11.5 |
16 |
49.0 |
38.5 |
||||
L350กม120กม10.5กม16 |
350 |
120 |
10.5 |
16 |
20 |
10 |
54.9 |
43.1 |
L350กม120กม11.5กม18 |
11.5 |
18 |
60.4 |
47.4 |
||||
L400กม120กม11.5กม23 |
400 |
120 |
11.5 |
23 |
71.6 |
56.2 |
||
L450กม120กม11.5กม25 |
450 |
120 |
11.5 |
25 |
79.5 |
62.4 |
||
L500กม120กม12.5กม33 |
500 |
120 |
12.5 |
33 |
98.6 |
77.4 |
||
L500กม120กม13.5กม35 |
13.5 |
35 |
105.0 |
82.8 |
Dimensions of Japanese Shipbuilding L-Section Steel
Type |
Nominal Weight M (kg/m) |
Sectional Area A (cm2)
|
Sectional Dimension |
|||||
H |
B |
t |
T |
R |
r |
|||
L200กม90กม9กม12 |
22.0 |
28.1 |
200 |
90 |
9 |
12 |
15 |
7.5 |
L225กม90กม9กม12 |
23.8 |
30.3 |
225 |
90 |
9 |
12 |
15 |
7.5 |
L250กม90กม9กม13 |
26.2 |
33.4 |
250 |
90 |
9 |
13 |
15 |
7.5 |
L250กม90กม10.5กม15 |
30.3 |
38.5 |
250 |
90 |
10.5 |
15 |
15 |
7.5 |
L250กม90กม11.5กม16 |
32.7 |
41.7 |
250 |
90 |
11.5 |
16 |
15 |
7.5 |
L275กม100กม10.5กม14 |
32.8 |
41.8 |
275 |
100 |
10.5 |
14 |
15 |
7.5 |
L300กม100กม10.5กม15 |
35.6 |
45.3 |
300 |
100 |
10.5 |
15 |
15 |
7.5 |
L300กม100กม11.5กม16 |
38.5 |
49.0 |
300 |
100 |
11.5 |
16 |
15 |
7.5 |
L325กม120กม10.5กม14 |
39.3 |
50.1 |
325 |
120 |
10.5 |
14 |
20 |
10 |
L325กม120กม11.5กม15 |
42.6 |
54.3 |
325 |
120 |
11.5 |
15 |
20 |
10 |
L350กม120กม10.5กม16 |
43.1 |
54.9 |
350 |
120 |
10.5 |
16 |
20 |
10 |
L350กม120กม11.5กม18 |
47.4 |
60.4 |
350 |
120 |
11.5 |
18 |
20 |
10 |
L375กม120กม10.5กม18 |
46.9 |
59.7 |
375 |
120 |
10.5 |
18 |
20 |
10 |
L375กม120กม11.5กม20 |
51.4 |
65.4 |
375 |
120 |
11.5 |
20 |
20 |
10 |
L400กม120กม11.5กม23 |
56.2 |
71.6 |
400 |
120 |
11.5 |
23 |
20 |
10 |
L425กม120กม11.5กม23 |
59.3 |
75.5 |
425 |
120 |
11.5 |
24 |
20 |
10 |
L450กม120กม11.5กม25 |
62.4 |
79.5 |
450 |
120 |
11.5 |
25 |
20 |
10 |
L475กม120กม11.5กม28 |
67.2 |
85.6 |
475 |
120 |
11.5 |
28 |
20 |
10 |
L475กม120กม12.5กม30 |
72.4 |
92.2 |
475 |
120 |
12.5 |
30 |
20 |
10 |
L500กม120กม12.5กม33 |
77.4 |
98.6 |
500 |
120 |
12.5 |
33 |
20 |
10 |
L500กม120กม13.5กม35 |
82.8 |
105 |
500 |
120 |
13.5 |
35 |
20 |
10 |

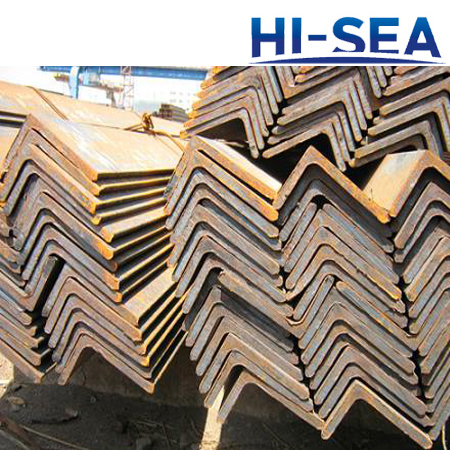

Shipbuilding L-Section Steel

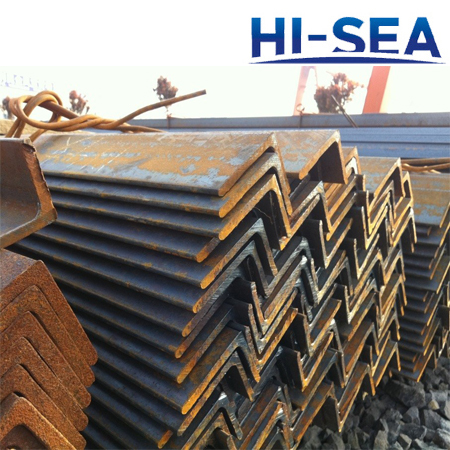

Shipbuilding L-Section Steel
