Marine American Standard Steel Channels
Marine American standard steel channels are a sort of finished long steel products representing a solid U-shaped metal section produced with various steel grades under American standard. The marine American standard steel channels are suitable for shipbuilding uses. They have good weldability, excellent riveting and commendably comprehensive mechanical properties. The steel channels are cost and time savings by eliminating the need for fabrication work and multiple handing. Besides, using steel channels will help to reduce end-product weight. We provide you full selection of channels¡¯ dimension. If you have any specific requirements, we can fulfill you. If you are interested in our steel channels, welcome to contact us.
Features
• Standard specifications, with marginal tolerances
• Wide range of steel grades and dimensions
• Excellent riveting and weldability
• Cost and time savings by eliminating the need for fabrication work and multiple handing
• To reduce finished products¡¯ weight

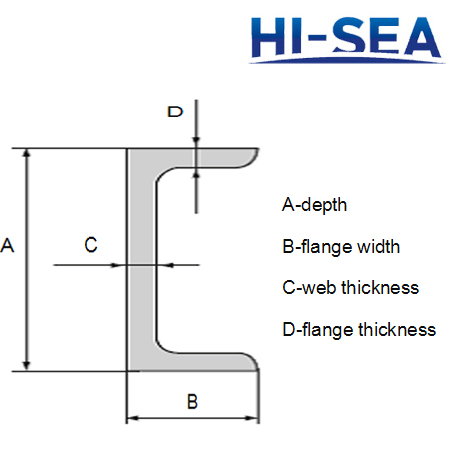

Profile of Marine American Standard Steel Channels
Available Dimensions
Sizes In Inches |
Wt. In Lbs. Per Ft. |
Depth In Inches |
Flange Width In Inches |
Flange Thick. In Inches |
Web. Thick. In Inches |
Est. Wt. In Lbs. Stock Length |
|
20¡¯ |
40¡¯ |
||||||
C3¡Á |
4.1 |
3 |
13/8 |
1/4 |
3/16 |
82 |
164 |
5.0 |
3 |
11/2 |
1/4 |
1/4 |
100 |
200 |
|
6.0 |
3 |
15/8 |
1/4 |
3/8 |
120 |
240 |
|
C4¡Á |
5.4 |
4 |
15/8 |
5/16 |
3/16 |
108 |
216 |
7.25 |
4 |
13/4 |
5/16 |
5/16 |
145 |
290 |
|
C5¡Á |
6.7 |
5 |
13/4 |
5/16 |
3/16 |
134 |
268 |
9.0 |
5 |
17/8 |
5/16 |
5/16 |
180 |
360 |
|
C6¡Á |
8.2 |
6 |
17/8 |
5/16 |
3/16 |
164 |
328 |
10.5 |
6 |
2 |
5/16 |
5/16 |
210 |
420 |
|
13.0 |
6 |
21/8 |
5/16 |
7/16 |
260 |
520 |
|
C7¡Á |
9.8 |
7 |
21/8 |
3/8 |
3/16 |
196 |
392 |
12.25 |
7 |
21/4 |
3/8 |
5/16 |
245 |
490 |
|
14.75 |
7 |
21/4 |
3/8 |
7/16 |
295 |
590 |
|
C8¡Á |
11.5 |
8 |
21/4 |
3/8 |
1/4 |
230 |
460 |
13.75 |
8 |
23/8 |
3/8 |
5/16 |
275 |
550 |
|
18.75 |
8 |
21/2 |
3/8 |
1/2 |
375 |
750 |
|
C9¡Á |
13.4 |
9 |
23/8 |
7/16 |
1/4 |
268 |
536 |
15.0 |
9 |
21/2 |
7/16 |
5/16 |
300 |
600 |
|
20.0 |
9 |
25/8 |
7/16 |
7/16 |
400 |
800 |
|
C10¡Á |
15.3 |
10 |
25/8 |
7/16 |
1/4 |
306 |
612 |
20.0 |
10 |
23/4 |
7/16 |
3/8 |
400 |
800 |
|
25.0 |
10 |
27/8 |
7/16 |
1/2 |
500 |
1000 |
|
30.0 |
10 |
3 |
7/16 |
11/16 |
600 |
1200 |
|
C12¡Á |
20.7 |
12 |
3 |
1/2 |
5/16 |
414 |
828 |
25.0 |
12 |
3 |
1/2 |
3/8 |
500 |
1000 |
|
30.0 |
12 |
31/8 |
1/2 |
1/2 |
600 |
1200 |
|
C15¡Á |
33.9 |
15 |
33/8 |
5/8 |
3/8 |
678 |
1356 |
40.0 |
15 |
31/2 |
5/8 |
1/2 |
800 |
1600 |
|
50.0 |
15 |
33/4 |
5/8 |
11/16 |
1000 |
2000 |
