Steel Angles for Shipbuilding

[Search Related Products]

Steel Angles for Shipbuilding

Steel Angles for Shipbuilding

Steel angles are also known as ¡°L shapes¡±, ¡°angles¡±. The steel angles for shipbuilding are a sort of steel angles made of specialized marine steel, such as CCS A, B, D, E, AH32, DH32, EH32, AH36,DH36, EH36, AH40, DH40, EH40, or other equivalent steel grades. The steel angles for shipbuilding feature well ductility, high strength, good corrosion resistance, excellent weldability and outstanding riveting. We are able to supply equal steel angles for shipbuilding, unequal steel angles for shipbuilding and unequal leg and thickness steel angles for shipbuilding. They are manufactured according to EN 10056, GB/T 706-2008, JIS G3192-2008... Excepting the standards above mentioned, we can customize steel angles in accordance with your requirements. The length of steel angles depends on per customer¡¯s requirement. In addition to steel angles for shipbuilding, we also supply marine bulb flats, marine flat bars, marine steel channels, marine wide flange beams, marine half-round bars... We are capable of providing one-stop service, if you are interested in our products, welcome to contact us!

Features of Steel Angles for Shipbuilding

• Suitable for shipbuilding

• Excellent mechanical properties and weldability

• Three types: equal steel angles, unequal steel angles, unequal leg and thickness steel angles

• In line with various standards, such as EN 10056, GB/T 706-2008, JIS G3192-2008...

• A wide range of steel grades

• A full selection of angles¡¯ dimensions

• Certified by relevant classification societies, such as CCS, ABS, BV, LR, GL, NK...

Equal Steel Angles for Shipbuilding

Steel Angles for Shipbuilding

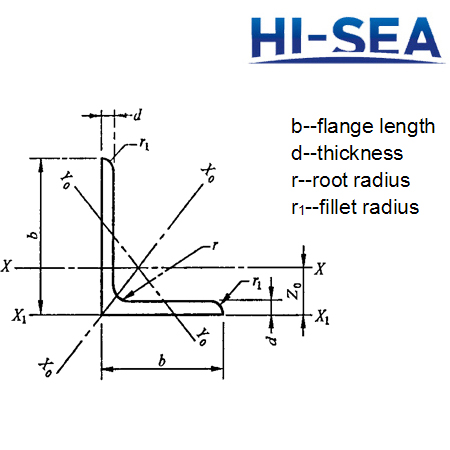

Profile of Equal Steel Angles for Shipbuilding

Steel Angles for Shipbuilding

Equal Steel Angles for Shipbuilding

Dimensions of Equal Steel Angles for Shipbuilding

Model

Sectional Dimensions (mm)

Sectional Area

cm2

Nominal Weight

kg/m

b

d

r

2

20

3

3.5

1.132

0.889

4

1.459

1.145

2.5

25

3

1.432

1.124

4

1.859

1.459

3.0

30

3

4.5

1.749

1.373

4

2.276

1.786

3.6

36

3

2.109

1.656

4

2.756

2.163

5

3.382

2.654

4

40

3

5

2.359

1.852

4

3.086

2.422

5

3.791

2.297

4.5

45

3

2.659

2.088

4

3.486

2.736

More dimensions, please click here/photos/Dimensions-of-Equal-Steel-Angles-for-Shipbuilding.docx

Unequal Steel Angles for Shipbuilding

Steel Angles for Shipbuilding

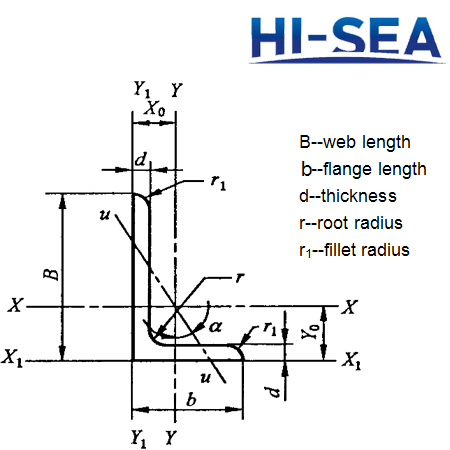

Profile of Unequal Steel Angles for Shipbuilding

Steel Angles for Shipbuilding

Unequal Steel Angles for Shipbuilding

Dimensions of Unequal Steel Angles for Shipbuilding

Model

Sectional dimensions

mm

Sectional Area

cm2

Nominal Weight

kg/m

B

b

d

r

2.5/1.6

25

16

3

3.5

1.162

0.912

4

1.499

1.176

3.2/2

32

20

3

1.492

1.171

4

1.939

1.522

4/2.5

40

25

3

4

1.890

1.484

4

2.467

1.936

4.5/2.8

45

28

3

5

2.149

1.687

4

2.806

2.203

5/3.2

50

32

3

5.5

2.431

1.908

4

3.177

2.494

5.6/3.6

56

36

3

6

2.743

2.153

4

3.590

2.818

5

4.415

3.466

6.3/4

63

40

4

7

4.058

3.185

5

4.993

3.920

6

5.908

4.638

7

6.802

5.339

7/4.5

70

45

4

7.5

4.547

3.570

5

5.609

4.403

6

6.647

5.218

7

7.657

6.011

More dimensions, please click here/photos/Dimensions-of-Unequal-Steel-Angles-for-Shipbuilding.docx

Unequal Leg and Thickness Steel Angles for Shipbuilding

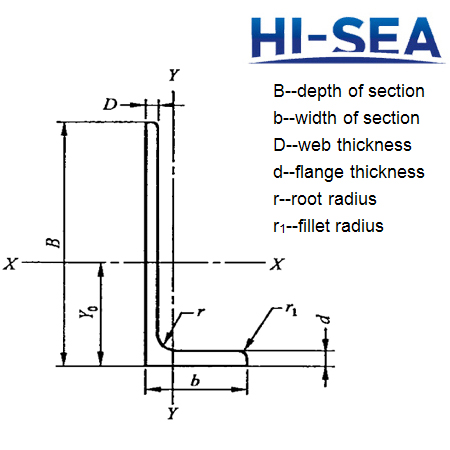

Steel Angles for ShipbuildingProfile of Unequal Leg and Thickness Steel Angles for Shipbuilding

Steel Angles for Shipbuilding

Unequal Leg and Thickness Steel Angles for Shipbuilding

Dimensions of Unequal Leg and Thickness Steel Angles for Shipbuilding

Type

Sectional Dimension (mm)

Sectional Area

(cm2)

Nominal Weight

(kg/m)

B

b

D

d

r

r1

L250¡Á90¡Á9¡Á13

250

90

9

13

15

7.5

33.4

26.2

L250¡Á90¡Á10.5¡Á15

10.5

15

38.5

30.3

L250¡Á90¡Á11.5¡Á16

11.5

16

41.7

32.7

L300¡Á100¡Á10.5¡Á15

300

100

10.5

15

45.3

35.6

L300¡Á100¡Á11.5¡Á16

11.5

16

49.0

38.5

L350¡Á120¡Á10.5¡Á16

350

120

10.5

16

20

10

54.9

43.1

L350¡Á120¡Á11.5¡Á18

11.5

18

60.4

47.4

L400¡Á120¡Á11.5¡Á23

400

120

11.5

23

71.6

56.2

L450¡Á120¡Á11.5¡Á25

450

120

11.5

25

79.5

62.4

L500¡Á120¡Á12.5¡Á33

500

120

12.5

33

98.6

77.4

L500¡Á120¡Á13.5¡Á35

13.5

35

105.0

82.8

Relevant Links: Shipbuilding L-Section Steel

Unequal Leg and Thickness Steel Angles

Steel Angles for Shipbuilding
