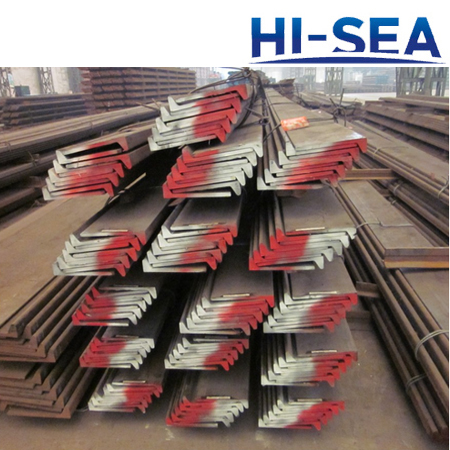

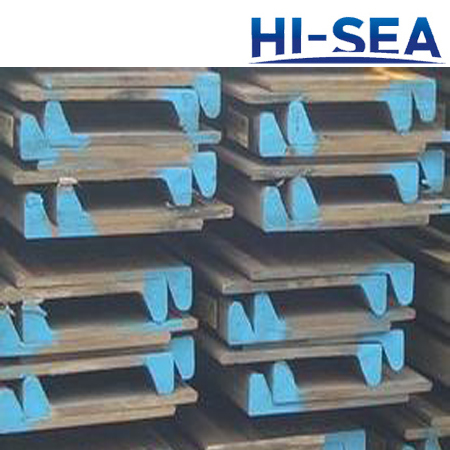

The bulb flats are made for plate stiffening applications. They are hot rolled, economical, efficient and reliable. Because of rounded edges, there is no need for edge grinding before painting, saving time and money. The bulb flats we provided are manufactured in accordance with European standard EN10067:1997.

We are capable of supplying EN 10067 bulb flats made of specialized marine steel. The available steel grades are as below:

ABS Grade: AB/A, AB/AN, AB/B, AB/BN, AB/D, AB/DN, AB/E, AB/EN, AB/AH32, AB/AH32N, AB/DH32, AB/DH32N, AB/EH32, AB/EH32N, AB/AH36, AB/AH36N, AB/DH36, AB/DH36N, AB/EH36, AB/EH36N, AB/AH40, AB/AH40N, AB/DH40, AB/DH40N, AB/EH40, AB/EH40N

BV Grade: BVA, BVB, BVD, BVE, BVAH32, BVDH32, BVEH32, BVAH36, BVDH36, BVEH36, BVAH40, BVDH40, BVEH40

CCS Grade: CCSA, CCSB, CCSD, CCSE, CCSAH32, CCSDH32, CCSEH32, CCSAH36, CCSDH36, CCSEH36, CCSAH40, CCSDH40, CCSEH40

DNV Grade: NV A, NV B, NV D, NV E, NV A32, NV D32, NV E32, NV A36, NV D36, NV E36, NV A40, NV D40, NV E40

GL Grade: GL-A, GL-ATM, GL-B, GL-BTM, GL-D, GL-DTM, GL-E, GL-ETM, GL-A32, GL-A32TM, GL-D32, GL-D32TM, GL-E32, GL-E32TM, GL-A36, GL-A36TM, GL-D36, GL-D36TM, GL-E36, GL-E36TM, GL-A40, GL-A40TM, GL-D40, GL-D40TM, GL-E40, GL-E40TM

KR Grade: KRA, KRB, KRD, KRE, KRAH32, KRDH32, KREH32, KRAH36, KRDH36, KREH36, KRAH40, KRDH40, KREH40

LR Grade: LRA, LRB, LRD, LRE, LRAH32, LRDH32, LREH32, LRAH36, LRDH36, LREH36, LRAH40, LRDH40, LREH40

NK Grade: KA, KB, KD, KE, KA32, KD32, KE32, KA36, KD36, KE36, KA40, KD40, KE40

RINA Grade: RINA-A, RINA-B, RINA-D, RINA-E, RINA-AH32, RINA-DH32, RINA-EH32, RINA-AH36, RINA-DH36, RINA-EH36, RINA-AH40, RINA-DH40, RINA-EH40

If you have any specific requirements or want to know more details, welcome to contact us!

EN 10067 Bulb Flats

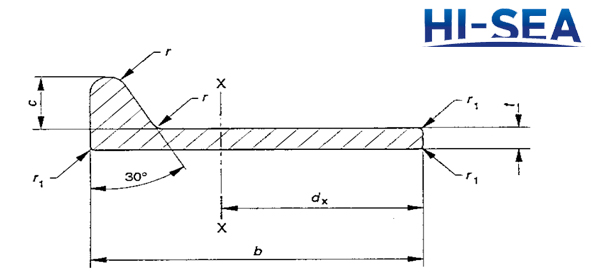

Profile of EN 10067 Bulb Flats

Dimensions of EN 10067 Bulb Flats

Nominal Size

Dimensions for

b

(mm)

t

(mm)

c

(mm)

r

(mm)

80¡Á5

80¡Á6

80

5

6

14

4

100¡Á7

100¡Á8

100

7

8

15.5

4.5

120¡Á6

120¡Á7

120¡Á8

120

6

7

8

17

5

140¡Á7

140¡Á8

140¡Á10

140

7

8

10

19

5.5

160¡Á7

160¡Á8

160¡Á9

160¡Á11

160

7

8

9

11

22

6

180¡Á8

180¡Á9

180¡Á10

180¡Á11

180

8

19

10

11

25

7

200¡Á9

200¡Á10

200¡Á11

200¡Á12

200

9

10

11

12

28

8

220¡Á10

220¡Á11

220¡Á12

220

10

11

12

31

9

240¡Á10

240¡Á11

240¡Á12

240

10

11

12

34

10

260¡Á10

260¡Á11

260¡Á12

260

10

11

12

37

11

280¡Á11

280¡Á12

280¡Á13

280

11

12

13

40

12

300¡Á11

300¡Á12

300¡Á13

300

11

12

13

43

13

320¡Á12

320¡Á13

320¡Á14

320

12

13

14

46

14

340¡Á12

340¡Á13

340¡Á14

340

12

13

14

49

15

370¡Á13

370¡Á14

370¡Á15

370

13

14

15

53.5

16.5

400¡Á14

400¡Á15

400¡Á16

400

14

15

16

58

18

430¡Á14

430¡Á15

430¡Á17

430¡Á19

430¡Á20

430

14

15

17

19

20

62.5

19.5

Note

The length of bulb flats can be customized.

Tolerance on Dimensions

Dimensions (mm)

Tolerances (mm)

b

t

>

¨Q

¨R

¨Q

for b

for t

120

5

8

¡À1.5

+0.7

-0.3

120

180

7

11

¡À2.0

+1.0

-0.3

180

300

9

13

¡À3.0

+1.0

-0.4

300

430

12

20

¡À4.0

+1.2

-0.4
