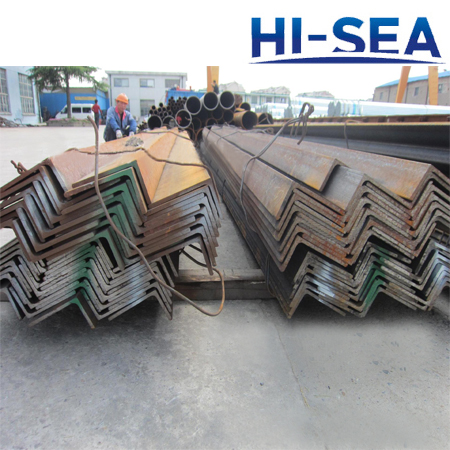

Rolled Steel Angle-Unequal
Rolled steel angle-unequal is often called an ¡°angle¡±, ¡°unequal angle¡± or ¡°L-shape¡±. It is described by giving both leg length (longer first) and the wall thickness, eg. 30¡Á20¡Á3. With longer leg being in a vertical position, its loading capability is greater than equal angles, therefore it is often used as a lintel. The rolled steel angle-unequal is able to be made of S235JR, S235J0, S235J2, S275, S355JR, S355J0, S355J2... Excepting the dimensions we provided, we can customize the angle¡¯s dimensions for you. In addition to rolled steel angle-unequal, we also provide rolled steel angle-equal, stainless steel angles, galvanized steel angles, shipbuilding steel angles, shipbuilding bulb flats, H beams, I beams, steel channels, flat bars, T sections, marine steel plates... If you want to know more details, welcome to contact us!
Features of Rolled Steel Angle-Equal
• Hot rolled, unequal legs
• Excellent mechanical properties, well riveting, good weldability
• To comply with EN 10056
• A full selection of materials and dimensions
• Available customization
• Produced by excellent steel mills

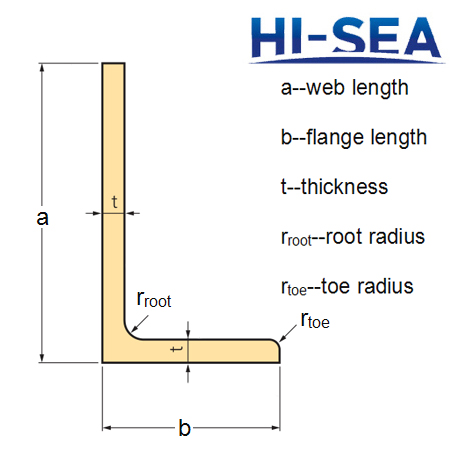

Profile of Rolled Steel Angle-Unequal
Dimensions of Rolled Steel Angle-Unequal
Designation |
Mass kg/m |
Sectional Area cm2 |
Dimensions |
|||
a mm |
b mm |
t mm |
rroot mm |
|||
30¡Á20¡Á3 |
1.12 |
1.43 |
30 |
20 |
3 |
4 |
30¡Á20¡Á4 |
1.46 |
1.86 |
30 |
20 |
4 |
4 |
40¡Á20¡Á4 |
1.77 |
2.26 |
40 |
20 |
4 |
4 |
40¡Á25¡Á4 |
1.93 |
2.46 |
40 |
25 |
4 |
4 |
45¡Á30¡Á4 |
2.25 |
2.87 |
45 |
30 |
4 |
4.5 |
50¡Á30¡Á5 |
2.96 |
3.78 |
50 |
30 |
5 |
5 |
60¡Á30¡Á5 |
3.36 |
4.28 |
60 |
30 |
5 |
5 |
60¡Á40¡Á5 |
3.76 |
4.79 |
60 |
40 |
5 |
6 |
60¡Á40¡Á6 |
4.46 |
5.68 |
60 |
40 |
6 |
6 |
65¡Á50¡Á5 |
4.35 |
5.54 |
65 |
50 |
5 |
6 |
70¡Á50¡Á6 |
5.41 |
6.89 |
70 |
50 |
6 |
7 |
75¡Á50¡Á6 |
5.65 |
7.19 |
75 |
50 |
6 |
7 |
75¡Á50¡Á8 |
7.39 |
9.41 |
75 |
50 |
8 |
7 |
80¡Á40¡Á6 |
5.41 |
6.89 |
80 |
40 |
6 |
7 |
80¡Á40¡Á8 |
7.07 |
9.01 |
80 |
40 |
8 |
7 |
100¡Á50¡Á6 |
6.84 |
8.71 |
100 |
50 |
6 |
8 |
100¡Á50¡Á8 |
8.97 |
11.4 |
100 |
50 |
8 |
8 |
100¡Á65¡Á7 |
8.77 |
11.2 |
100 |
65 |
7 |
10 |
100¡Á65¡Á8 |
9.94 |
12.7 |
100 |
65 |
8 |
10 |
100¡Á65¡Á10 |
12.3 |
15.6 |
100 |
65 |
10 |
10 |
100¡Á75¡Á8 |
10.6 |
13.5 |
100 |
75 |
8 |
10 |
100¡Á75¡Á10 |
13.0 |
16.6 |
100 |
75 |
10 |
10 |
100¡Á75¡Á12 |
15.4 |
19.7 |
100 |
75 |
12 |
10 |
120¡Á80¡Á8 |
12.2 |
15.5 |
120 |
80 |
8 |
11 |
120¡Á80¡Á10 |
15.0 |
19.1 |
120 |
80 |
10 |
11 |
120¡Á80¡Á12 |
17.8 |
22.7 |
120 |
80 |
12 |
11 |
125¡Á75¡Á8 |
12.2 |
15.5 |
125 |
75 |
8 |
11 |
125¡Á75¡Á10 |
15.0 |
19.1 |
125 |
75 |
10 |
11 |
125¡Á75¡Á12 |
17.8 |
22.7 |
125 |
75 |
12 |
11 |
135¡Á65¡Á8 |
12.2 |
15.5 |
135 |
65 |
8 |
11 |
135¡Á65¡Á10 |
15.0 |
19.1 |
135 |
65 |
10 |
11 |
150¡Á75¡Á9 |
15.4 |
19.6 |
150 |
75 |
9 |
12 |
150¡Á75¡Á10 |
17.0 |
21.7 |
150 |
75 |
10 |
12 |
150¡Á75¡Á12 |
20.2 |
25.7 |
150 |
75 |
12 |
12 |
150¡Á75¡Á15 |
24.8 |
31.7 |
150 |
75 |
15 |
12 |
150¡Á90¡Á10 |
18.2 |
23.2 |
150 |
90 |
10 |
12 |
150¡Á90¡Á12 |
21.6 |
27.5 |
150 |
90 |
12 |
12 |
150¡Á90¡Á15 |
26.6 |
33.9 |
150 |
90 |
15 |
12 |
150¡Á100¡Á10 |
19.0 |
24.2 |
150 |
100 |
10 |
12 |
150¡Á100¡Á12 |
22.5 |
28.7 |
150 |
100 |
12 |
12 |
200¡Á100¡Á10 |
23.0 |
29.2 |
200 |
100 |
10 |
15 |
200¡Á100¡Á12 |
27.3 |
34.8 |
200 |
100 |
12 |
15 |
200¡Á100¡Á15 |
33.75 |
43.0 |
200 |
100 |
15 |
15 |
200¡Á150¡Á12 |
32.0 |
40.8 |
200 |
150 |
12 |
15 |
200¡Á150¡Á15 |
39.6 |
50.5 |
200 |
150 |
15 |
15 |
Note |
The length of the unequal leg angles can be customized. |
