Rolled Steel Angle-Equal

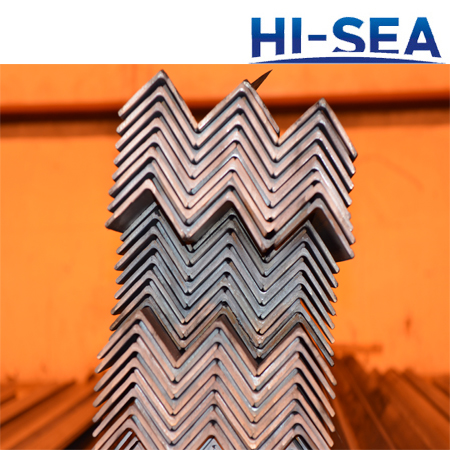

Rolled steel angle-equal is often called an ¡°angle¡±, ¡°equal angle¡± or ¡°L-shape¡±. Even though both legs are the same length, it is described by giving both leg length and the wall thickness, eg. 20¡Á20¡Á3. A rolled steel angle-equal is most often used for structural support, such as brackets, shipbuilding, bridges, trailers... The rolled steel angle-equal is able to be made of S235JR, S235J0, S235J2, S275, S355JR, S355J0, S355J2... Excepting the dimensions we provided, we can customize the angle¡¯s dimension for you. In addition to rolled steel angle-equal, we also provide rolled steel angle-unequal, stainless steel angles, galvanized steel angles, hot rolled bulb flats, H beams, I beams, steel channels, marine steel plates... If you want to know more details, welcome to contact us!
Features of Rolled Steel Angle-Equal
• Hot rolled, equal legs
• Excellent mechanical properties, well riveting, good weldability
• To comply with EN 10056
• A full selection of materials and dimensions
• Available customization
• Produced by excellent steel mills

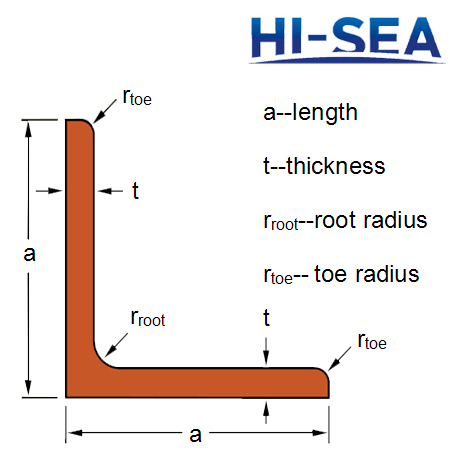

Profile of Rolled Steel Angle-Equal
Dimensions of Rolled Steel Angle-Equal
Designation |
Mass kg/m |
Sectional Area cm2 |
Dimensions |
||
a mm |
t mm |
rroot mm |
|||
20¡Á20¡Á3 |
0.882 |
1.12 |
20 |
3 |
3.5 |
25¡Á25¡Á3 |
1.12 |
1.42 |
25 |
3 |
3.5 |
25¡Á25¡Á4 |
1.45 |
1.85 |
25 |
4 |
3.5 |
30¡Á30¡Á3 |
1.36 |
1.74 |
30 |
3 |
5 |
30¡Á30¡Á4 |
1.78 |
2.27 |
30 |
4 |
5 |
35¡Á35¡Á4 |
2.09 |
2.67 |
35 |
4 |
5 |
40¡Á40¡Á4 |
2.42 |
3.08 |
40 |
4 |
6 |
40¡Á40¡Á5 |
2.97 |
3.79 |
40 |
5 |
6 |
45¡Á45¡Á4.5 |
3.06 |
3.90 |
45 |
4.5 |
7 |
50¡Á50¡Á4 |
3.06 |
3.89 |
50 |
4 |
7 |
50¡Á50¡Á5 |
3.77 |
4.80 |
50 |
5 |
7 |
50¡Á50¡Á6 |
4.47 |
5.69 |
50 |
6 |
7 |
60¡Á60¡Á5 |
4.57 |
5.82 |
60 |
5 |
8 |
60¡Á60¡Á6 |
5.42 |
6.91 |
60 |
6 |
8 |
60¡Á60¡Á8 |
7.09 |
9.03 |
60 |
8 |
8 |
65¡Á65¡Á7 |
6.83 |
8.7 |
65 |
7 |
9 |
70¡Á70¡Á6 |
6.38 |
8.13 |
70 |
6 |
9 |
70¡Á70¡Á7 |
7.38 |
9.40 |
70 |
7 |
9 |
75¡Á75¡Á6 |
6.85 |
8.73 |
75 |
6 |
9 |
75¡Á75¡Á8 |
8.99 |
11.4 |
75 |
8 |
9 |
80¡Á80¡Á8 |
9.63 |
12.3 |
80 |
8 |
10 |
80¡Á80¡Á10 |
11.9 |
15.1 |
80 |
10 |
10 |
90¡Á90¡Á7 |
9.61 |
12.2 |
90 |
7 |
11 |
90¡Á90¡Á8 |
10.9 |
13.9 |
90 |
8 |
11 |
90¡Á90¡Á9 |
12.2 |
15.5 |
90 |
9 |
11 |
90¡Á90¡Á10 |
13.4 |
17.1 |
90 |
10 |
11 |
100¡Á100¡Á8 |
12.2 |
15.5 |
100 |
8 |
12 |
100¡Á100¡Á10 |
15.0 |
19.2 |
100 |
10 |
12 |
100¡Á100¡Á12 |
17.8 |
22.7 |
100 |
12 |
12 |
120¡Á120¡Á10 |
18.2 |
23.2 |
120 |
10 |
13 |
120¡Á120¡Á12 |
21.6 |
27.5 |
120 |
12 |
13 |
130¡Á130¡Á12 |
23.6 |
30.0 |
130 |
12 |
14 |
150¡Á150¡Á10 |
23.0 |
29.3 |
150 |
10 |
16 |
150¡Á150¡Á12 |
27.3 |
34.8 |
150 |
12 |
16 |
150¡Á150¡Á15 |
33.8 |
43.0 |
150 |
15 |
16 |
160¡Á160¡Á15 |
36.2 |
46.1 |
160 |
15 |
17 |
180¡Á180¡Á16 |
43.5 |
55.4 |
18. |
16 |
18 |
180¡Á180¡Á18 |
48.6 |
61.9 |
180 |
18 |
18 |
200¡Á200¡Á16 |
48.5 |
61.8 |
200 |
16 |
18 |
200¡Á200¡Á18 |
54.3 |
69.1 |
200 |
18 |
18 |
200¡Á200¡Á20 |
59.9 |
76.3 |
200 |
20 |
18 |
200¡Á200¡Á24 |
71.1 |
90.6 |
200 |
24 |
18 |
250¡Á250¡Á28 |
104 |
133 |
250 |
28 |
18 |
250¡Á250¡Á35 |
128 |
163 |
250 |
35 |
18 |
Note |
The length of angles can be customized. |
