Marine Hot-Rolled Steel Channels

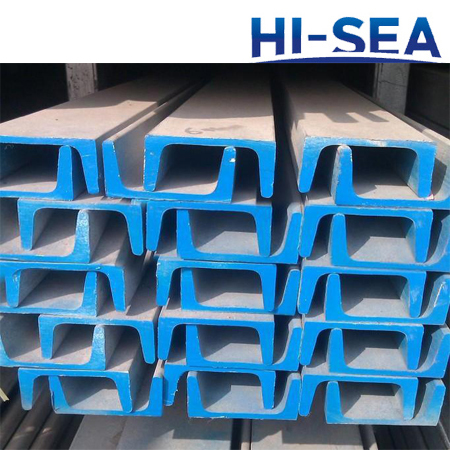

The steel channels are hot rolled which are used for shipbuilding. They have excellent weldability, good riveting and comprehensive mechanical properties. We are anble to supply marine hot-rolled steel channels with various dimensions manufactured under Chinese Standards, American Standards and European Standards. The mainly size range is as following: height in the range of 30~400mm, flange width in the range of 15~110mm, the web thickness in the range of 4~15mm. Please contact us if you have any special requirements for dimensions. The steel grades of channels can be customized as per customer¡¯s requirements. The channels provided are well-shaped, standard-sized and high-quality. If you are interested in our products, welcome to contact us!
Features
• Able to be manufactured in line with Chinese national standard GB/T706-2008/ American standard/ European standard
• Full selection of steel grades and dimensions
• Standard-sized, well shaped and reliable quality
• Marginal tolerances
• Cost and time savings
Chinese Standard Dimensions of Marine Hot-Rolled Steel Channels
Model |
Sectional Dimension (mm) |
Sectional Area (cm2) |
Theoretical Weight (kg/m) |
|||||
h |
b |
d |
t |
r |
r1 |
|||
5 |
50 |
37 |
4.5 |
7.0 |
7.0 |
3.5 |
6.928 |
5.438 |
6.3 |
63 |
40 |
4.8 |
7.5 |
7.5 |
3.8 |
8.451 |
6.634 |
6.5 |
65 |
40 |
4.3 |
7.5 |
7.5 |
3.8 |
8.547 |
6.709 |
8 |
80 |
43 |
5.0 |
8.0 |
8.0 |
4.0 |
10.248 |
8.045 |
10 |
100 |
48 |
5.3 |
8.5 |
8.5 |
4.2 |
12.748 |
10.007 |
12 |
120 |
53 |
5.5 |
9.0 |
9.0 |
4.5 |
15.362 |
12.059 |
12.6 |
126 |
53 |
5.5 |
9.0 |
9.0 |
4.5 |
15.692 |
12.318 |
14a |
140 |
58 |
6.0 |
9.5 |
9.5 |
4.8 |
18.516 |
14.535 |
14b |
60 |
8.0 |
21.316 |
16.733 |
||||
16a |
160 |
63 |
6.5 |
10.0 |
10.0 |
5.0 |
21.962 |
17.24 |
16b |
65 |
8.5 |
25.162 |
19.752 |
||||
18a |
180 |
68 |
7.0 |
10.5 |
10.5 |
5.2 |
25.699 |
20.174 |
18b |
70 |
9.0 |
29.299 |
23.000 |
||||
20a |
200 |
73 |
7.0 |
11.0 |
11.0 |
5.5 |
28.837 |
22.637 |
20b |
75 |
9.0 |
32.837 |
25.777 |
||||
22a |
220 |
77 |
7.0 |
11.5 |
11.5 |
5.8 |
31.846 |
24.999 |
22b |
79 |
9.0 |
36.246 |
28.453 |
||||
24a |
240 |
78 |
7.0 |
12.0 |
12.0 |
6.0 |
34.217 |
26.860 |
24b |
80 |
9.0 |
39.017 |
30.628 |
||||
24c |
82 |
11.0 |
43.817 |
34.396 |
||||
25a |
250 |
78 |
7.0 |
34.917 |
27.410 |
|||
25b |
80 |
9.0 |
39.917 |
31.335 |
||||
25c |
82 |
11.0 |
44.917 |
35.260 |
||||
27a |
270 |
82 |
7.5 |
12.5 |
12.5 |
6.2 |
39.284 |
30.838 |
27b |
84 |
9.5 |
44.684 |
35.077 |
||||
27c |
86 |
11.5 |
50.084 |
39.316 |
||||
28a |
280 |
82 |
7.5 |
40.034 |
31.427 |
|||
28b |
84 |
9.5 |
45.634 |
35.823 |
||||
28c |
86 |
11.5 |
51.234 |
40.219 |
||||
30a |
300 |
85 |
7.5 |
13.5 |
13.5 |
6.8 |
43.902 |
34.463 |
30b |
87 |
9.5 |
49.902 |
39.173 |
||||
30c |
89 |
11.5 |
55.902 |
43.883 |
||||
32a |
320 |
88 |
8.0 |
14.0 |
14.0 |
7.0 |
48.513 |
38.083 |
32b |
90 |
10.0 |
54.913 |
43.107 |
||||
32c |
92 |
12.0 |
61.313 |
48.131 |
||||
36a |
360 |
96 |
9.0 |
16.0 |
16.0 |
8.0 |
60.910 |
47.814 |
36b |
98 |
11.0 |
68.110 |
53.466 |
||||
36c |
100 |
13.0 |
75.310 |
59.118 |
||||
40a |
400 |
100 |
10.5 |
18.0 |
18.0 |
9.0 |
75.068 |
58.928 |
40b |
102 |
12.5 |
83.038 |
65.208 |
||||
40c |
104 |
14.5 |
91.068 |
71.488 |
||||
Note |
The data of r, r1 will not be as terms of delivery. |
