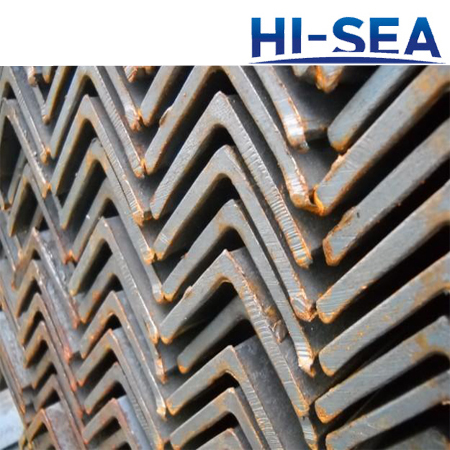

Chinese Standard Equal Leg Angles
Steel angles are widely used for structural support, such as shipbuilding, bridges, brackets, trailers, carts... The steel angles are also known as ˇ°L-shapesˇ±. There are three types of steel angles: equal leg angles, unequal leg angles, unequal and thickness angles. The Chinese standard equal leg angles are a sort of equal leg angles produced by Chinese top steel mills meeting the requirements of GB/T 706-2008. They can be made of following steel: CCSA, CCSB, CCSD, CCSE, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40, Q235, Q345... We provide you a wide range of dimensions. If you have any specific requirements, we are able to customize products for you. Besides, we provide other steel angles, such as stainless steel angles, galvanized steel angles, shipbuilding steel angles, American standard steel angles, European standard steel angles... More details, welcome to contact us!
Features of Chinese Standard Equal Leg Angles
• High quality, trustworthy products
• A full selection of materials, such as marine steel, carbon structural steel, low carbon alloy steel...
• A wide range of dimensions,with the range of L2#~L25#
• Produced by excellent steel mills with strict quality management
• Precision-made, reliable, economical

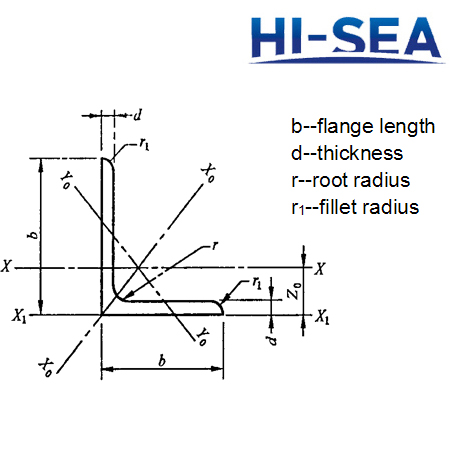

Profile of Chinese Standard Equal Leg Angles
Dimensions of Chinese Standard Equal Leg Angles
Model |
Sectional Dimensions (mm) |
Sectional Area cm2 |
Nominal Weight kg/m |
||
b |
d |
r |
|||
2 |
20 |
3 |
3.5 |
1.132 |
0.889 |
4 |
1.459 |
1.145 |
|||
2.5 |
25 |
3 |
1.432 |
1.124 |
|
4 |
1.859 |
1.459 |
|||
3.0 |
30 |
3 |
4.5 |
1.749 |
1.373 |
4 |
2.276 |
1.786 |
|||
3.6 |
36 |
3 |
2.109 |
1.656 |
|
4 |
2.756 |
2.163 |
|||
5 |
3.382 |
2.654 |
|||
4 |
40 |
3 |
5 |
2.359 |
1.852 |
4 |
3.086 |
2.422 |
|||
5 |
3.791 |
2.297 |
|||
4.5 |
45 |
3 |
2.659 |
2.088 |
|
4 |
3.486 |
2.736 |
|||
5 |
4.292 |
3.369 |
|||
6 |
5.076 |
3.985 |
|||
5 |
50 |
3 |
5.5 |
2.971 |
2.332 |
4 |
3.897 |
3.059 |
|||
5 |
4.083 |
3.770 |
|||
6 |
5.688 |
4.465 |
|||
5.6 |
56 |
3 |
6 |
3.343 |
2.624 |
4 |
4.390 |
3.446 |
|||
5 |
5.415 |
4.251 |
|||
6 |
6.420 |
5.040 |
|||
7 |
7.404 |
5.812 |
|||
8 |
8.367 |
6.568 |
|||
6 |
60 |
5 |
6.5 |
5.829 |
4.576 |
6 |
6.914 |
5.427 |
|||
7 |
7.977 |
6.262 |
|||
9 |
9.020 |
7.081 |
|||
6.3 |
63 |
4 |
7 |
4.978 |
3.907 |
5 |
6.143 |
4.822 |
|||
6 |
7.288 |
5.721 |
|||
7 |
8.412 |
6.603 |
|||
8 |
9.515 |
7.469 |
|||
10 |
11.657 |
9.151 |
|||
7 |
70 |
4 |
8 |
5.570 |
4.372 |
5 |
6.875 |
5.397 |
|||
6 |
8.160 |
6.406 |
|||
7 |
9.424 |
7.398 |
|||
8 |
10.667 |
8.373 |
|||
7.5 |
75 |
5 |
9 |
7.412 |
5.818 |
6 |
8.797 |
6.905 |
|||
7 |
10.160 |
7.976 |
|||
8 |
11.503 |
9.030 |
|||
9 |
12.825 |
10.068 |
|||
10 |
14.126 |
11.089 |
|||
8 |
80 |
5 |
7.912 |
6.211 |
|
6 |
9.397 |
7.376 |
|||
7 |
10.860 |
8.525 |
|||
8 |
12.303 |
9.658 |
|||
9 |
13.725 |
10.774 |
|||
10 |
15.126 |
11.874 |
More dimensions, please click here/photos/Dimensions-of-Chinese-Standard-Equal-Leg-Angles.docx
