3 Rollers Fairlead
[Search Related Products]

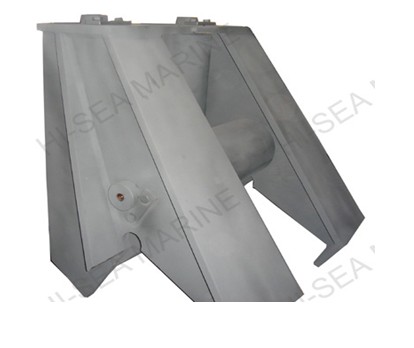

Features of 3 Rollers Fairlead
1. Fairlead with 3 horizontal rollers;
2. Adopt standard CB*3062-79 type A;
3. Steel wire diameter 19.5mm to 68mm,
Nylon rope diameter 36mm to 100mm;
4. Clean,smooth surface without any defects;
5. Lubricants filled between rollers and shafts;
6. Pass the test of quality inspection center and get quality certificate;
7. Painted on anticorrosive paint;
8. Produce according to standard or customer¡¯s drawing

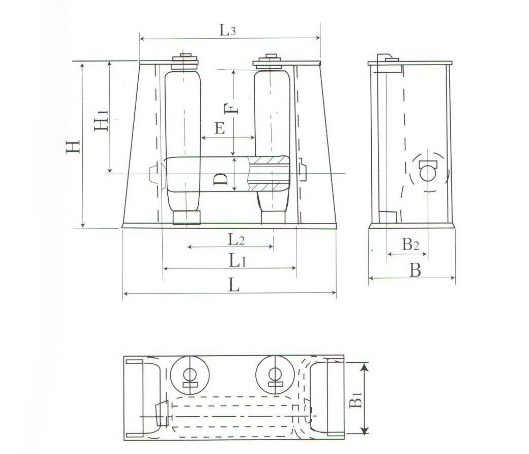

Drawing of CB*3062 Three Rollers Fairlead
Wire Rope Diameter(mm) | Nylon Rope Diameter(mm) | E(mm) | F(mm) | D(mm) | d(mm) | L(mm) | L1(mm) | L2(mm) | L3(mm) | B(mm) | B1(mm) | B2(mm) | H(mm) | H1(mm) | Weight(kg) |
19.5 | 36 | 200 | 257 | 100 | 40-0.5 | 644 | 416 | 300 | 544 | 238 | 194 | 108 | 508 | 330 | 138 |
22.5 | 40 | 200 | 275 | 120 | 50-0.5 | 728 | 456 | 320 | 608 | 280 | 232 | 128 | 552 | 360 | 212 |
26.0 | 45 | 200 | 311 | 130 | 55-0.5 | 776 | 480 | 330 | 646 | 304 | 250 | 138 | 606 | 405 | 273 |
32.0 | 70 | 220 | 328 | 150 | 65-0.5 | 880 | 450 | 370 | 730 | 346 | 288 | 158 | 670 | 435 | 401 |
34.5 | 80 | 240 | 358 | 160 | 70-0.5 | 940 | 580 | 400 | 780 | 370 | 308 | 168 | 710 | 470 | 469 |
37.5 | 85 | 240 | 383 | 180 | 80-0.5 | 1030 | 620 | 420 | 850 | 417 | 345 | 190 | 770 | 510 | 678 |
43.0 | 95 | 260 | 411 | 200 | 90-0.5 | 1136 | 686 | 460 | 936 | 459 | 385 | 210 | 820 | 550 | 866 |
52.0 | 100 | 260 | 450 | 230 | 100-0.5 | 1256 | 746 | 490 | 1026 | 521 | 445 | 240 | 910 | 605 | 1197 |
60.5 | - | 300 | 493 | 260 | 120-0.5 | 1430 | 850 | 560 | 1170 | 590 | 500 | 270 | 1000 | 670 | 1741 |
68.5 | - | 320 | 563 | 320 | 150-0.5 | 1690 | 990 | 640 | 1370 | 714 | 620 | 330 | 1130 | 770 | 2811 |
