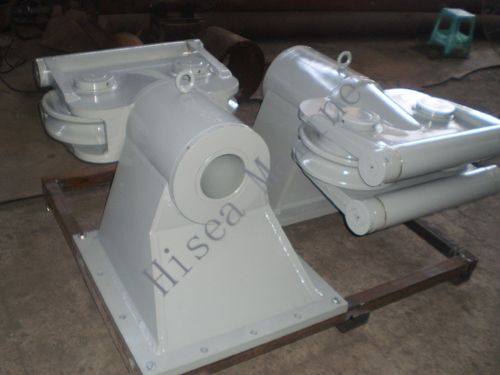

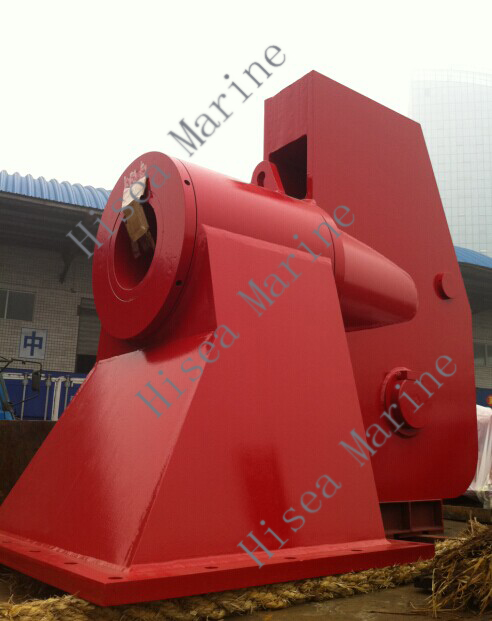

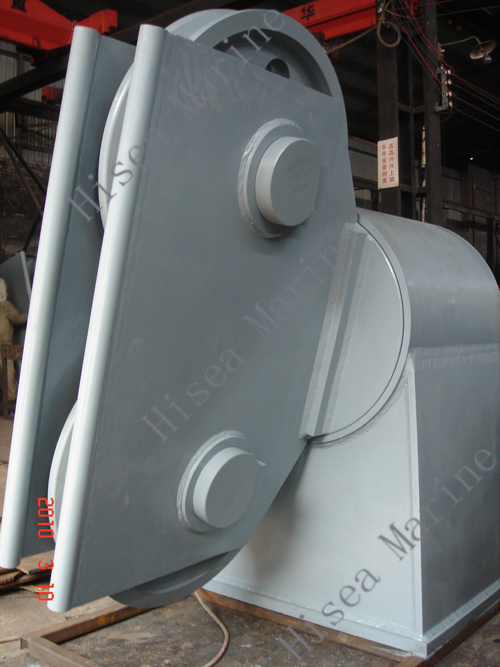

Deck Mounted Double Sheave Anchor Fairlead
Swivel fairlead is also known as the Swivel Mooring chock. Swivel fairlead is a marine anchor fairlead Swivel pulley blocks. It is designed for the breaking strength of the line and 90 ¡ã warp in the pulley and more or less 90 ¡ã Swivel head rotation. And sealing grease lubricated tapered roller bearings, Swivel fairleads will harden rope groove and longer life. It is often used to guide the line, cable or table with minimal friction. Swivel fairlead anchor line and can be used in sailboat rigging. Ocean rotation anchor fairlead is mounted on the boat deck. Guide rope device can be used for berthing. Swivel fairleads also used in engineering boats, tugs, oil platforms, drilling rigs and other types of ship mooring and positioning.

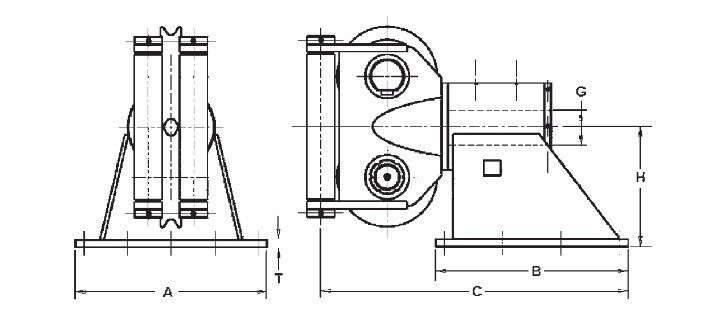

Deck Mounted Double Sheave Anchor Fairlead |
|||||||||
Wire Rope diameter |
Sheave Dia.(mm) |
Dimensions(mm) |
Mass (kg) |
||||||
(mm) |
(mm) |
A |
B |
C |
T |
H |
G |
||
25 |
1 |
254 |
486 |
420 |
722 |
20 |
277 |
70 |
210 |
32 |
1-1/4 |
305 |
570 |
492 |
839 |
20 |
342 |
104 |
355 |
38 |
1-1/2 |
406 |
780 |
782 |
1266 |
30 |
489 |
143 |
850 |
44 |
1-3/4 |
508 |
1064 |
914 |
1467 |
40 |
546 |
150 |
1520 |
50 |
2 |
610 |
1219 |
1067 |
1763 |
40 |
648 |
186 |
2600 |
64 |
2-1/2 |
762 |
1372 |
1219 |
2045 |
50 |
800 |
230 |
4000 |
76 |
3 |
938 |
1800 |
1500 |
2634 |
50 |
960 |
300 |
7200 |
82 |
3-1/4 |
1020 |
1800 |
2000 |
3186 |
50 |
1100 |
320 |
10800 |
Remark: Wire rope at 90¡ãwrap on sheave and 360¡ãrotation of swivel head.
Bolt Mounted.
