CB436-2000 Cleat Fairlead Type B

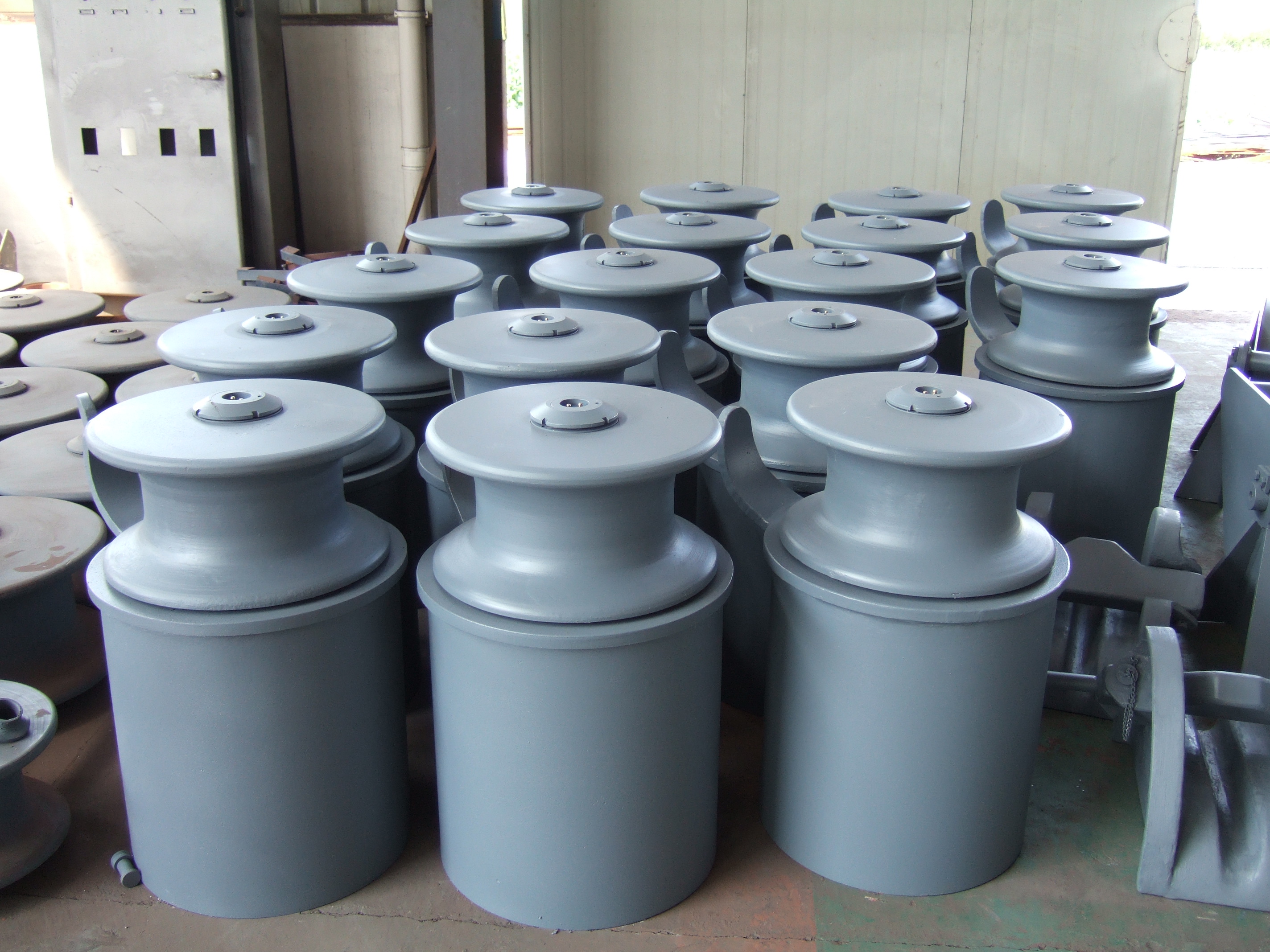

CB436-2000 Cleat Fairlead with Single Roller

CB*436-2000 cleat fairlead with single roller has two types: type A and type B. CB*436-2000 type A adopts the CB*58-83 fairlead roller. CB*436-2000 type B adopts GB/T10105-88 marine roller. CB*436-2000 fairlead is strictly produced in line with the quality standard. Its weld and surface is smooth and uniform. The fairlead roller is flexible to turn. The surface of roller is painted asphalt. All our fairleads get the certificate of quality. If you¡¯re interested in our fairlead, please feel free to contact us.

Specification:

Model Type: CB436-2000 Cleat Fairlead Type B

Material: Steel (GB712)

Standard: CB436-2000, GB/T10105-88(roller standard)

Roller No.: Single Roller

Roller Diameters: 150mm~450mm

Roller Weight: 24.8kg~310.0kg

Base Weight: 129.0kg~452.0kg

Certificate: CCS, ABS, BV, LR, NK, RINA

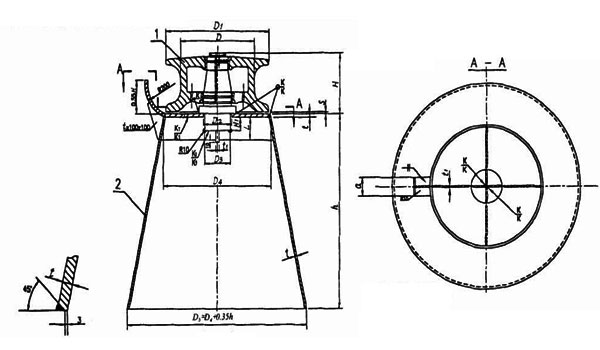

Drawing of CB436-2000 Cleat Fairlead Type B:

CB436-2000 Cleat Fairlead Type B

Unit:mm

Roller Dia.

D

Max. Dia. Of Applicable Ropes(For Reference)

Dimensions(mm)

Weight

kg

Synthetic Fiber Rope

Hemp Rope

Steel Wire (GB/T 8918) Tensile Strength 1570MPa

a

D1

D2

D3

D4

H

H1

L

S

t

t1

Fairlead Roller

Pedestal

6¡Á24

6¡Á37

150

32

45

16~18

14~16

60

240

90

85

264

154

30

75

5

12

8

24.8

129

200

40

55

22

20

+0

310

115

110

338

186

30

85

5

14

10

49.3

178

250

45

65

24

24

80

380

135

130

408

230

35

100

6

14

10

92

207

300

50

70

30

28

80

440

155

150

472

255

35

100

7

16

12

127

265

350

55

75

38

34

80

500

175

170

536

271

35

100

7

18

14

168

332

400

65

85

40~42

38~40

100

560

185

180

600

307

40

100

7

20

16

252.5

401.3

450

80

-

44

42~44

100

630

210

205

670

316

40

120

7

20

16

310

452

Note: the pedestal weight means the weight when the base height is h=1000mm.
