DIN81906 Roller with Pedestal

[Search Related Products]
DIN81906 Roller with Pedestal

Features of DIN81906 Roller with Pedestal

1. Cleat fairlead with single roller;

2. Roller adopts standard DIN81906,

cleat fairlead adopts standard DIN81907;

3. Two types: type A single roller with cylindrical pedestal,

type B single roller with conical pedestal;

4. Clear painting surface;

5. Standard or customized production;

6. Durable, long life;

7. Abrasion resistance;

8. Certificate of CCS,ABS etc.

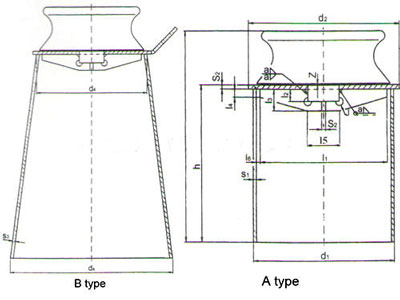

Drawing of DIN81906 Roller with Pedestal

DIN81906 Roller with Pedestal

unit: mm

Type d1¡ÁS1 d2 b d4
1 219¡Á12.5 255 60 -
2 273¡Á12.5 310 60 -
3 355¡Á12.5 395 60 -
5 457¡Á12.5 495 60 -
8 559¡Á12.5 595 80 560
12 660¡Á14.2 705 80 660
20 660¡Á17.5 705 100 660
32 813¡Á16 865 100 810
