Closed Type Two-Roller Fairlead

Closed Type Two-Roller Fairlead

Roller fairlead is usually located in the sides of a ship which consists of a number of rollers.It is used to guide ropes of marine ships. Roller fairlead can be divided into open type and closed type roller fairlead. JIS F 2014-1987 roller fairlead has the following types:open type fairleads with two rollers or three rollers; closed type fairleads with two rollers or three rollers. Each type is composed of rollers and a stand. If you¡¯re interested in our guide rollers, please feel free to contact us.

Specification:

Model Type: Closed Type Two-Roller Fairlead

Material: Cast Steel/ Cast Iron

Standard: CB*58-83, JIS F 2014-1987

Roller No.: 2 Rollers

Nominal Diameters:150mm~450mm

Certificate: CCS,ABS,BV,LR,NK,RINA

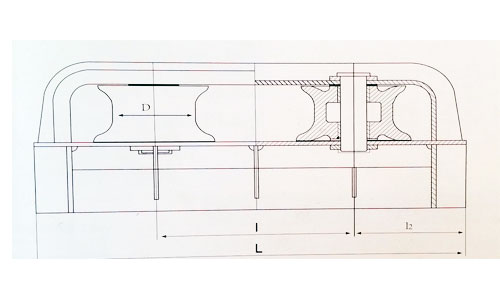

Drawing of Close Type Two-Roller Fairlead:

Closed Type Two-Roller Fairlead

Unit:mm

Nominal Dia.

D

L

l

l2

150

150

1020

420

300

200

200

1190

530

330

250

250

1430

640

395

300

300

1610

750

430

350

350

1890

860

515

400

400

2100

970

565

450

450

2360

1080

640
