JIS F 2014-1987 Fairlead Roller
[Search Related Products]
Features of JIS F 2014-1987 Fairlead Rollers
1. JIS F 2014-1987 production standard;
2. CB*58-83 2/3 rollers with stand;
3. Two types: open type and closed type;
4. Nominal diameters 150mm to 450mm;
5. High rust and corrosion resistance;
6. Polished and galvanized surface;
7. Cast steel/cast iron;
8. Several rollers can be used in group;
9. Approved by CCS, ABS etc.;
10. Provide customized fairlead for customer¡¯s specific requirement.

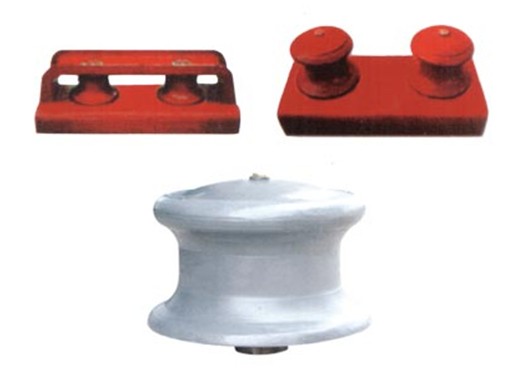

JIS F 2014-1987 Fairlead Roller

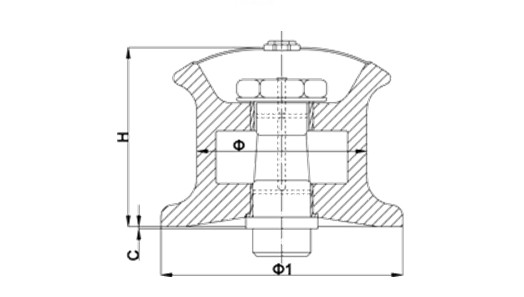

Drawing of JIS F 2014-87 Fairlead Roller
Nominal Dia (mm) |
Dimensions (mm) |
Weight (kg) |
SWL Tightwire Dia.(mm) |
|||
§¶ |
§¶1 |
H |
C |
|||
150 |
150 |
240 |
195 |
3 |
32.1 |
17 |
200 |
200 |
310 |
235 |
3 |
64.6 |
22.5 |
250 |
250 |
380 |
282 |
4 |
108 |
24 |
300 |
300 |
440 |
305 |
4 |
159 |
30 |
350 |
350 |
500 |
330 |
4 |
235 |
37.5 |
400 |
400 |
560 |
355 |
5 |
336 |
41 |
