GB T10105-88 Marine Roller

GB T10105-88 Marine Roller

Marine roller is an important ship mooring device that can change the direction of mooring ropes. It guides the mooring ropes to a certain place. GB/T10105-88 marine roller for fairlead can be casted steel or iron. Its color can be grey, black, red or any one as customer require. Our marine rollers get approved by professional quality inspection center. If you¡¯re interested in our marine rollers, please feel free to contact us.

Specification:

Model Type:GB T10105-88 Marine Roller

Material:Cast Steel/Iron

Roller Diameter:150mm~450mm

Weight:24.8kg~310.0kg

Standard:GB/T10105-88

Certificate:CCS,ABS,LR,BV,NK,RINA

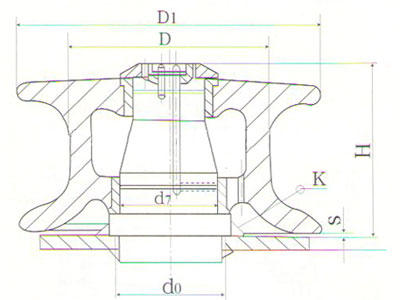

Drawing of GB/T10105-88 Marine Roller:

GB T10105-88 Marine Roller

Unit:mm

Diameter of Roller(D)

Max. Diameter of Applicable Rope

Size

Weight(kg)

Synthetic Fiber Rope

Hemp Rope

Steel(GB1102) Rope Stress Length 1550N/mm²

D1

d0

d7

H

s

t

k

6¡Á24

6¡Á37

150

32

45

17.0

15.0

240

90

79

154

5

12

9

24.8

200

40

55

22.5

19.5

310

115

99

186

5

14

10

49.3

250

45

65

24.0

24.0

380

135

119

230

6

14

10

92.0

300

50

70

30.0

28.0

440

155

129

255

7

16

12

127.0

350

55

75

37.5

34.5

500

175

149

271

7

18

13

168.0

400

65

85

41.0

39.0

560

185

159

307

7

20

14

252.5

450

80

-

44.5

43

630

210

178

316

7

20

14

310.0
