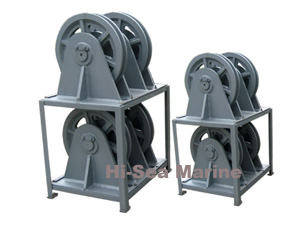

Vertical Lead Sheave

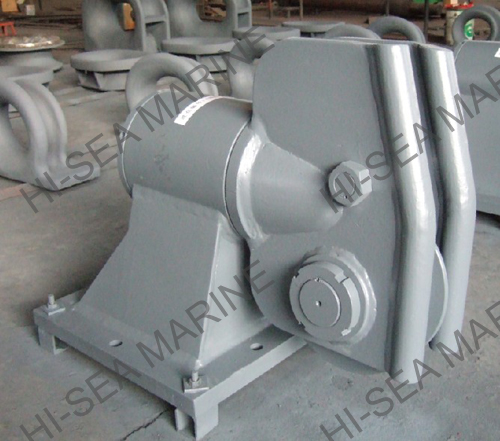

Swivel fairlead : fairlead for guiding the cable through and change direction or limit its export position , and reduce the friction between the cable and the hull , main Roller fairlead , cleat Roller fairlead , open-type roller guide cable unit , 360 กใ Swivel fairlead and so on.
Swivel fairlead , including bracket, master cylinder and the cable guide means of said main cylinder to be freely rotatable about its central axis disposed on the bracket manner , the main tubular body provided with a through hole along its central axis; guide cable device includes two outer plywood and cut two parallel set of pulley juxtaposed between plywood, plywood fixed vertically disposed in the front surface of the main cylinder ; using master cylinder and wheel so integrated design , compact structure, small space , can be easily applied to small vessels ; Meanwhile, the cable guide of the cylinder head can freely rotate around the main axis , so fairleads high flexibility to meet the needs of different orientations of the cable guide , greatly improving the fairlead speed , saving a lot of equipment and labor resources ; plywood front end casing, so that the cable smoother , avoiding the edge of steel for cable friction damage.

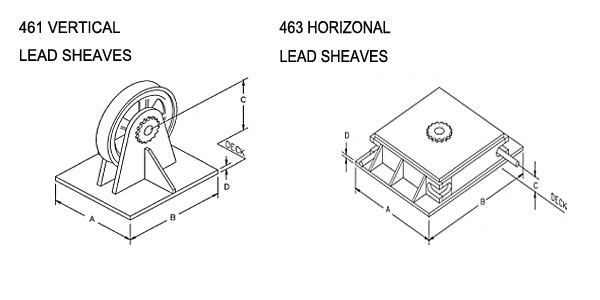

Drawing of 461,463 Vertical and Horizontal Lead Sheaves
Figure No. | Lead Sheave Stock No. | Sheave Diamerter (in.) | Stanard Each (ibs) | Weight Each (ibs) | Dimensions(in.) | |||
A | B | C | D | |||||
461-18 | 239753 | 18 | 7/8 | 500 | 12.00 | 20.00 | 11.00 | 1.50 |
461-24 | 131574 | 24 | 1-1/4 | 500 | 15.00 | 26.00 | 14.00 | 1.50 |
461-26 | 238120 | 26 | 1-1/2 | 660 | 16.00 | 28.00 | 15.00 | 1.50 |
461-36 | 148389 | 36 | 1-5/8 | 850 | 20.00 | 36.00 | 19.50 | 2.00 |
461-40 | 136285 | 40 | 2 | 2006 | 23.00 | 42.00 | 22.50 | 2.00 |
461-42 | 130753 | 42 | 2-1/2 | 4000 | 28.00 | 52.00 | 25.50 | 2.50 |
463-26 | 4440359 | 26 | 1 | 988 | 33.00 | 33.00 | 3.75 | 1.50 |
463-30 | 1404377 | 30 | 1-1/4 | 1225 | 37.00 | 37.00 | 3.50 | 1.50 |
463-36 | 146522 | 36 | 1-1/2 | 1900 | 43.00 | 43.00 | 3.50 | 1.50 |
463-42 | 1406525 | 42 | 1-3/4 | 2975 | 50.00 | 50.00 | 4.38 | 2.00 |
463-48 | 131583 | 48 | 2 | 3600 | 55.00 | 55.00 | 4.63 | 2.00 |
463-60 | 123164 | 60 | 2-1/2 | 6400 | 68.00 | 68.00 | 5.75 | 2.00 |
