Cleat Fairlead with Single Roller Type A
[Search Related Products]
Features of CB*436-2000 Single Roller Cleat Fairlead Type A
1. Adopt CB*58-83 fairlead roller;
2. Following the production standard CB*436-2000;
3. Nominal roller diameters 150mm to 400mm;
4. Applicable to steel wire, hemp wire, synthetic carbon fiber rope;
5. Rollers can be casted iron or steel;
6. The height of base determined by customers;
7. Red,gray, black etc. for customers¡¯ choice;
8. No any defects to influence the quality and performance;
9. Get approvals of quality inspection center such as CCS, ABS;
10. Production according to customers¡¯ special design.

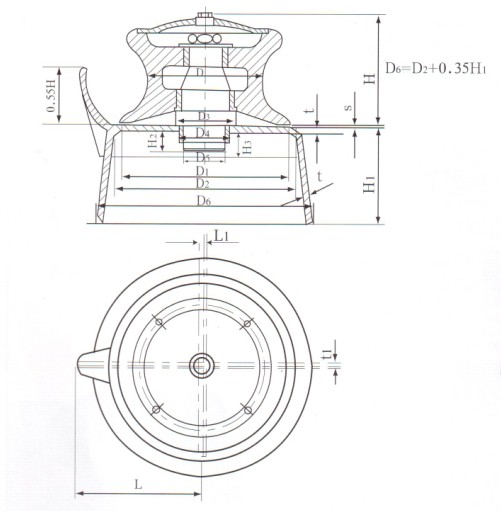

Drawing of CB*436-2000 Cleat Fairlead Type A:
D
(mm) |
Max Cable Diameter (mm) | Dimensions (mm) | Roller Weight (kg) |
Basement Weight (kg)
H1=100 |
|||||||||||||||||
Cable Tensile Strength 1550N/mm2 |
Hemp Rope
|
Synthetic Fiber Rope
|
D1 | D2 | D3 | D4 | D5 | L | H | H1 | H2 | H3 | S | t | t1 | HT | ZG | ||||
6¡Á24 | 6¡Á30 | 6¡Á37 | |||||||||||||||||||
150 | 17 | 17.5 | 15 | 45 | 32 | 240 | 270 | 90 | 71 | 60 | 245 | 211 |
As
Required |
40 | 75 | 3 | 12 | 8 | 32.1 | 33.8 | 129 |
200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 310 | 340 | 115 | 95 | 80 | 285 | 251 | 50 | 85 | 3 | 14 | 10 | 64.6 | 68 | 178 | |
250 | 24 | 26 | 24 | 65 | 45 | 380 | 410 | 140 | 107 | 90 | 323 | 298 | 60 | 100 | 4 | 14 | 10 | 108 | 114 | 207 | |
300 | 30 | 32.5 | 28 | 70 | 50 | 440 | 470 | 160 | 127 | 110 | 335 | 321 | 60 | 100 | 4 | 16 | 14 | 159 | 168 | 265 | |
350 | 37.5 | 39 | 34.5 | 75 | 55 | 500 | 530 | 180 | 144 | 125 | 390 | 346 | 65 | 100 | 4 | 18 | 14 | 235 | 248 | 332 | |
400 | 41 | 39 | 39 | 80 | 65 | 560 | 590 | 200 | 161 | 140 | 420 | 371 | 70 | 100 | 5 | 20 | 16 | 336 | 355 | 401 |

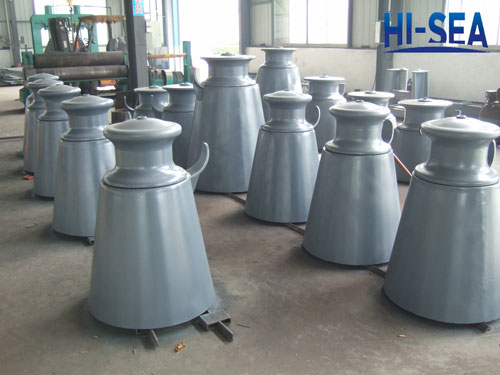

CB*436-2000 Cleat Fairlead
